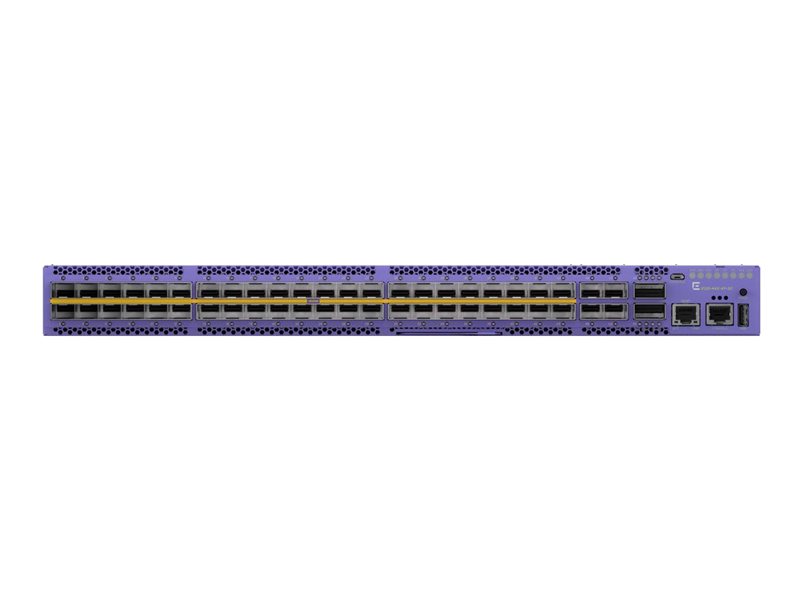

Switch - managed - 44 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 10/25 Gigabit SFP28 + 2 x 100 Gigabit QSFP28 - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Extreme Networks 5120-44X-4Y-2C - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 44 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 10/25 Gigabit SFP28 + 2 x 100 Gigabit QSFP28 |
| Performance | Aggregate switching bandwidth: 1480 Gbps ¦ Frame forward rate: 1101 Mpps |
| Capacity | Virtual interfaces (VLANs): 4094 ¦ ARP table (IPv4): 400 ¦ IPv4 routes: 64 ¦ Multicast (S,G,V): 150 ¦ IPv6 neighbor table entries: 200 ¦ IPv6 routes: 32 ¦ VLAN routing interfaces: 125 ¦ ACL entries (ingress): 1024 ¦ ACL entries (egress): 256 ¦ Policy profiles: 63 ¦ Unique permit/deny rules per switch: 184 |
| MAC Address Table Size | 16K entries |
| Remote Management Protocol | CLI, HTTP |
| Features | ZTP, hot swap fan tray, MACsec support, mode button |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.3 in x 17 in x 1.7 in |
| Weight | 13.43 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 44 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 10/25 Gigabit SFP28 + 2 x 100 Gigabit QSFP28 |
| Performance | Aggregate switching bandwidth: 1480 Gbps ¦ Frame forward rate: 1101 Mpps |
| Capacity | Virtual interfaces (VLANs): 4094 ¦ ARP table (IPv4): 400 ¦ IPv4 routes: 64 ¦ Multicast (S,G,V): 150 ¦ IPv6 neighbor table entries: 200 ¦ IPv6 routes: 32 ¦ VLAN routing interfaces: 125 ¦ ACL entries (ingress): 1024 ¦ ACL entries (egress): 256 ¦ Policy profiles: 63 ¦ Unique permit/deny rules per switch: 184 |
| MAC Address Table Size | 16K entries |
| Max Units In A Stack | 8 |
| Remote Management Protocol | CLI, HTTP |
| Authentication Method | RADIUS |
| Features | ZTP, hot swap fan tray, MACsec support, mode button |
| Status Indicators | System |
| Expansion / Connectivity | |
| Interfaces | 44 x 100/1000/10G SFP+ ¦ 4 x 1/10/25GBase-X SFP28 ¦ 2 x 100GBase-X QSFP28 stacking ¦ 1 x console RJ-45 ¦ 1 x micro-USB Type B console ¦ 1 x 10/100/1000 Base-T RJ-45 management ¦ 1 x USB Type A management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | EN/ETSI 300 019-2-1 v2.1.2, ETSI EN 300 019-2-2 V2.1.2, ETSI EN 300 019-2-3 V2.1.2, EN/ETSI 300 753 (1997-10), ASTM D3580, 2011/65/EU, 2012/19/EU, Directive 1907/2006/EU, China RoHS SJ/T 11363-2006, Taiwan RoHS CNS 15663 (2013.7), UL 60950-1, UL/CUL 62368-1, FCC CFR21 Part 1040.10, CDRH, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, EN 62368-1, EN 60825-1, 2014/35/EU, IEC 60950-1 (CB Certificate and CB Test Report), IEC 62368-1, FCC CFR 47 Part 15 Class A, AS/NZS 60950-1, EN 55035, EN 55032 Class A, EN55024, EN 55011, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 300 386, 2014/30/EU, CISPR 32 Class A, AS/NZS CISPR 32, CISPR 24 Class A, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC 61000-4-6, IEC/EN 61000-4-11, VCCI Class A, ACMA RCM, CCC, KCC, EAC, NRCS, BSMI, ANATEL, NOM, RoHS, WEEE, REACH |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 0 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 17 in |
| Height | 1.7 in |
| Weight | 13.43 lbs |
