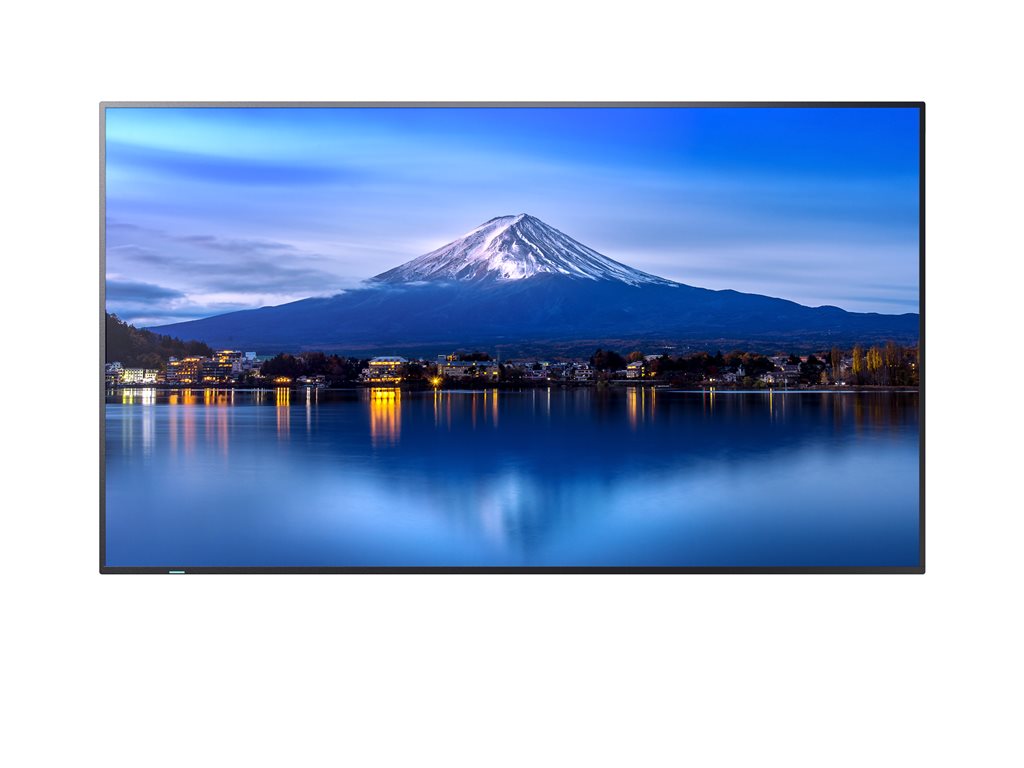

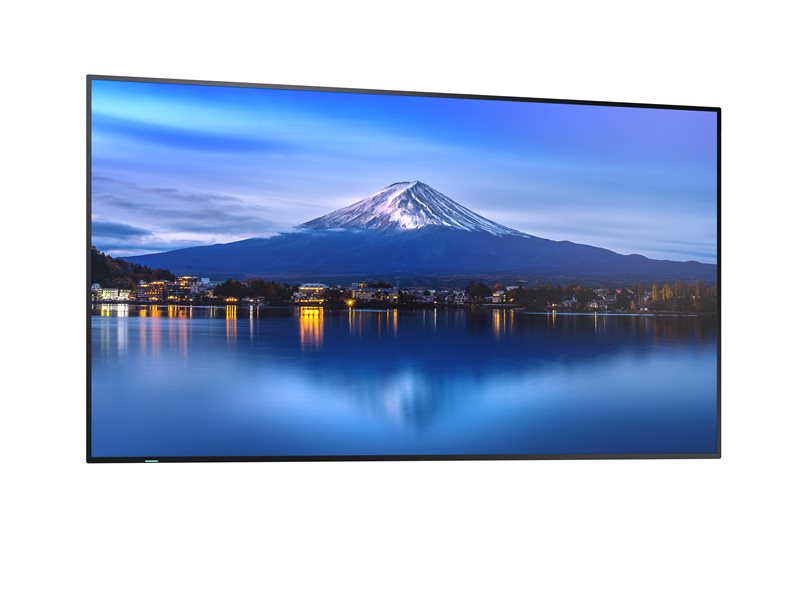

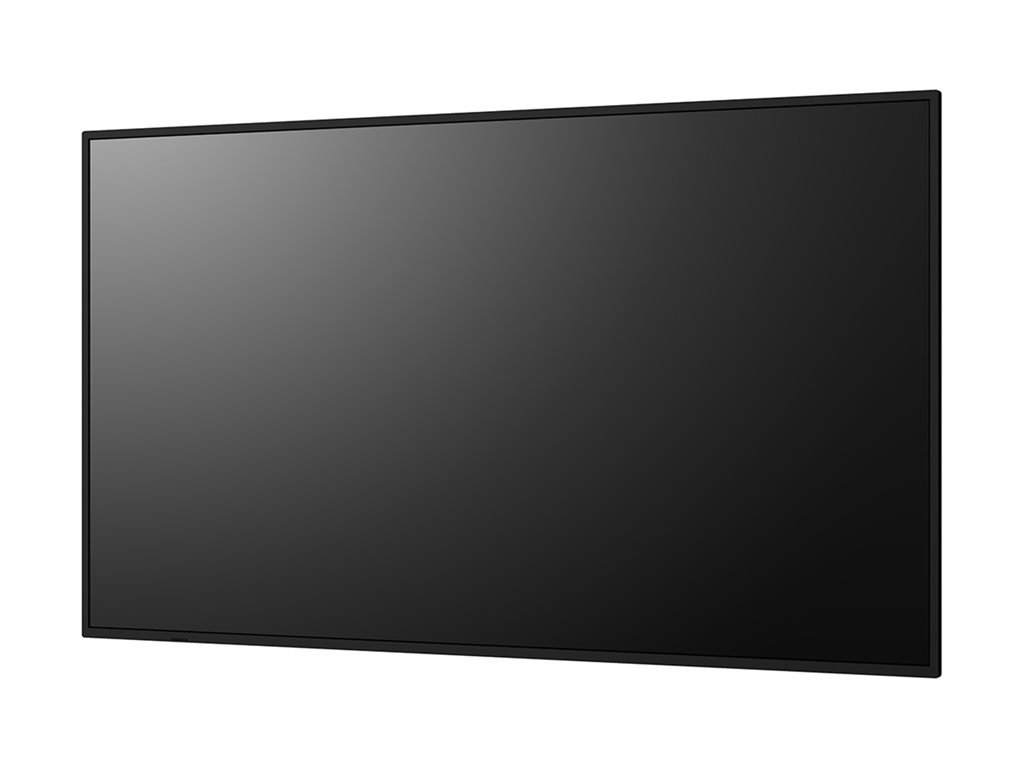

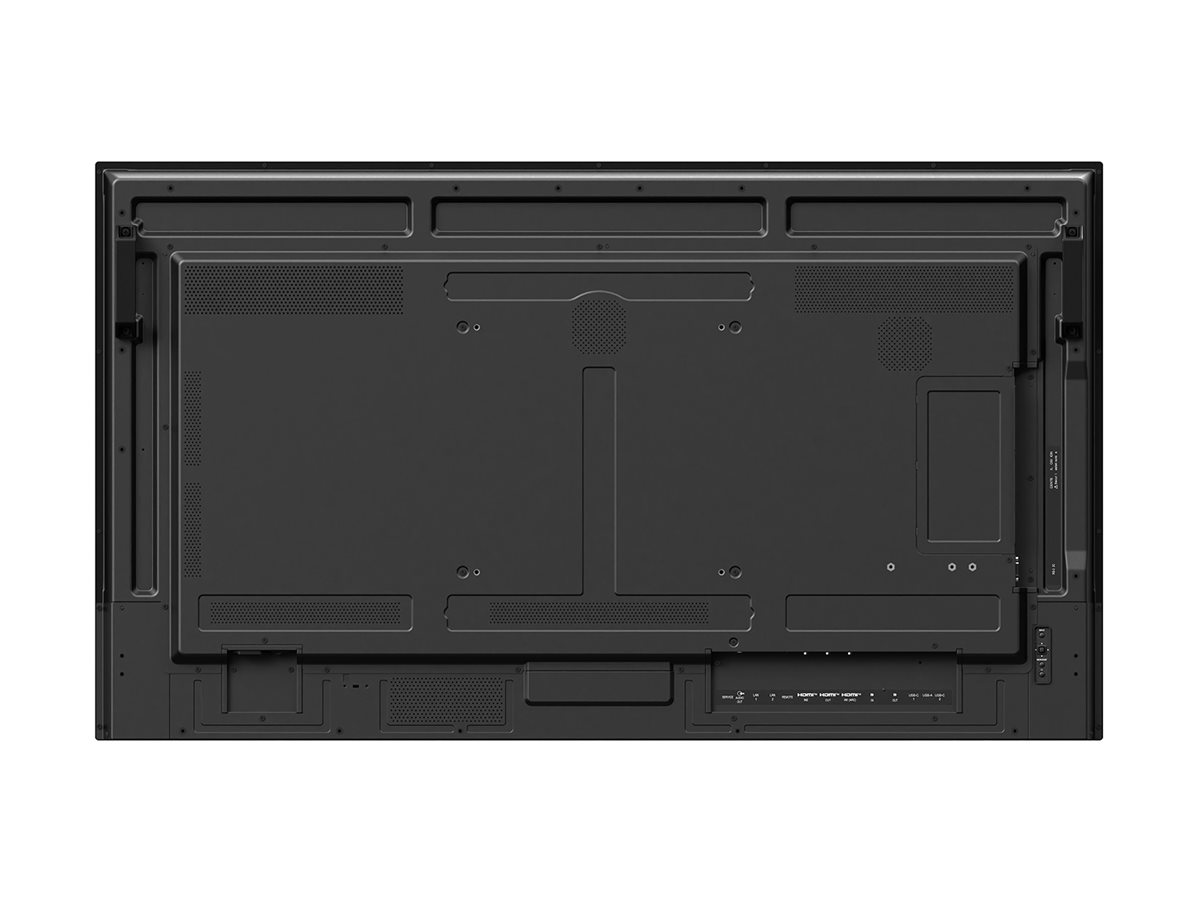

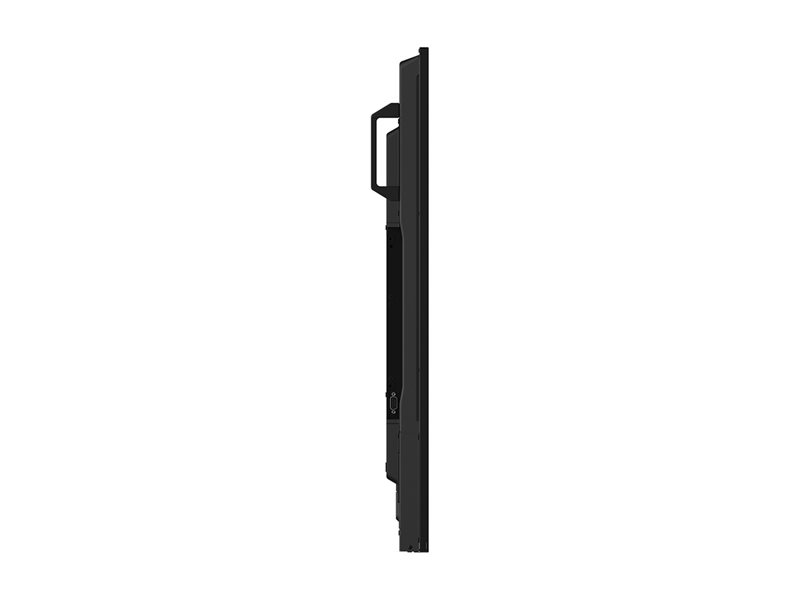

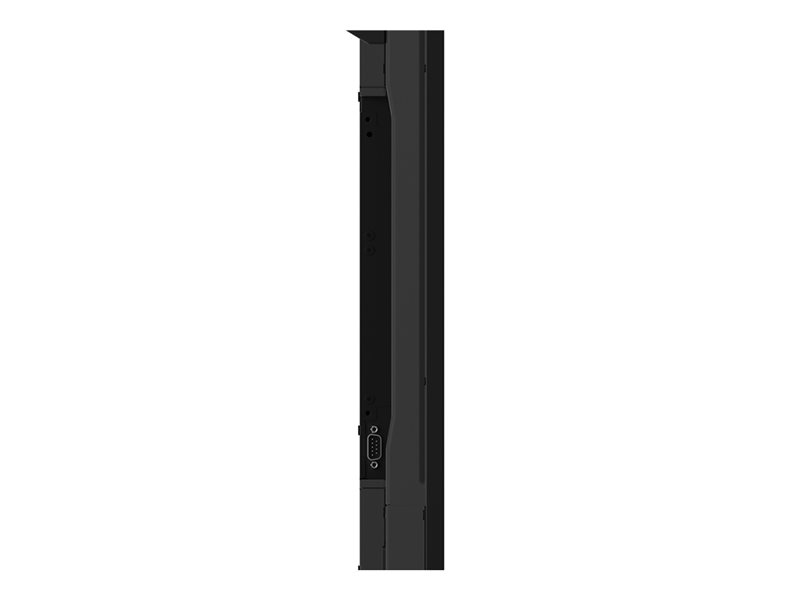

55" Diagonal Class (54.6" viewable) - P6 Series LED-backlit LCD display - digital signage - 4K UHD (2160p) 3840 x 2160 - HDR - Direct LED - black
| Main Specifications | |
|---|---|
| Product Description | Sharp MultiSync PN-P556 P6 Series - 55" Class (54.6" viewable) LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1926060 |
| Diagonal Class | 55" |
| Diagonal Size | 54.6" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 2 ports |
| Connectivity | LAN |
| PC Interface | DisplayPort, USB-C |
| Technology | IPS |
| LCD Backlight Technology | Direct LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Q-SYS Verified Plugin, Crestron Connected Certified, metal enclosure |
| Picture Enhancements | DCI 92% Color Gamut |
| Speaker System | 2 speakers |
| Platform | Crestron, XiO Cloud, AMX |
| USB | 3 ports |
| Included Accessories | Remote control, power cable |
| Voltage | AC 100-240 V (50/60 Hz) |
| Energy Class | Class G |
| Power Consumption Operational | 115 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) | 48.6 in x 2.3 in x 27.9 in |
| Weight | 45.19 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1926060 |
| Energy Class | Class G |
| Energy Class (HDR) | Class G |
| Power Consumption Operational | 115 watt |
| Power Consumption SDR (On mode) | 100 kWh/1000h |
| Power Consumption HDR (On mode) | 100 kWh/1000h |
| Diagonal Class | 55" |
| Diagonal Size | 54.6" |
| Commercial Use | Yes - digital signage |
| Series | P6 Series |
| HDR Capable | Yes |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS), temperature sensor |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort, USB-C |

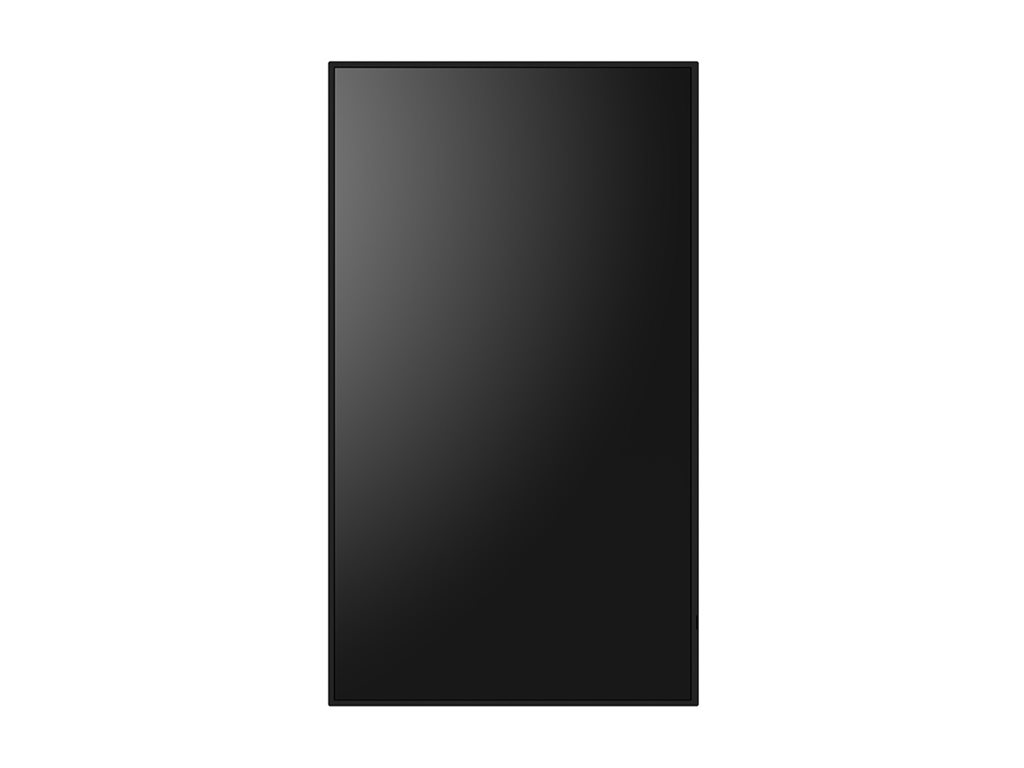

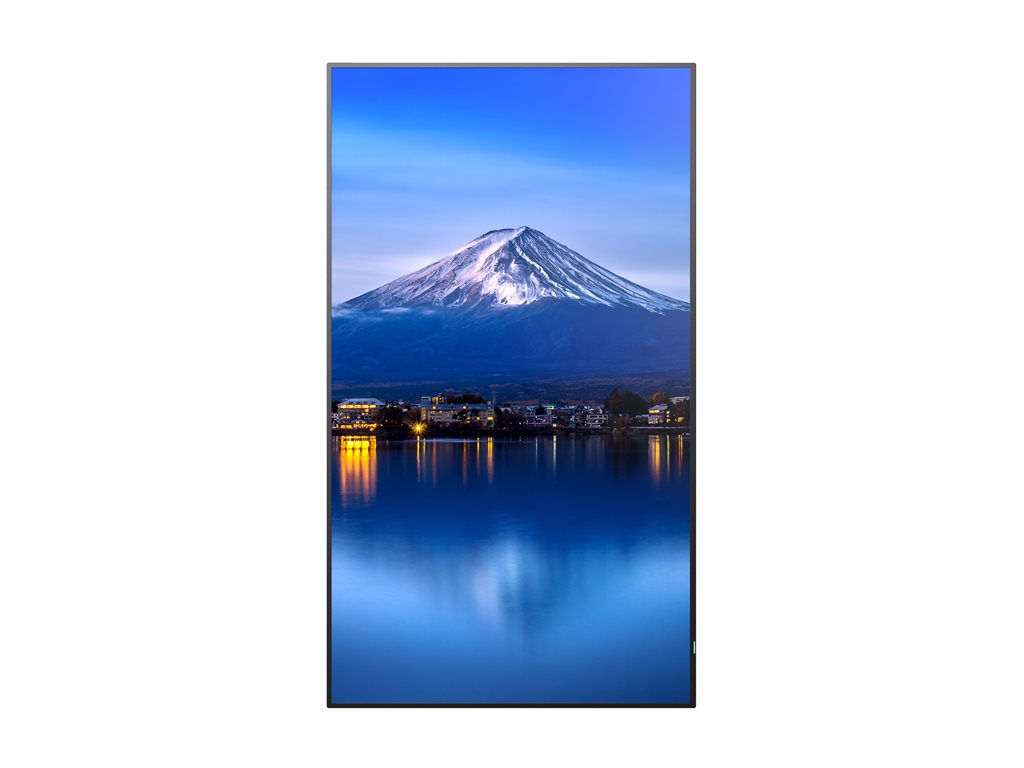

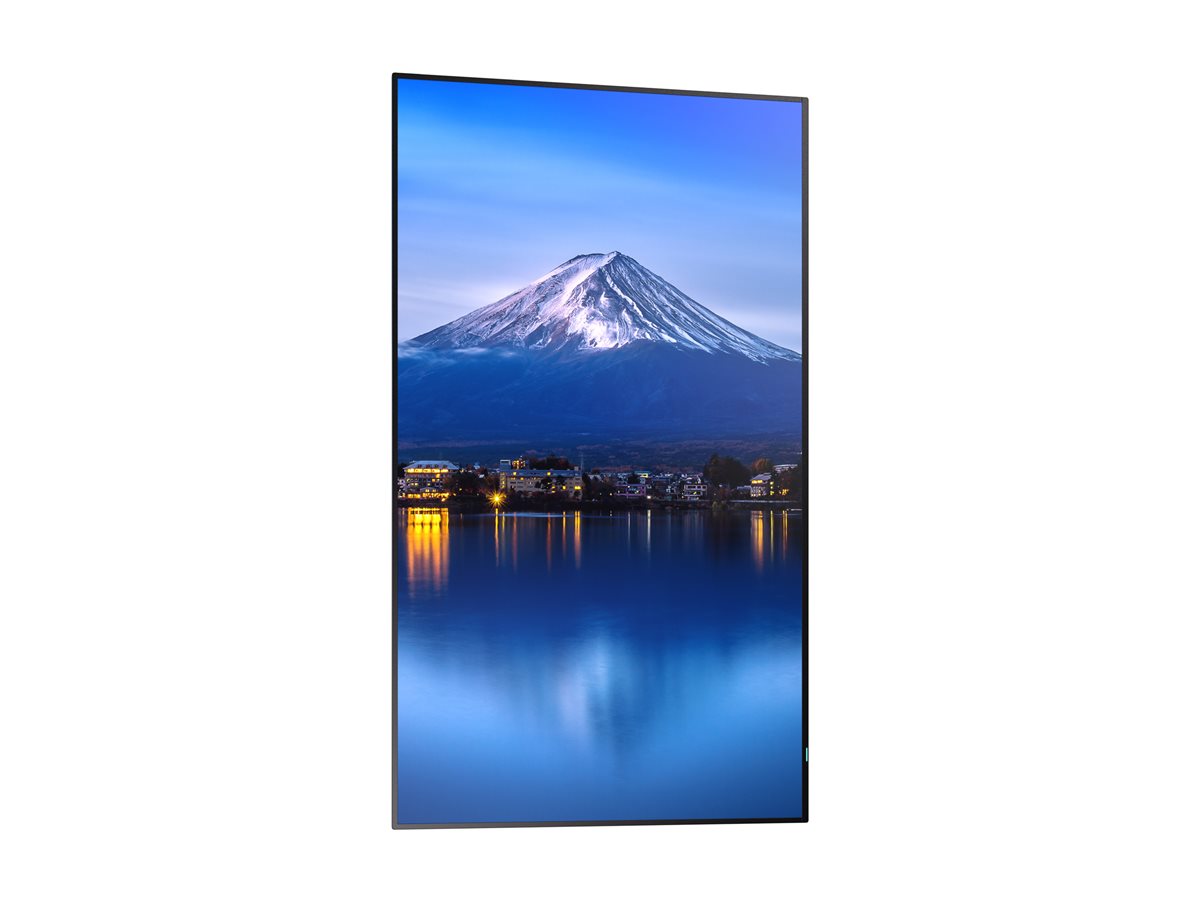

| Modes | Landscape mode, portrait mode, Face-down Mode, Face-up Mode |
| Picture Enhancements | DCI 92% Color Gamut |
| Width | 48.6 in |
| Depth | 2.3 in |
| Height | 27.9 in |
| Weight | 45.19 lbs |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power cable |
| Cables Included | HDMI cable |
| Compliant Standards | HDCP 2.2, CEC, IP5X front, IP2X rear, EMC Class B, FCC Class B certified, REACH, RoHS, UKCA, UL, C-UL, CSA, ISO 9241-307 Class 1, UL 94-5VB, IEEE 802.1x, VESA DPMS, VESA FDMI |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Display | |
| LCD Display Technology | IPS |
| Pixel Pitch | 0.315 mm |
| Color Support | 1073000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED |
| Coating | 25% haze |
| Image Contrast Ratio | 8000:1 |
| Brightness | 700 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Commercial Features | Q-SYS Verified Plugin, Crestron Connected Certified, metal enclosure |
| Operation Hours / Days | 24 / 7 |
| Additional Features | Cisco Certified, SpectraView Engine support, NaViSet Administrator 2, 10-bit support, picture-in-picture (PIP), picture-by-picture (PBP), factory calibrated gamma, factory calibrated intensity, factory calibrated RGB, factory calibrated uniformity, factory calibrated white point, Intel SDM Ready, DICOM support, Scheduler, disable HW buttons, disable IR functionality, emergency notification, AMX NetLinx support |
| Connections | |

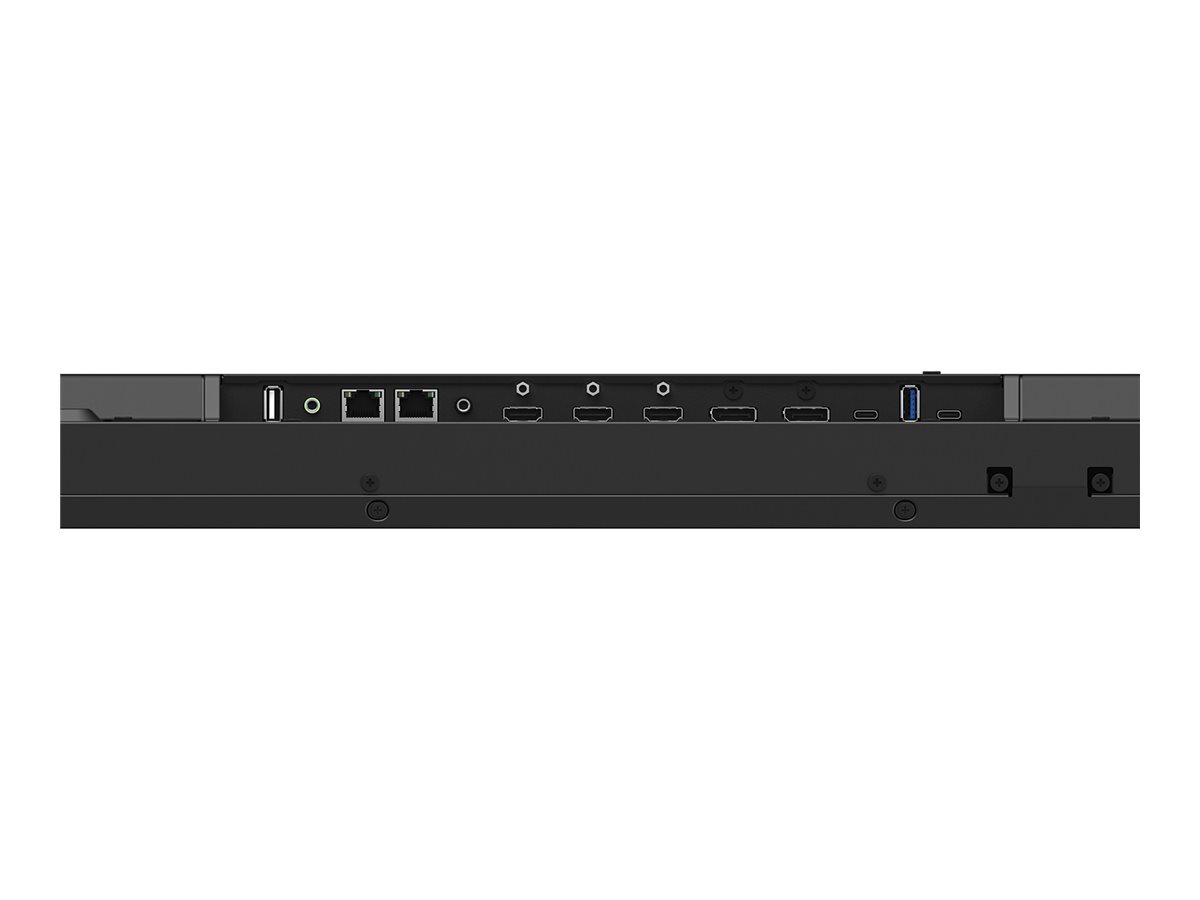

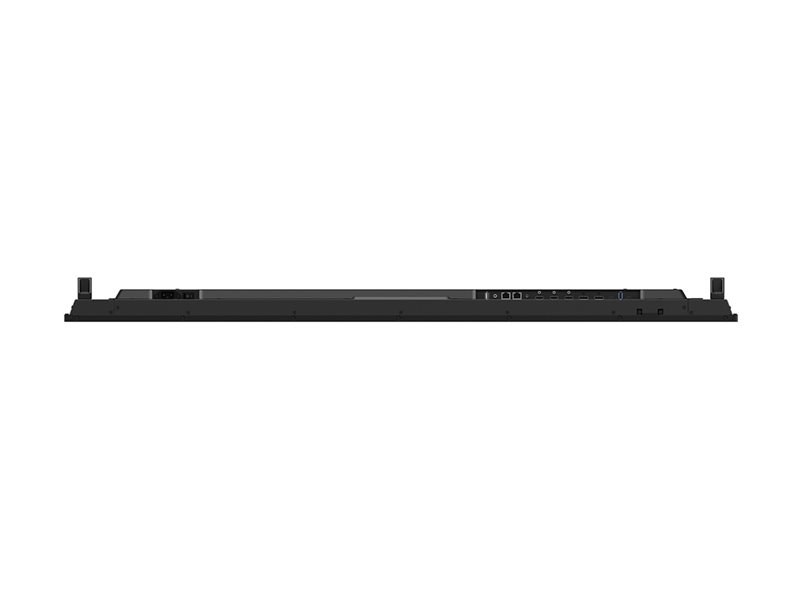

| Connector Type | 2 x HDMI input ¦ HDMI output ¦ DisplayPort input ¦ DisplayPort output ¦ USB 3.2 ¦ Service ¦ USB-C 3.2 Gen 1 with DisplayPort 1.2, 65W Power Delivery ¦ USB-C 3.2 Gen 1 downstream ¦ Audio line-out ¦ 2 x LAN ¦ RS-232C ¦ Remote control |
| Remote Control | |
| Type | Remote control |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Battery Included Qty | 2 |
| Battery Required Qty | 2 |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Additional Features | Audio Return Channel (ARC) |
| Speakers | 2 x main channel speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 54.7 in |
| Depth (Shipping) | 6.3 in |
| Height (Shipping) | 33.5 in |
| Weight (Shipping) | 59.52 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Fast Ethernet |
| Stands & Mounts | |
| Flat Panel Mount Interface | 300 x 300 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 3 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | Crestron, XiO Cloud, AMX |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
