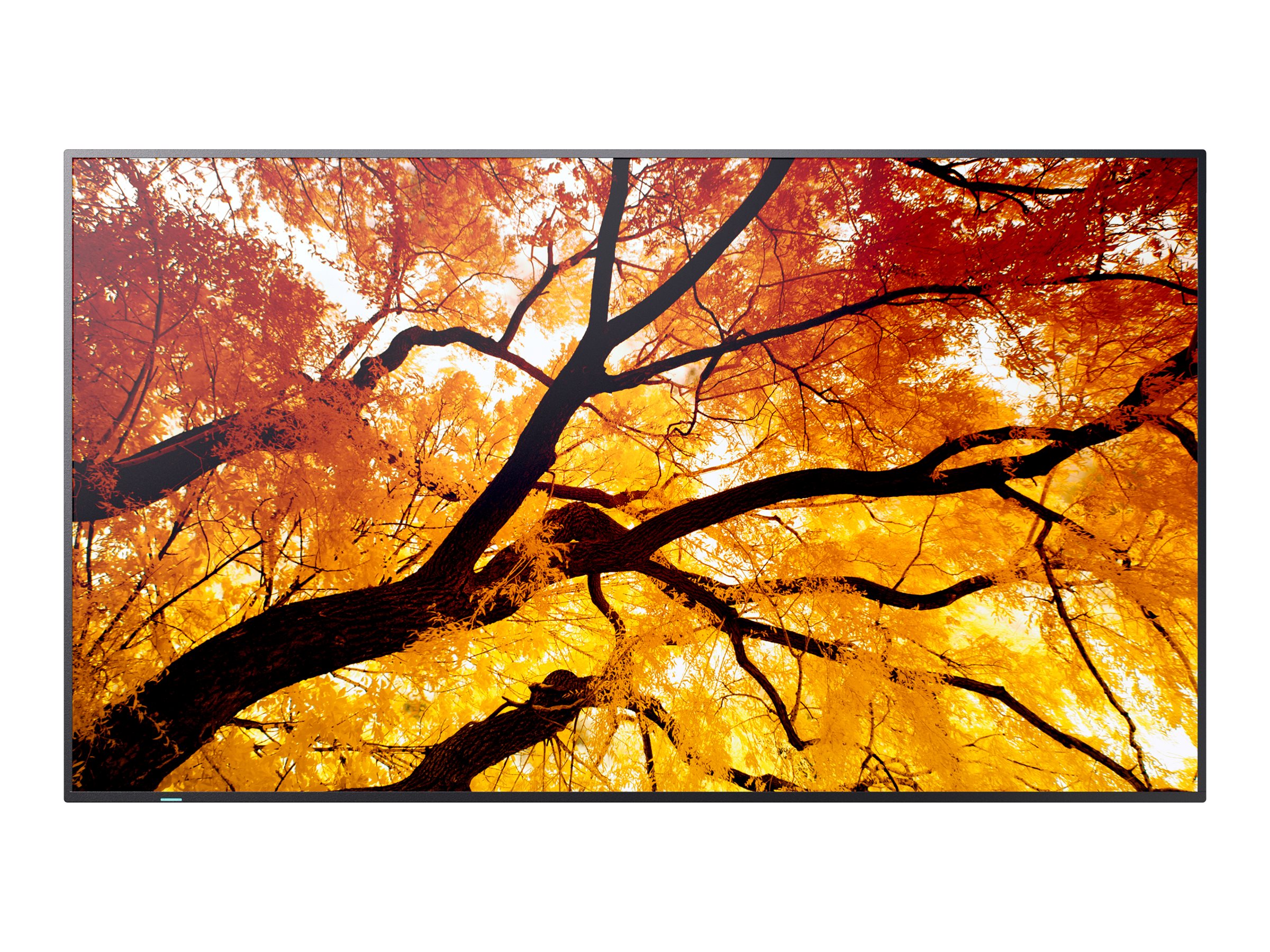

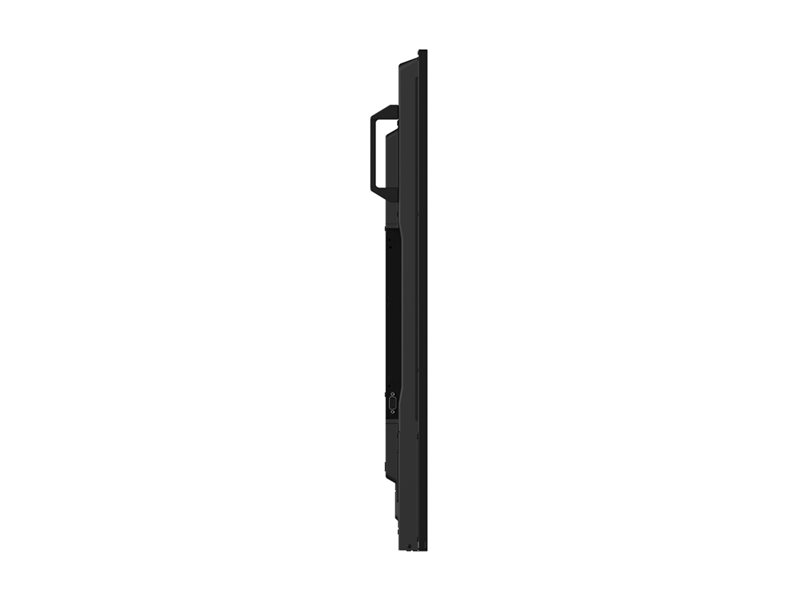

55" Diagonal Class M2 Series LED-backlit LCD display - digital signage - 4K UHD (2160p) 3840 x 2160 - Direct LED - black
| Main Specifications | |
|---|---|
| Product Description | Sharp MultiSync PN-M552 M2 Series - 55" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1926028 |
| EU Data Act | Https://www.sharpconsumer.com/data-access-request/ |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 2 ports |
| Connectivity | LAN |
| PC Interface | DisplayPort, USB-C |
| Technology | IPS |
| LCD Backlight Technology | Direct LED local dimming |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Crestron Connected V2 support, SNMP support, Cisco Video Conference System compatibility |
| Picture Enhancements | 72% Color Gamut NTSC, DICOM Simulated Gamma |
| Speaker System | 2 speakers |
| Platform | AMX, XiO Cloud |
| USB | 3 ports |
| Included Accessories | Remote control |
| Voltage | AC 100-240 V (50/60 Hz) |
| Energy Class | Class G |
| Power Consumption Operational | 105 watt |
| Power Consumption Stand by | 0.5 watt |
| Dimensions (WxDxH) - without stand | 48.6 in x 2.3 in x 27.9 in |
| Weight | 45.19 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/1926028 |
| Energy Class | Class G |
| Energy Class (HDR) | Class G |
| EU Data Act | Https://www.sharpconsumer.com/data-access-request/ |
| Power Consumption Operational | 105 watt |
| Power Consumption SDR (On mode) | 103 kWh/1000h |
| Power Consumption HDR (On mode) | 101 kWh/1000h |
| Diagonal Class | 55" |
| Commercial Use | Yes - digital signage |
| Series | M2 Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS), temperature sensor |
| Video Interface | HDMI, USB-C |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort, USB-C |
| Modes | Portrait mode, landscape mode |
| Picture Enhancements | 72% Color Gamut NTSC, DICOM Simulated Gamma |
| Dimensions | Without stand |
| Width | 48.6 in |
| Depth | 2.3 in |
| Height | 27.9 in |
| Weight | 45.19 lbs |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - backlight - 3 years |
| Miscellaneous | |
| Cables Included | HDMI cable |
| Compliant Standards | CEC, IEEE 802.1x, EMC Class B, FCC Class B certified, REACH, RoHS, UKCA, UL/cUL, CSA, ISO 9241-307, UL 94-5VB, IP5X, IP2X |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% |
| Display | |
| LCD Display Technology | IPS |
| Pixel Pitch | 0.315 mm |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED - local dimming |
| Coating | 25% haze |
| Image Contrast Ratio | 8000:1 |
| Brightness | 550 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Commercial Features | Crestron Connected V2 support, SNMP support, Cisco Video Conference System compatibility |
| Operation Hours / Days | 24 / 7 |
| Additional Features | 10-bit support, picture by picture (no tuner), picture in picture (no tuner), Intel SDM Ready, Raspberry Pi Compute Module Compatible, PJLink, NaViSet Administrator 2, Cisco Certified, Crestron Connected Compatible, SpectraView Engine support |
| Connections | |
| Connector Type | 2 x HDMI input ¦ DisplayPort input ¦ USB ¦ LAN input ¦ IR receiver ¦ RS-232C ¦ USB-C (data only) ¦ USB 2.0 (for software update only) ¦ USB 3.2 Gen 1 downstream ¦ USB downstream ¦ HDMI output ¦ DisplayPort output ¦ Audio line-out ¦ LAN output |
| Remote Control | |
| Type | Remote control |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Battery Included Qty | 2 |
| Battery Required Qty | 2 |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 20 watt |
| Additional Features | Audio Return Channel (ARC) |
| Speakers | 2 x main channel speaker - 10 watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 54.7 in |
| Depth (Shipping) | 6.3 in |
| Height (Shipping) | 33.5 in |
| Weight (Shipping) | 59.52 lbs |
| Network & Internet Multimedia | |
| Functionality | WEB browsing |
| Connectivity | LAN |
| LAN Protocol | Fast Ethernet |
| Stands & Mounts | |
| Stand | Optional |
| Flat Panel Mount Interface | 300 x 300 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 3 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | AMX, XiO Cloud |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
