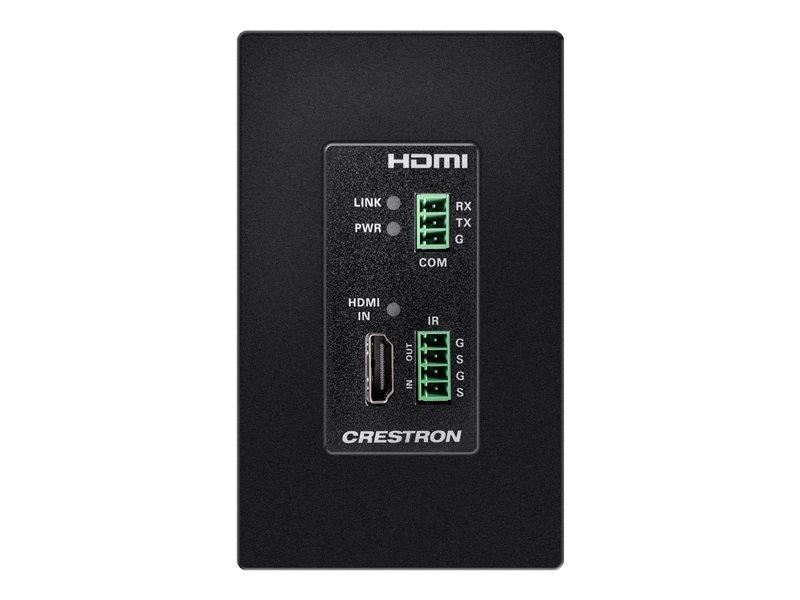

Video/audio/infrared/serial extender - transmitter - CATx, DM Lite - up to 230 ft
| Main Specifications | |
|---|---|
| Product Description | Crestron DM Lite HD-TXC-4KZ-101-1G-B - video/audio/infrared/serial extender - CATx, DM Lite |
| Device Type | Video/audio/infrared/serial extender (transmitter) |
| Form Factor | In-wall mountable |
| Data Link Protocol | CATx, DM Lite |
| Max Transfer Distance | 230 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 1.7 in x 2.2 in x 4.1 in |
| Weight | 5.54 oz |
| General | |
| Device Type | Video/audio/infrared/serial extender (transmitter) |
| Form Factor | In-wall mountable |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x IR - terminal block ¦ 1 x DM Lite (output (pass-through)) - RJ-45 female ¦ 1 x RS-232 - terminal block ¦ 1 x HDMI - Type A female |
| Miscellaneous | |
| Included Accessories | Wall plate |
| Compliant Standards | FCC Part 15 B, IC |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | CATx, DM Lite |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Link, power, DM Lite, HDMI input |
| Features | HDR10+ support, Dolby Vision HDR support, HDR10 support, EDID Pass-Through, CEC passthrough, 4K60 8-bit 4:4:4 compatible, chassis ground lug, metal housing, Deep Color support, Dolby Atmos support, Dolby Digital EX support, Dolby Digital Plus support, Dolby Digital support, Dolby TrueHD support, DTS support, DTS:X support, DTS-HD Master Audio support, DTS-HD support, LPCM 7.1 support |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 2.2 in |
| Height | 4.1 in |
| Weight | 5.54 oz |
