Barebone - ultra compact mini PC 1 x N-series N100 / up to 3.4 GHz - RAM 0 GB - UHD Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet
| Main Specifications | |
|---|---|

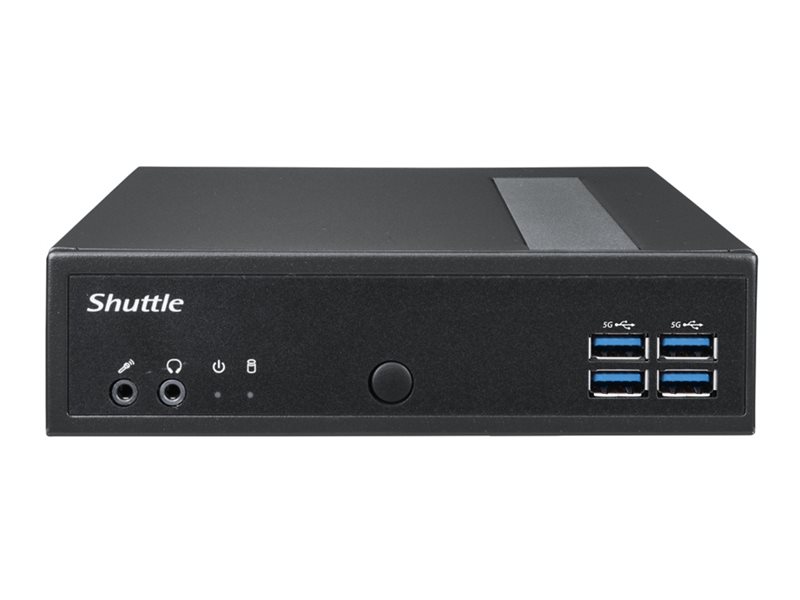

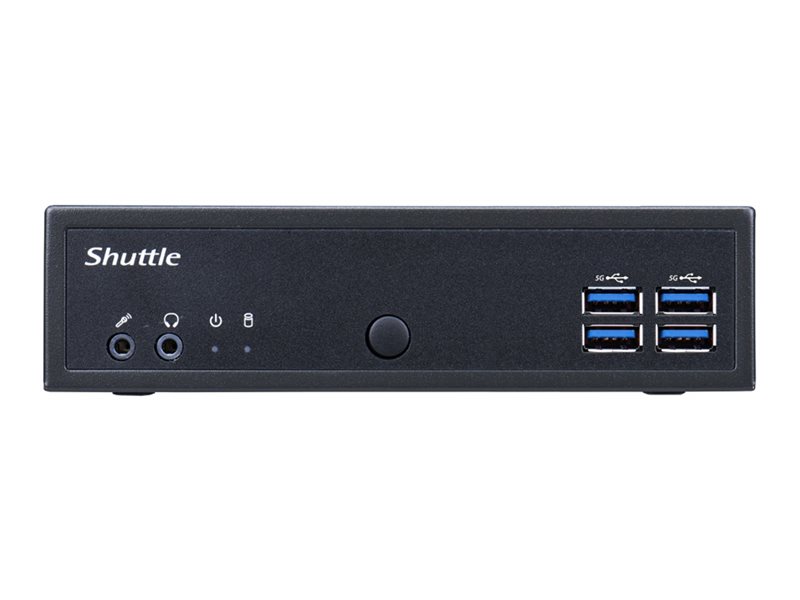

| Product Description | Shuttle XPC slim DL30N - ultra compact mini PC N-series N100 - 0 GB - no HDD |
| Type | PC barebone - ultra compact mini PC |
| Processor | 1 N-series N100 (up to 3.4 GHz, (Quad-Core) |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | 6 MB L3 cache |
| Cache Per Processor | 6 MB |
| RAM | 0 GB (installed) / 16 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Audio Output | Stereo |
| Networking | 1GbE, 2.5GbE |
| Power | (50/60 Hz) |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 7.5 in x 6.5 in x 1.7 in |
| General | |
| Type | PC barebone |
| Product Form Factor | Ultra compact mini PC |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 1 x microphone (1 in front) ¦ 1 x headphones (1 in front) ¦ 1 x DisplayPort (1 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x VGA (1 rear) ¦ 2 x LAN (2.5Gigabit Ethernet) (2 rear) ¦ 8 x USB 3.2 Gen 1 (4 front, 4 rear) ¦ 2 x serial (2 rear) |
| Miscellaneous | |
| Included Accessories | VESA mounting kit, screw set |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | BSMI, CB, cTUVus, EMI, FCC, RCM, VCCI, UCKA |
| RAM | |
| Installed Size | 0 GB (installed) / 16 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 1 (total) / 1 (empty) |
| Networking | |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I226-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Storage Controller | |
| Type | 1 x SATA |
| Cache Memory | |
| Installed Size | L3 cache - 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Max Monitors Supported | 3 |
| Audio Output | |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 6.5 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | N-series N100 |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Smart Cache |
