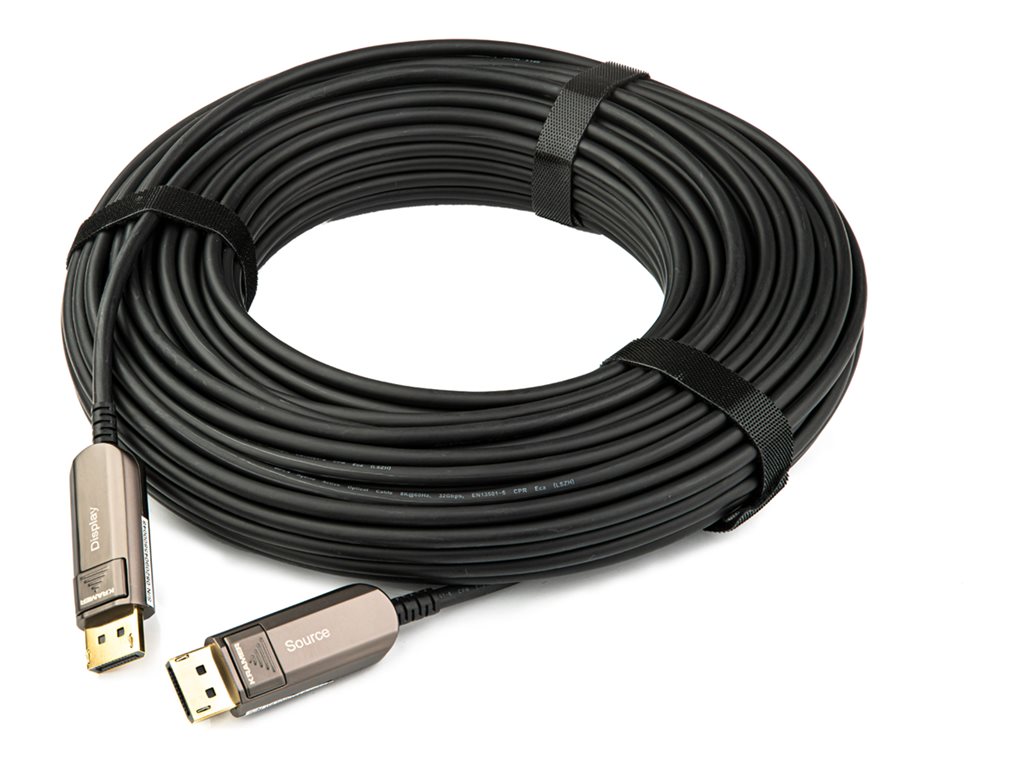

DisplayPort cable - DisplayPort (M) to DisplayPort (M) - DisplayPort 1.4 - 20 m - halogen-free, plenum, Active Optical Cable (AOC), 8K60Hz support - black
| Main Specifications | |
|---|---|
| Product Description | Kramer CP-AOCDP/UF - DisplayPort cable - DisplayPort to DisplayPort - 20 m |
| Type | DisplayPort cable |
| Technology | Hybrid copper/fiber optic |
| Features | Halogen-free, plenum, Active Optical Cable (AOC), 8K60Hz support, Low Smoke Zero Halogen (LSZH), HDCP compliant, DPCP compliant, HBR3 support, 32.4 Gbps data rate, Display Stream Compression (DSC), 3D support, EDID support |
| Cable Length | 20 m |
| Connector | 20 pin DisplayPort - male |
| Connector (Second End) | 20 pin DisplayPort - male |
| Compliant Standards | DisplayPort 1.4 |
| Color | Black |
| General | |
| Type | DisplayPort cable |
| Technology | Hybrid copper/fiber optic |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 26/28/24 |
| Plated Connector | Gold |
| Features | Halogen-free, plenum, Active Optical Cable (AOC), 8K60Hz support, Low Smoke Zero Halogen (LSZH), HDCP compliant, DPCP compliant, HBR3 support, 32.4 Gbps data rate, Display Stream Compression (DSC), 3D support, EDID support |
| Cable Length | 20 m |
| Outside Diameter | 0.19 in |
| Color | Black |
| Miscellaneous | |
| Compliant Standards | DisplayPort 1.4, FCC, RoHS 2011/65/EU, EN 60332-1-2, HDCP 2.2, HDCP 1.4, EN 50399 |
| Connectivity | |
| Connector | 20 pin DisplayPort - male |
| Connector (Second End) | 20 pin DisplayPort - male |
