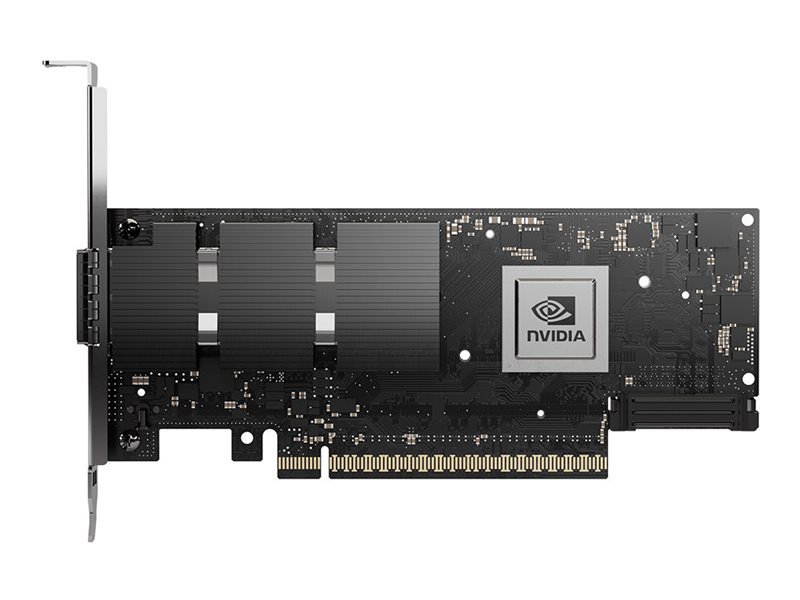

Network adapter - PCIe 5.0 x16 - 400Gb Infiniband OSFP x 1
| Main Specifications | |
|---|---|
| Product Description | NVIDIA ConnectX-7 NDR400 - network adapter - PCIe 5.0 x16 - 400Gb Infiniband OSFP x 1 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 5.0 x16 |
| PCI Specification Revision | PCIe 5.0 |
| Ports | 400Gb Infiniband OSFP x 1 |
| Data Link Protocol | 400 Gigabit InfiniBand |
| Data Transfer Rate | 400 Gbps |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 5.0 x16 |
| PCI Specification Revision | PCIe 5.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 400Gb Infiniband - OSFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | CB, cTUVus, FCC, VCCI, ICES, RCM, KC, RoHS |
| Networking | |
| Ports | 400Gb Infiniband OSFP x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 400 Gigabit InfiniBand |
| Data Transfer Rate | 400 Gbps |
| Features | TPH, ACS, ATS, AER, DPC, MSI-X, PASID, PXE support, SR-IOV, UEFI support, RoCE, NRZ, DCT, XRC transport, ODP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 90% RH |
