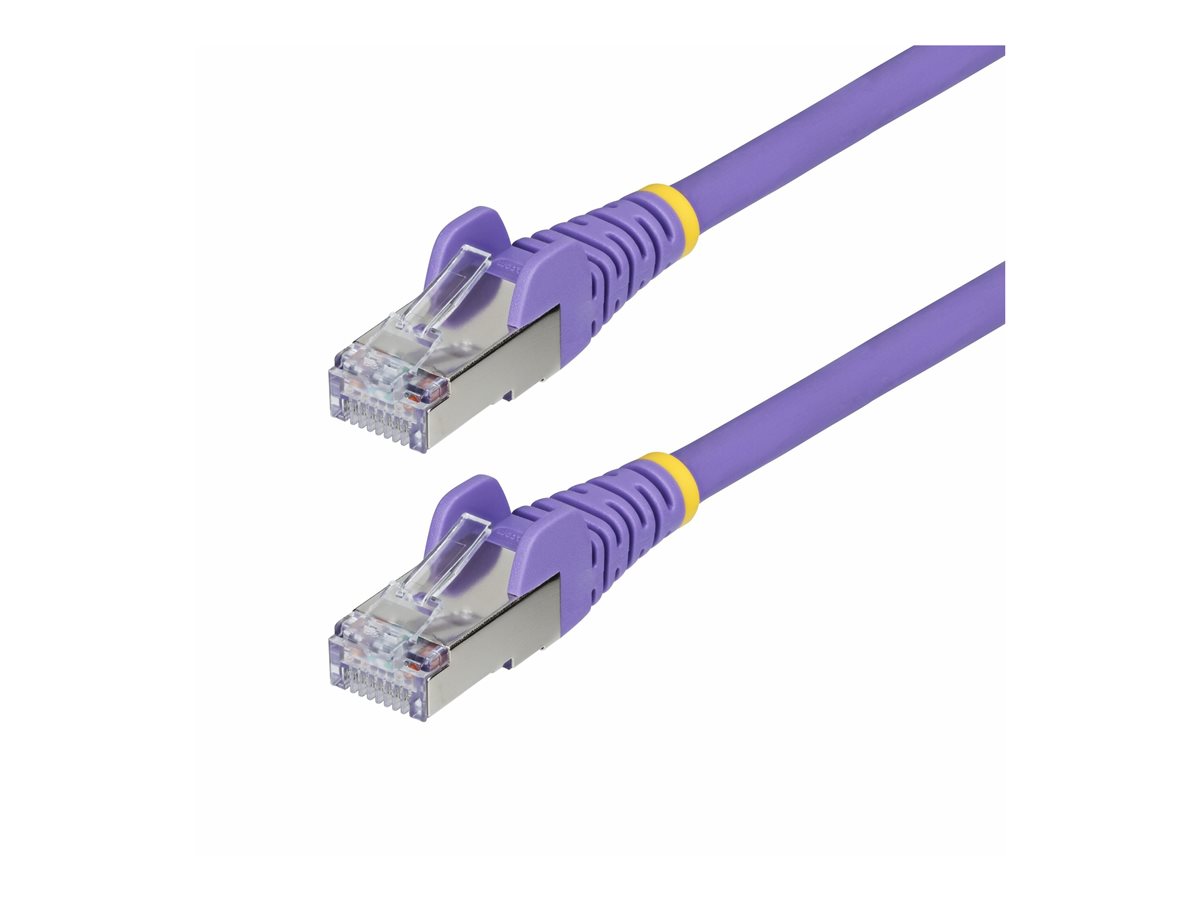

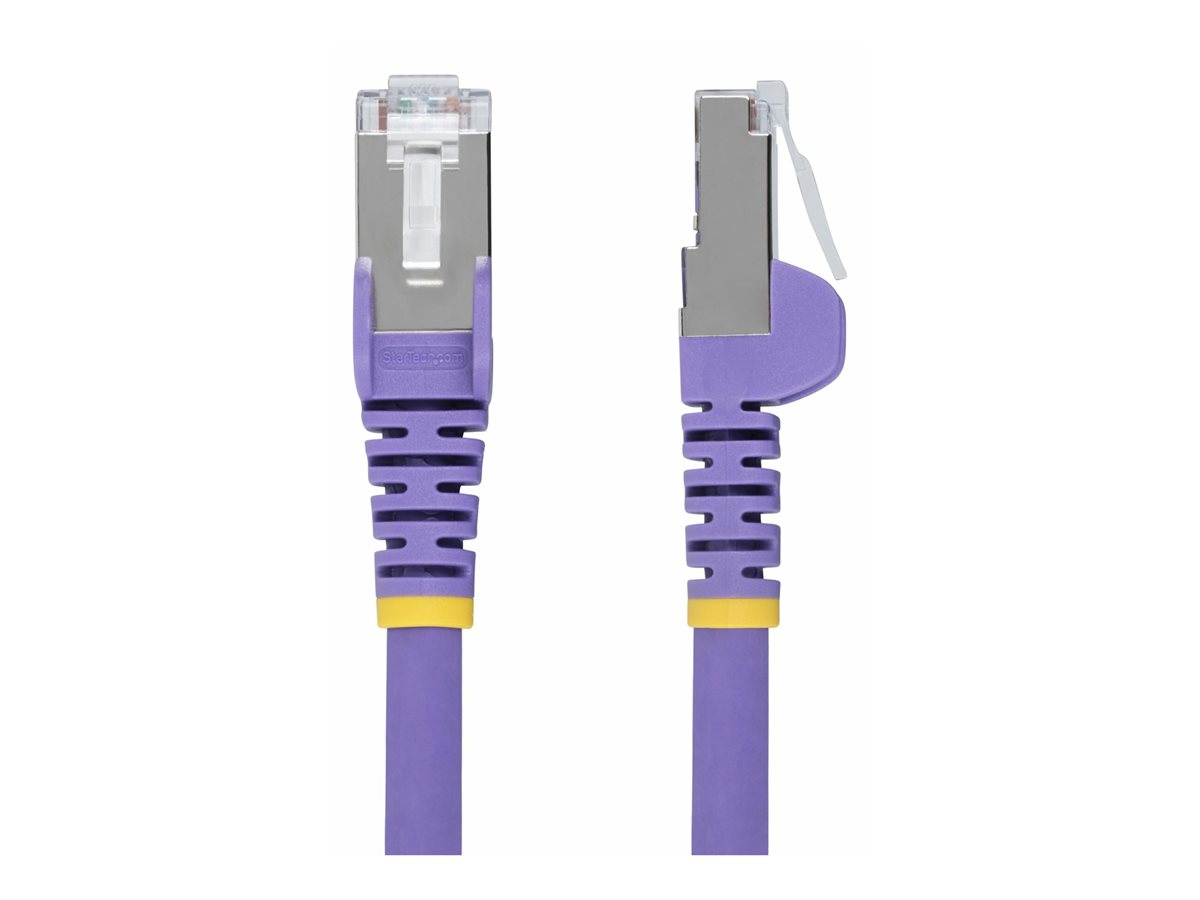

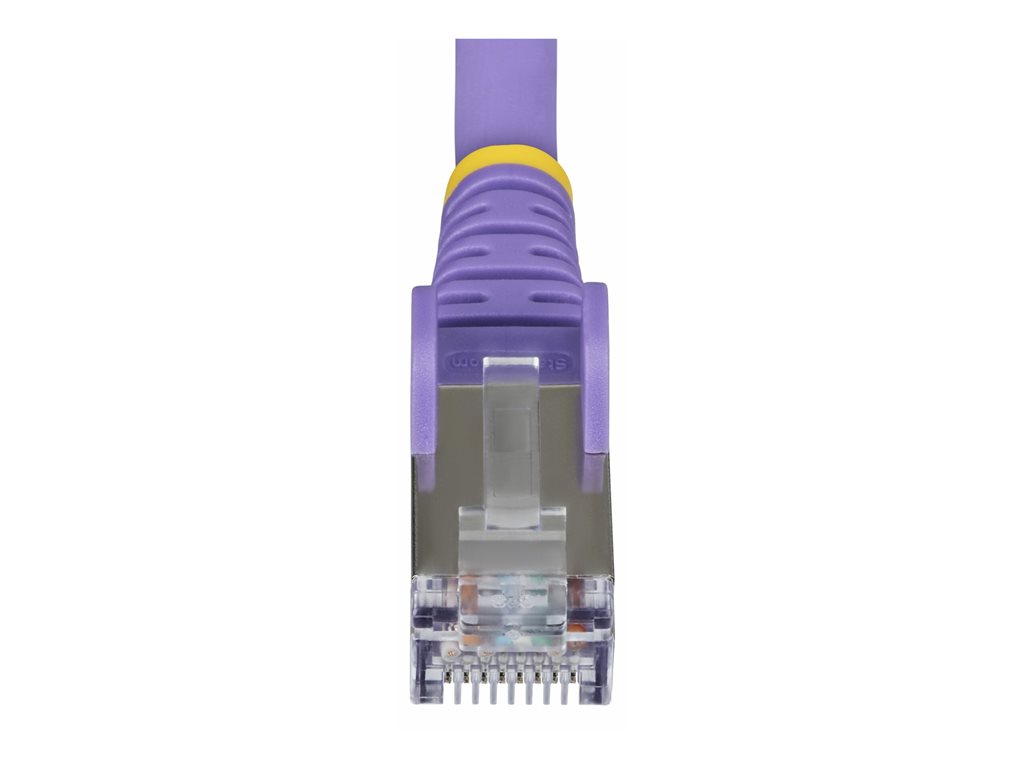

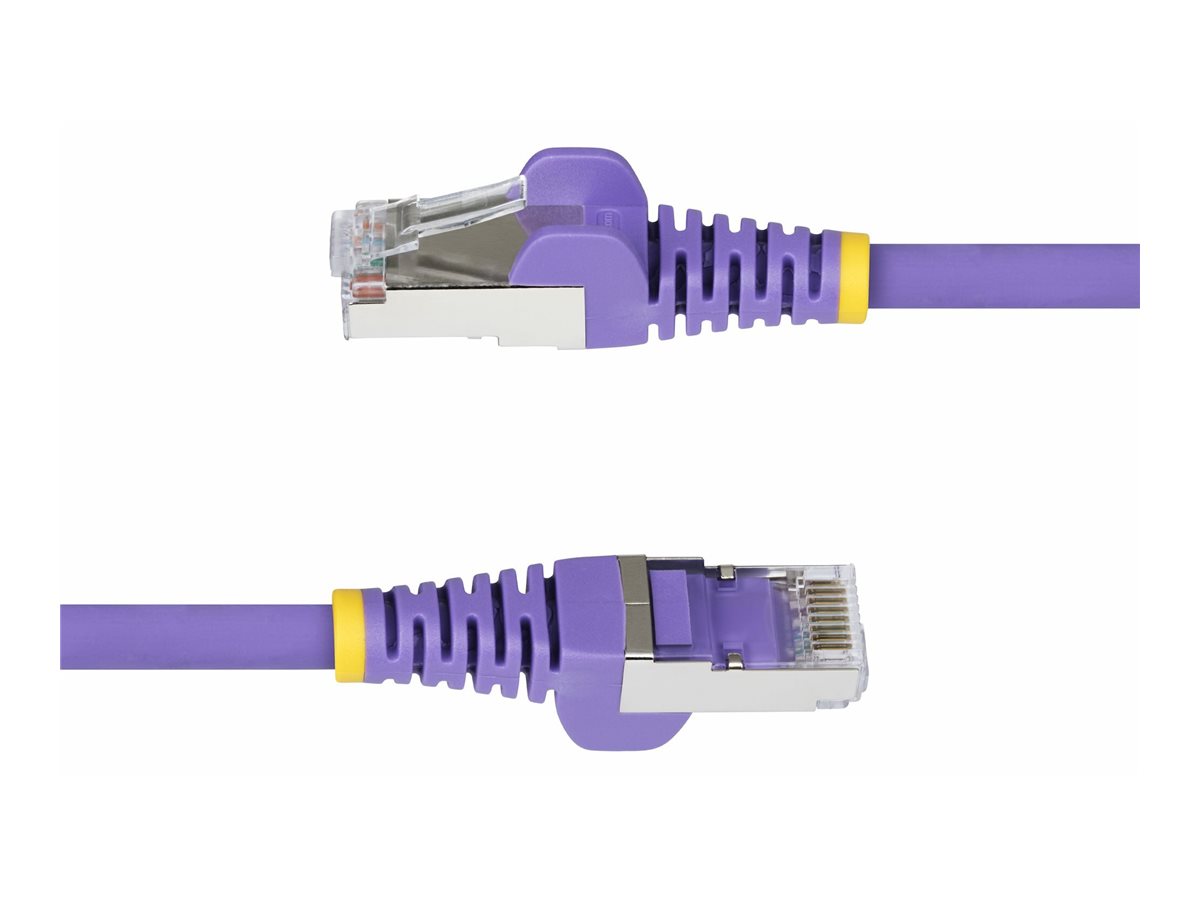

Patch cable - RJ-45 (M) to RJ-45 (M) - 7.6 m - 0.2 in - S/FTP - CAT 6a - IEEE 802.3bt - halogen-free, passive, snagless, stranded - purple
| Main Specifications | |
|---|---|
| Product Description | Startech 25ft Purple CAT6a Ethernet Cable, Snagless RJ45, 10GbE, 100W PoE++, S/FTP, LSZH, 27AWG Pure Bare Copper Wire, 500MHz, Shielded Network Patch Cord w/Strain Reliefs, ETL Verified - patch cable - 7.6 m - purple |
| Type | Patch cable - CAT 6a - IEEE 802.3bt |
| Technology | S/FTP |
| Shielding Material | Aluminum mylar foil with braid |
| Wires per Cable | 8 wires |
| Features | Halogen-free, passive cable, snagless, stranded, minimized Near-End Crosstalk (NEXT), bare copper conductors, reduced Return Loss (RL), EMI protection, 100W PoE++ support |
| Cable Length | 7.6 m |
| Diameter | 0.2 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Purple |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Patch cable - CAT 6a - IEEE 802.3bt |
| Technology | S/FTP |
| Shielding Material | Aluminum mylar foil with braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 27 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Features | Halogen-free, passive cable, snagless, stranded, minimized Near-End Crosstalk (NEXT), bare copper conductors, reduced Return Loss (RL), EMI protection, 100W PoE++ support |
| Cable Length | 7.6 m |
| Diameter | 0.2 in |
| Color | Purple |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, ETL, ANSI/TIA-568.2-D, PoE++ - up to 500 MHz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.1 in |
| Shipping Depth | 7.9 in |
| Shipping Height | 1.6 in |
| Shipping Weight | 9.52 oz |
