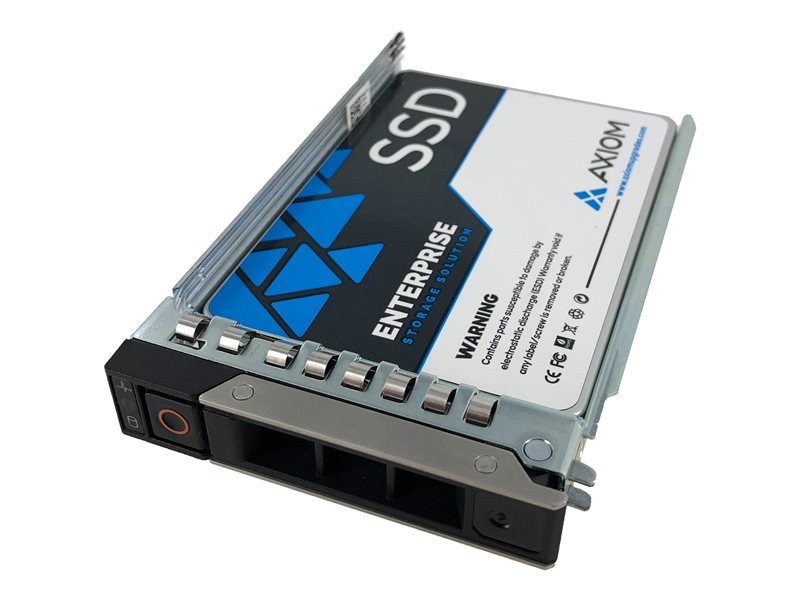

SSD - Enterprise Pro - 1.92 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - 256-bit AES - for Dell PowerEdge R640, R7525, R760xs, R7615, T560
| Main Specifications | |
|---|---|
| Product Description | Axiom EP750 Series - SSD - Enterprise Pro - 1.92 TB - U.2 PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - hot-swap |
| Capacity | 1.92 TB |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Drive Class | Enterprise Pro |
| Features | Advanced ECC Engine, V-NAND Technology |
| Manufacturer Warranty | 5-year warranty |
| Designed For | Dell PowerEdge R640, R7525, R760xs, R7615, T560 |
| General | |
| Device Type | Solid state drive - hot-swap |
| Capacity | 1.92 TB |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Features | Advanced ECC Engine, V-NAND Technology |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Consumption | 13.5 Watt (active) ¦ 3.5 Watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| SSD Endurance | 3504 TB |
| Drive Class | Enterprise Pro |
| Internal Data Rate | 6800 MBps (read) / 2700 MBps (write) |
| 4KB Random Read | 850000 IOPS |
| 4KB Random Write | 130000 IOPS |
| Reliability | |
| MTBF | 2,000,000 hours |
| Compatibility Information | |
| Designed For | Dell PowerEdge R640, R7525, R760xs, R7615, T560 |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
