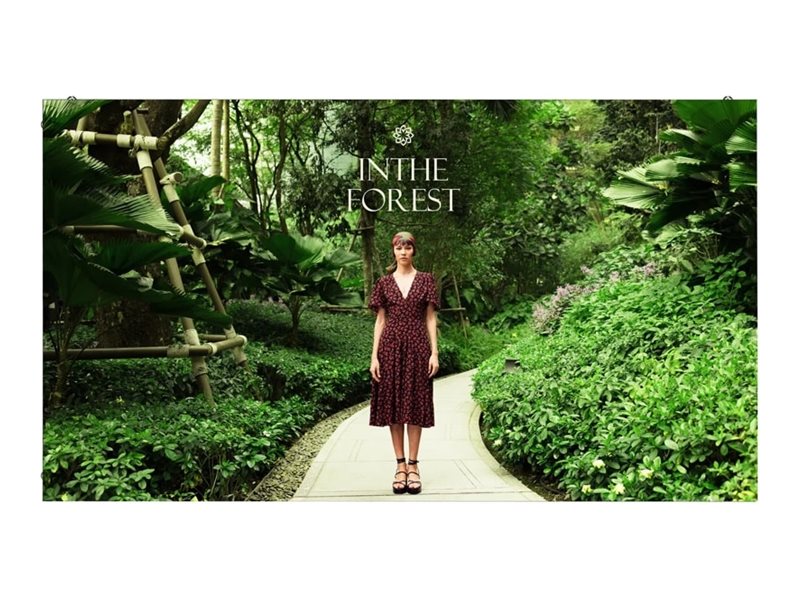

LSCC Ultra Slim Series LED display unit - digital signage 120 x 135 (LED unit) / 120 x 135 (cabinet) per unit - Single SMD - HDR
| Main Specifications | |
|---|---|
| Product Description | LG LSCC025-CZF LSCC Ultra Slim Series LED display unit - for digital signage |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| HDR Format | HDR10 |
| HDR Technology | HDR10 Pro |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate, 50 Hz Frame Rate, 3840 Hz Refresh Rate |
| TV Tuner | No tuner |
| Commercial Features | Curved installation supported |
| Video Wall Display Unit | Single SMD - 120 x 135 (LED unit) / 120 x 135 (cabinet) - 1.1 sq.ft - die-casting aluminum |
| Voltage | AC 100-240 V |
| Dimensions (WxDxH) - display unit | 11.8 in 13.3 in |
| Weight | 1.23 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| Series | LSCC Ultra Slim Series |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | HDR10 Pro |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Design | Flexible design |
| Dimensions | Display unit |
| Width | 11.8 in |
| Height | 13.3 in |
| Weight | 1.23 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS, IP30, REACH, EMC Class A, FCC, EN 13501-1, BS 476 Part 7 Class 1 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V |
| Video Wall Display Unit Power Consumption (Max) | 45 W |
| Video Wall Display Unit Power Consumption (Typical) | 15 W |
| Video Wall Power Consumption (Max) | 444 W/m² |
| Heat Generation Details | Cabinet - max - 1517 BTU/m² ¦ Cabinet - typical - 51 BTU/h ¦ Cabinet - max - 154 BTU/h |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 80% RH |
| Display | |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate, 50 Hz Frame Rate, 3840 Hz Refresh Rate |
| Color Temperature | 3500-9000K |
| Image Contrast Ratio | 5000:1 |
| Brightness | 800 cd/m² |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Commercial Features | Curved installation supported |
| Additional Features | 14-bit Processing, 97% brightness uniformity |
| Video Wall Display Unit | |
| Pixel Pitch | 2.5 mm |
| Pixel Density | 160000 pixels/m² |
| LED Type | Single SMD |
| Resolution | 120 x 135 (LED unit) / 120 x 135 (cabinet) |
| Area | 1.1 sq.ft |
| LED Lifetime | 100000 hours |
| Maintenance | Front |
| Modules Configuration (Per Cabinet) | 1x1 |
| Cabinet Frame Material | Die-casting aluminum |
