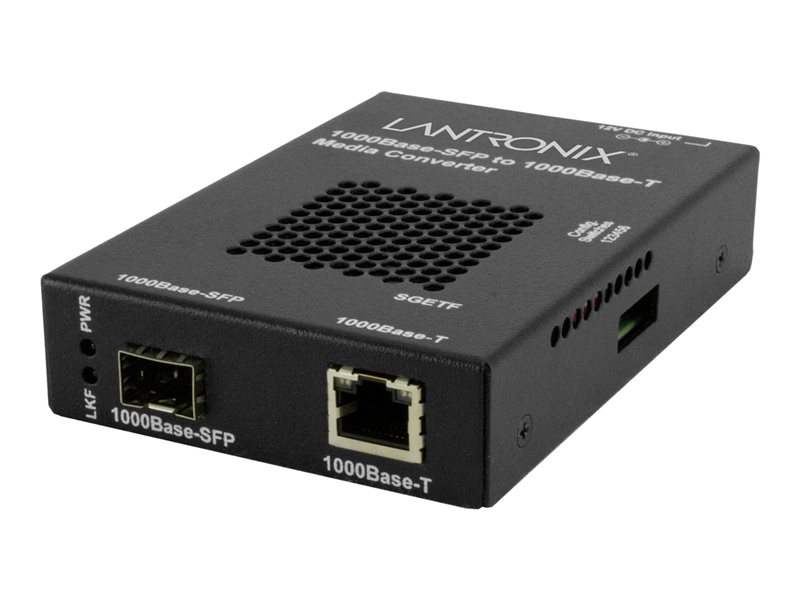

Fiber media converter - 1GbE - 1000Base-T - RJ-45 / SFP (mini-GBIC) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix SGETF Series - fiber media converter - 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | External |
| Localization | Europe |
| Cabling Type | 1000Base-T |
| Data Link Protocol | 1GbE |
| Power | AC 120-240 V |
| Dimensions (WxDxH) | 3.2 in x 4.8 in x 1 in |
| Weight | 31.74 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | Europe |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x 1Gb Ethernet - SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, FCC Class A certified, CISPR 22, EN 55022 Class A, EN55024, EN 61000 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | 1GbE |
| Status Indicators | Power, link/activity |
| Features | Auto-uplink (auto MDI/MDI-X), auto-negotiation, Link Pass-Through, Automatic Link Restoration, pause mode, Remote-Fault-Detection (RFD) |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3z |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120-240 V |
| Power Consumption Operational | 5.4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.2 in |
| Depth | 4.8 in |
| Height | 1 in |
| Weight | 31.74 oz |
