Wireless access point - Bluetooth, ZigBee, Wi-Fi 6 - 2.4 GHz, 5 GHz desktop / wall mountable
| Main Specifications | |
|---|---|

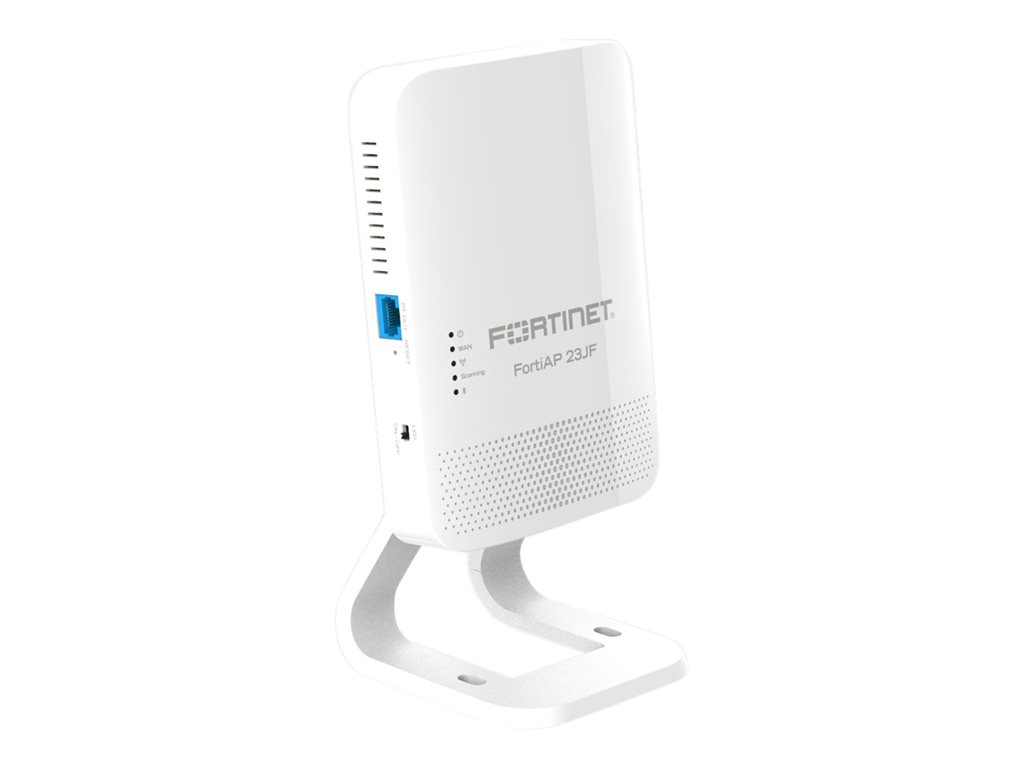

| Product Description | Fortinet FortiAP 23JF - wireless access point - Bluetooth, ZigBee, Wi-Fi 6 |
| Device Type | Wireless access point |
| Form Factor | Desktop / wall mountable - indoor |
| Localization | Japan |
| Data Link Protocol | Bluetooth 5.2 LE, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (2.4 GHz): 574 Mbps ¦ Maximum throughput (5 GHz): 1201 Mbps |
| Capacity | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: up to 512 |
| Included Accessories | Wall/ceiling/T-Rall mounting kit |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 4.6 in x 6.6 in x 1.1 in |
| Weight | 15.87 oz |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 4.6 in |
| Depth | 6.6 in |
| Height | 1.1 in |
| Weight | 15.87 oz |
| Localization | Japan |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE output) - RJ-45 ¦ 1 x 1000Base-T (PoE+) - RJ-45 ¦ 4 x 1000Base-T - RJ-45 ¦ 1 x RS-232 - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Wall/ceiling/T-Rall mounting kit |
| MTBF | 10 years |
| Compliant Standards | RoHS |
| Networking | |
| Form Factor | Desktop / wall mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | 64 QAM, 256 QAM, BPSK, QPSK, 1024 QAM, OFDMA |
| Data Link Protocol | Bluetooth 5.2 LE, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (2.4 GHz): 574 Mbps ¦ Maximum throughput (5 GHz): 1201 Mbps |
| Capacity | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: up to 512 |
| Features | DFS support, surge protection, Wireless Intrusion Detection System (WIDS), LACP support, Wireless Intrusion Prevention System (WIPS), Power Sourcing Equipment (PSE), iBeacon technology, 2x2 MU-MIMO technology, LED off mode, spectrum analyzer, Packet Sniffer Mode, security slot (Kensington security lock compatible), Target Wait Time (TWT), BSS Coloring |
| Encryption Algorithm | PEAP, WPA, WPA2, WEP, EAP-SIM, EAP-AKA, WPA3, EAP-FAST, EAP-TLS, EAP-TTLS, MSCHAPv2, EAP-GTC |
| Authentication Method | Radio Service Set ID (SSID), MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA, EAP-GTC, EAP-TLS, EAP-TTLS |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 31 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 24.69 oz |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 3 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
