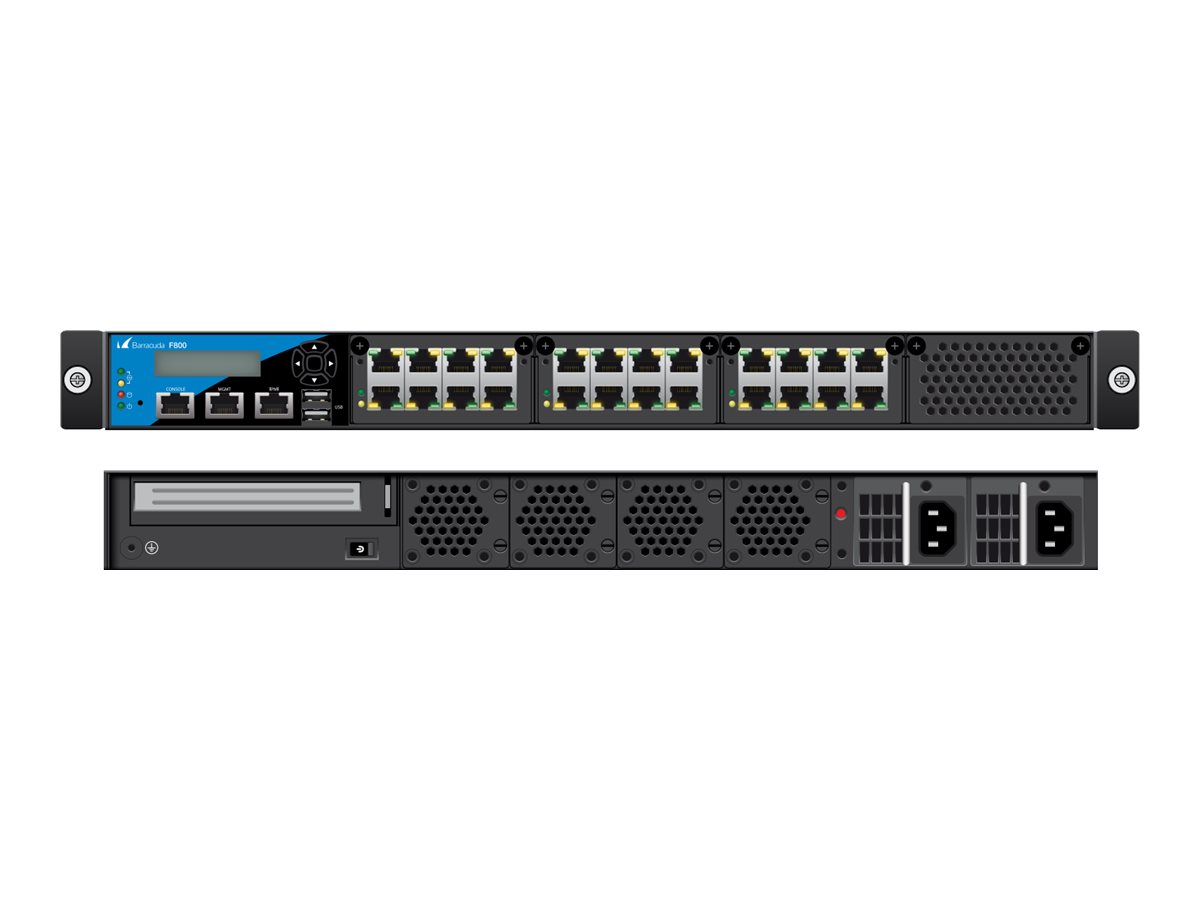

Security appliance - 1GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Barracuda CloudGen Firewall F800D.CCC - security appliance |
| Device Type | Security appliance |
| Form Factor | Rack-mountable - 1U |
| RAM | 24 GB |
| Hard Drive | 430 GB x 1 |
| Data Link Protocol | Gigabit Ethernet |
| Performance | Firewall throughput: 42.5 Gbps ¦ VPN throughput (128-bit AES, TINA): 11.5 Gbps ¦ VPN throughput (256-bit AES, TINA): 10 Gbps ¦ IPS throughput: 12.9 Gbps ¦ NGFW throughput: 9.7 Gbps ¦ Threat protection throughput: 9.3 Gbps |
| Capacity | Concurrent sessions: 3000000 ¦ New sessions per second: 220000 ¦ Maximum number of concurrent users: 6000 ¦ Virtual Routing and Forwarding (VRF) instances: 15 |
| Included Accessories | USB flash drive, L-shape rack mount brackets, rack rails kit |
| OS Required | Microsoft Windows, Linux, Apple MacOS |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 21.7 in x 1.7 in |
| Weight | 24.03 lbs |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Built-in Devices | Status LCD, system fan |
| Width | 17.3 in |
| Depth | 21.7 in |
| Height | 1.7 in |
| Weight | 24.03 lbs |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 1 x console - RJ-45 |
| Miscellaneous | |
| Included Accessories | USB flash drive, L-shape rack mount brackets, rack rails kit |
| Cables Included | 1 x network cable |
| MTBF | 7 years |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Switching Protocol | Ethernet |
| Network / Transport Protocol | DHCP, PPPoA, PPPoE, PPTP, SMTP, POP3S, FTP, IPSec, L2TP, SMTPS, POP3 |
| Routing Protocol | OSPF, RIP, BGP, WCCP |
| Remote Management Protocol | SNMP, HTTP, HTTPS |
| Performance | Firewall throughput: 42.5 Gbps ¦ VPN throughput (128-bit AES, TINA): 11.5 Gbps ¦ VPN throughput (256-bit AES, TINA): 10 Gbps ¦ IPS throughput: 12.9 Gbps ¦ NGFW throughput: 9.7 Gbps ¦ Threat protection throughput: 9.3 Gbps |
| Capacity | Concurrent sessions: 3000000 ¦ New sessions per second: 220000 ¦ Maximum number of concurrent users: 6000 ¦ Virtual Routing and Forwarding (VRF) instances: 15 |
| Features | Common address redundancy protocol (CARP), NT LAN Manager (NTLM), VLAN support, DHCP client, IP Link Ethernet monitoring, GRE tunneling, IPinIP support, Jumbo Frames support (up to 9000 bytes), policy based routing, Virtual Routing and Forwarding (VRF), OCSP support, certificate revocation lists (CRL), NAT support, HTTPS proxy, SOCKS support, SNMP support, SSH support, SMS remote control, DHCP relay, DHCP server, DNS server, dynamic DNS, password protection, Forward Error Correction (FEC), firewall protection |
| Encryption Algorithm | 128-bit AES, 256-bit AES, DES, Triple DES, CAST, Blowfish, 4096-bit RSA, PKI, STARTTLS |
| Authentication Method | X.509 certificates, NTLM, RADIUS, LDAP, Active Directory, TACACS+, SecurID |
| Compliant Standards | IEEE 802.1Q, X.509 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 550 watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows, Linux, Apple MacOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 24 GB |
| Hard Drive | SSD 430 GB x 1 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.5 in |
| Shipping Depth | 30.3 in |
| Shipping Height | 9 in |
| Shipping Weight | 41.89 lbs |
