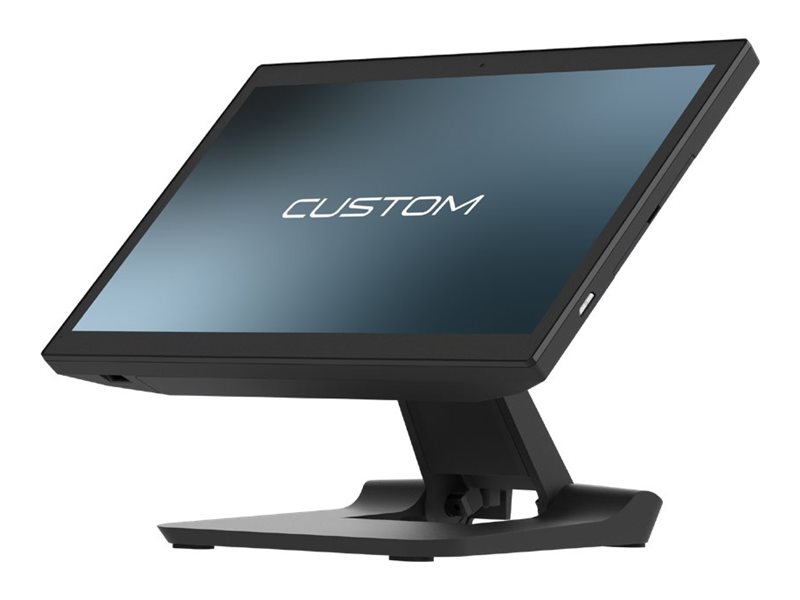

All-in-one 1 x Celeron J6412 / up to 2.6 GHz - RAM 8 GB - SSD 128 GB - UHD Graphics - IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 - Win 11 IoT - monitor: LCD 15.6" 1920 x 1080 (Full HD) touchscreen
| Main Specifications | |
|---|---|
| Product Description | Custom ASCENT Standard - all-in-one Celeron J6412 2 GHz - 8 GB - SSD 128 GB - LCD 15.6" |
| Type | Point of sale terminal - all-in-one |
| Processor | 1 x Intel Celeron J6412 / 2 GHz (up to 2.6 GHz, (Quad-Core) |
| Processor Main Features | 4 Threads |
| Cache Memory | 4 MB |
| Cache Per Processor | 4 MB |
| RAM | 8 GB DDR4 SDRAM |
| Hard Drive | SSD 128 GB - M.2 |
| Optical Storage | No optical drive |
| Monitor | 15.6" - LCD - 1920 x 1080 (Full HD) - 16:9 - touchscreen |
| Graphics Controller | Intel UHD Graphics |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6, 802.11b/g/n, Bluetooth 5.2, 10Mb LAN |
| OS Provided | Windows 11 IoT |
| Dimensions (WxDxH) | 14.5 in x 9.2 in x 10.4 in |
| Weight | 7.72 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one - with dual hinge collapsible stand |
| Built-in Devices | 3W speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Expansion / Connectivity | |
| Interfaces | 5 x USB 2.0 - Type A ¦ 2 x USB 3.0 - Type A ¦ 1 x USB-C 3.0 - Type C ¦ 3 x - RJ-48 ¦ 1 x LAN - RJ-45 ¦ 1 x - RJ-11 ¦ 1 x FeDP ¦ 1 x - 4 pin |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | FCC Class A certified, LVD |
| RAM | |
| Installed Size | 8 GB |
| Technology | DDR4 SDRAM |
| Networking | |
| Interface (Bus) Type | M.2 Card |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.2, Ethernet |
| Power | |
| Device Type | Power adapter |
| Power Provided | 65 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 85% RH (non-condensing) |
| Cache Memory | |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LCD |
| Touchscreen | Yes (multi-touch) |
| Diagonal Size | 15.6" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 500 cd/m² |
| Monitor Features | True Flat Projected Capacitive Touch |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Operating System / Software | |
| OS Provided | Windows 11 IoT |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 128 GB |
| Dimensions & Weight | |
| Dimensions & Weight Details | 14.5 in - 9.2 in - 10.4 in - 7.7 lbs - with stand |
| Width | 14.5 in |
| Depth | 9.2 in |
| Height | 10.4 in |
| Weight | 7.72 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 11.02 lbs |
| Processor / Chipset | |
| CPU | Intel Celeron J6412 |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 2.6 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | 4 Threads |
