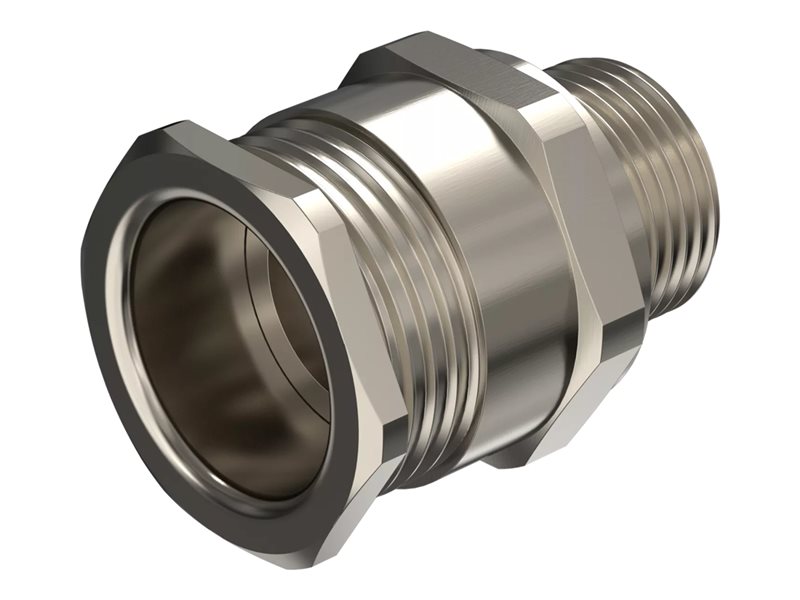

Cable gland - ex d, non-armored - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AXIS TQ1944-E - cable gland - ex d, non-armored - TAA Compliant |
| Product Type | Cable gland |
| Product Material | Nickel plated brass |
| Dimensions (WxDxH) | 0.4 in x 0.8 in |
| Weight | 4.59 oz |
| Compliant Standards | UKEx, ATEX Directive, ATEX Groups IIC, ATEX Groups IIIC, ATEX/IECEx, IECEx, IECEx Groups IIC, IECEx Groups IIIC, cCSAus, CSA C22.2 No.25, CSA C22.2 No.30, CSA C22.2 No. 60079-0, CSA C22.2 No. 60079-1, CSA C22.2 No. 60079-7, IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7, IEC/EN 60079-31, UL 60079-0, UL 60079-1, UL 60079-7, TUV |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Cable gland |
| Product Material | Nickel plated brass |
| Width | 0.4 in |
| Depth | 0.8 in |
| Weight | 4.59 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | For M25x1.5 threads, for use with non-armored cable, for cable diameter 11.1 - 20 mm |
| Compliant Standards | UKEx, ATEX Directive, ATEX Groups IIC, ATEX Groups IIIC, ATEX/IECEx, IECEx, IECEx Groups IIC, IECEx Groups IIIC, cCSAus, CSA C22.2 No.25, CSA C22.2 No.30, CSA C22.2 No. 60079-0, CSA C22.2 No. 60079-1, CSA C22.2 No. 60079-7, IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7, IEC/EN 60079-31, UL 60079-0, UL 60079-1, UL 60079-7, TUV |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -76 °F |
| Max Operating Temperature | 266 °F |
