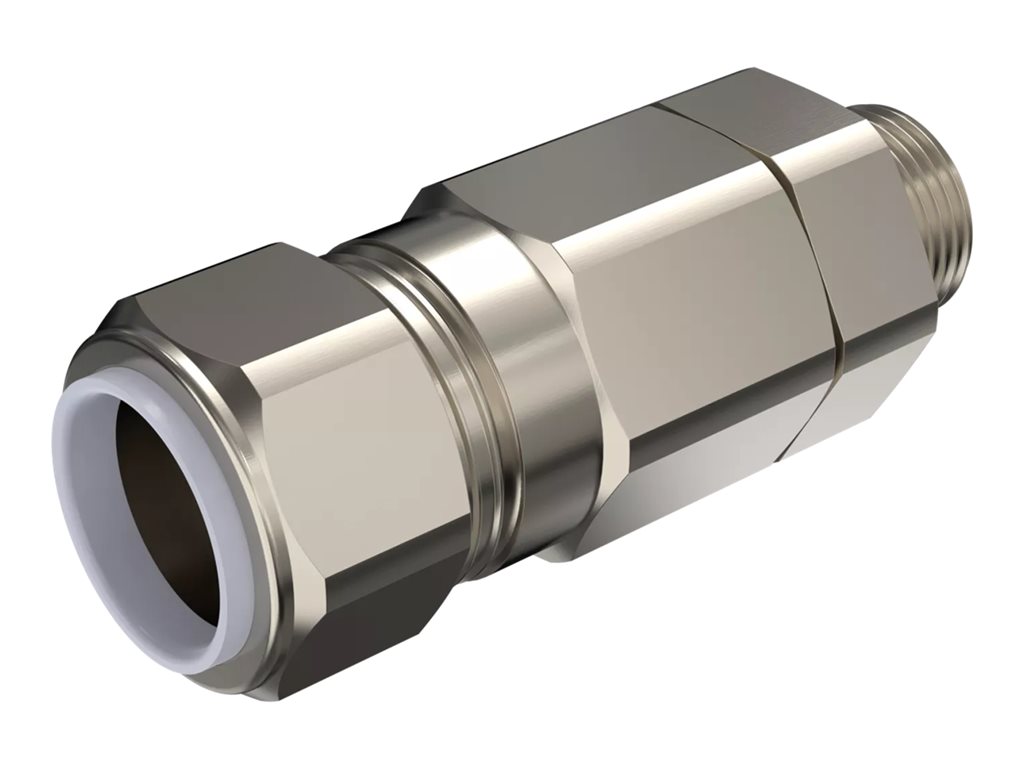

Cable gland - ex d, armored - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AXIS TQ1943-E Ex d Armored - cable gland - ex d, armored - TAA Compliant |
| Product Type | Cable gland |
| Package Content | Sealing washer |
| Product Material | Nickel plated brass |
| Weight | 9.88 oz |
| Compliant Standards | IEC/EN 60079-1, IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, UL 60079-0, UL 60079-1, UL 60079-7, ANSI/UL 514B, ATEX/IECEx, UKEx, CCC, UL 50, NEMA 250 Type 4X, IECEx Groups IIC, IECEx Groups IIIC, ATEX Groups IIC, ATEX Groups IIIC, BIS, IK10, IP66, IP67, IP68, JS709, Directive 1907/2006/EC, EN/IEC 63000:2018, RoHS 2011/65/EU, RoHS 2011/65/EU Amendment 2015/863, BFR-free, CFR free, JEDEC, ECA |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Cable gland |
| Package Content | Sealing washer |
| Product Material | Nickel plated brass |
| Weight | 9.88 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Features | For M20x1.5 threads, for cable diameter 12.5 - 20.9 mm, for use with armored cable |
| Compliant Standards | IEC/EN 60079-1, IEC/EN 60079-0, IEC/EN 60079-7, IEC/EN 60079-31, UL 60079-0, UL 60079-1, UL 60079-7, ANSI/UL 514B, ATEX/IECEx, UKEx, CCC, UL 50, NEMA 250 Type 4X, IECEx Groups IIC, IECEx Groups IIIC, ATEX Groups IIC, ATEX Groups IIIC, BIS, IK10, IP66, IP67, IP68, JS709, Directive 1907/2006/EC, EN/IEC 63000:2018, RoHS 2011/65/EU, RoHS 2011/65/EU Amendment 2015/863, BFR-free, CFR free, JEDEC, ECA |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -76 °F |
| Max Operating Temperature | 266 °F |
