Version V1 - switch - industrial - 8 x 10/100/1000/2.5G + 1 x 1 Gigabit / 10 Gigabit SFP+ - DIN rail mountable, wall-mountable - TAA Compliant
| Main Specifications | |
|---|---|

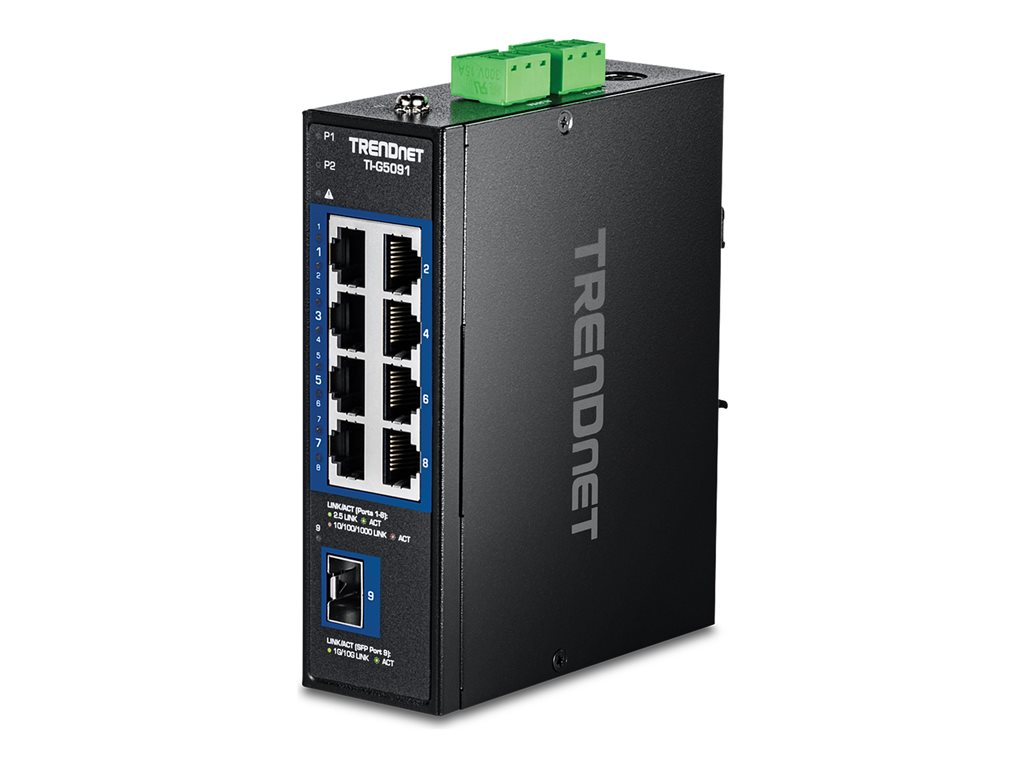

| Product Description | TRENDnet TI-G5091 - Version V1 - switch - industrial - 9 ports - TAA Compliant |
| Device Type | Switch - 9 ports |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 8 x 10/100/1000/2.5G + 1 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding performance (64-byte packet size): 44.64 Mpps |
| Capacity | RAM buffer: 1 MB |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 12KB |
| Features | Hardened, metal housing, LED status indicators, half duplex mode, full duplex mode, auto-negotiation, store and forward, VLAN passthrough, automatic address learning, automatic address aging, 6KV ESD Protector, vibration-resistant, shock-resistant |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz |
| Power | DC 9 - 60 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 1.6 in x 4.7 in x 3.9 in |
| Weight | 20.24 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 9 ports |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 8 x 10/100/1000/2.5G + 1 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 60 Gbps ¦ Forwarding performance (64-byte packet size): 44.64 Mpps |
| Capacity | RAM buffer: 1 MB |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 12KB |
| Features | Hardened, metal housing, LED status indicators, half duplex mode, full duplex mode, auto-negotiation, store and forward, VLAN passthrough, automatic address learning, automatic address aging, 6KV ESD Protector, vibration-resistant, shock-resistant |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz |
| Status Indicators | Power, link, activity |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000/2.5G RJ-45 ¦ 1 x 1/10Gbit LAN SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, 2 x 3-pin removable terminal blocks |
| MTBF | 615,965 hours |
| Compliant Standards | NDAA, IP50, FCC, LVD, IEC 60068-2-27, EN 60068-2-32, EN 60068-2-6 |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter (not included) |
| Power Redundancy | Yes |
| Voltage Required | DC 9 - 60 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.6 in |
| Depth | 4.7 in |
| Height | 3.9 in |
| Weight | 20.24 oz |
