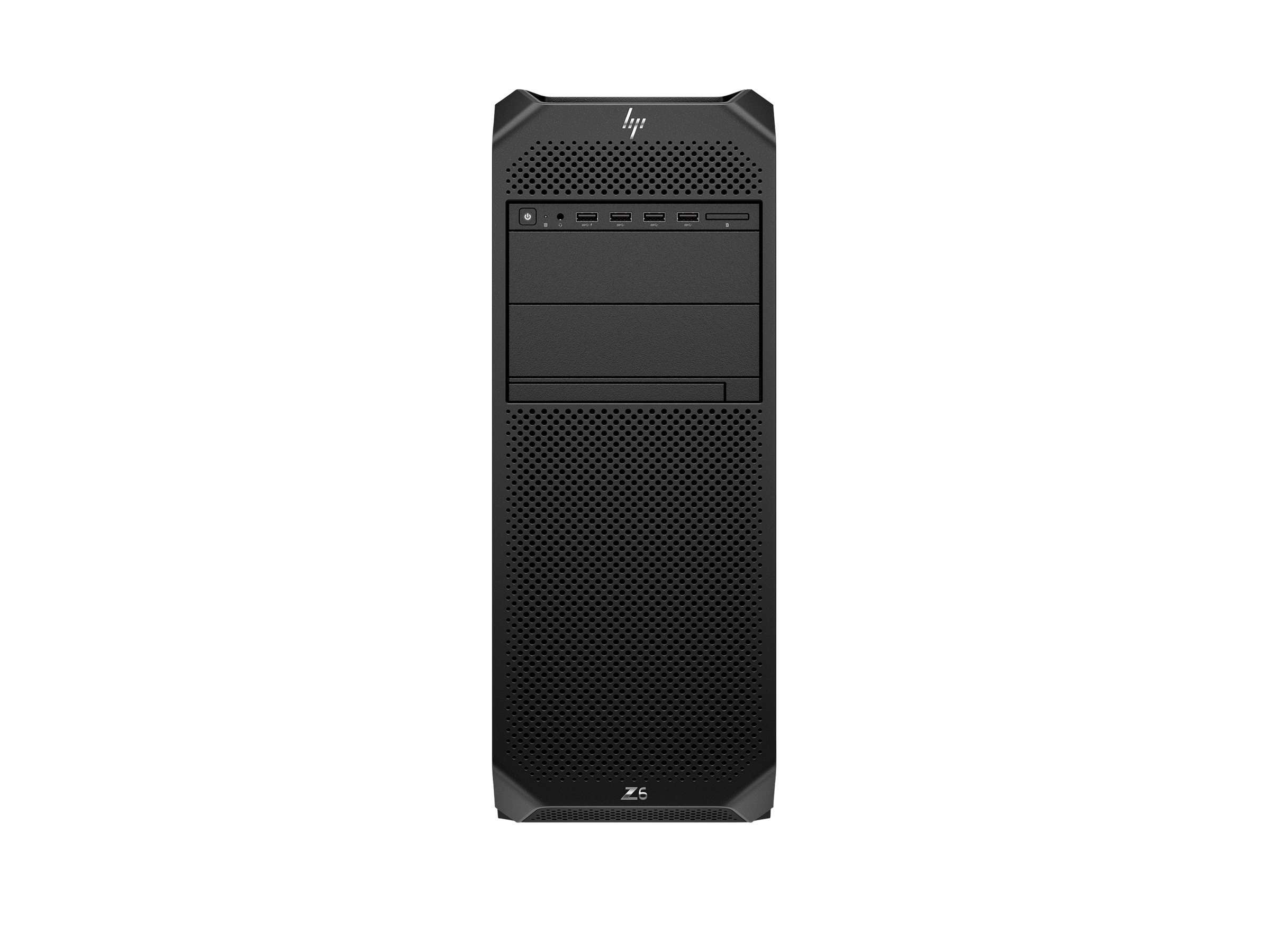

AI Workstation - tower 4U - 1 x Xeon W W5-3425 / up to 4.6 GHz - RAM 32 GB - SSD 1 TB - HP Z Turbo Drive, NVMe, TLC - RTX A4000 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z6 G5 - tower - AI Workstation - Xeon W W5-3425 3.2 GHz - 32 GB - SSD 1 TB - US |
| Type | Workstation - tower - AI Workstation |
| Height (Rack Units) | 4U |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Xeon W W5-3425 / 3.2 GHz (up to 4.6 GHz, (12-core) |
| Processor Socket | LGA4677 Socket-E |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 1 TB (max) - DDR5 SDRAM - non-ECC |
| Storage Controller | SATA/NVMe (SATA-600 / NVMe) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | PCIe 4.0 x16 - NVIDIA RTX A4000 |
| Video Memory | 16 GB GDDR6 SDRAM |
| Networking | 1GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Smart Support, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Services Scan, HP Data Science Stack Manager, HP Sure Start |
| Color | Black |
| Dimensions (WxDxH) | 6.7 in x 18.3 in x 17.5 in |
| Weight | 28.22 lbs |
| Environmental Standards | TCO Certified Desktops 9 EPEAT Gold |
| Manufacturer Warranty | Limited warranty - parts and labor - 1 year |
| General | |
| Type | Workstation |
| AI Level | AI Workstation |
| Product Form Factor | Tower - 4U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x external 5.25" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 3.5" |
| Slots | 1 (total) / 0 (free) x PCIe 5.0 x16 ¦ 2 (total) / 2 (free) x PCIe 4.0 x4 ¦ 2 (total) / 2 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 2 (total) / 2 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) |
| Interfaces | 1 x headphones/microphone (1 in front) ¦ 10 x USB 3.2 Gen 1 (4 front, 6 rear) (one of them is Battery Charging 1.2) ¦ 1 x audio line-out/line-in (1 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 4 x DisplayPort 1.4a |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, Green Mark, Common Criteria EAL4+, ERP, CECP, CEL, WEEE 2002/96/EC, SEPA, low halogen, ACPI 6.0, Korea Eco-Label, IT ECO Declaration, DASH 1.2, FEMP |
| RAM | |
| Installed Size | 32 GB (installed) / 1 TB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 6 (empty) |
| Configuration Features | 2 x 16 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), Intel Active Management Technology (AMT), PXE 2.1 support |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Power Provided | 1125 watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 8 - 85% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA/NVMe |
| Controller Interface Type | SATA-600 / NVMe |
| Channel Qty | 5 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Interface Type | PCIe 4.0 x16 |
| Graphics Processor | NVIDIA RTX A4000 |
| Video Memory | 16 GB GDDR6 SDRAM |
| Bandwidth | 448 GBps |
| Video Interfaces | DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Smart Support, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Services Scan, HP Data Science Stack Manager, HP Sure Start |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 18.3 in |
| Height | 17.5 in |
| Weight | 28.22 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.3 in |
| Shipping Depth | 23.3 in |
| Shipping Height | 24 in |
| Shipping Weight | 38.14 lbs |
| Keyboard | |
| Keyboard Name | HP 125 |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 128 |
| Technology | Laser |
| Processor / Chipset | |
| CPU | Intel Xeon W W5-3425 |
| Clock Speed | 3.2 GHz |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| CPU Socket | LGA4677 Socket-E |
| Chipset Type | Intel W790 |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
| EPEAT Compliant | EPEAT Gold |
