Docking station - USB-C - 2 x HDMI - 1GbE
| Main Specifications | |
|---|---|
| Product Description | ATEN UH3240 - docking station - USB-C - 2 x HDMI - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Video Interfaces | 2 x HDMI |
| Dimensions (WxDxH) | 1.7 in x 8.7 in x 0.6 in |
| Weight | 6.56 oz |
| Audio Output | Headphone - stereo |
| Networking | Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 1.7 in |
| Depth | 8.7 in |
| Height | 0.6 in |
| Weight | 6.56 oz |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SDXC Memory Card ¦ 1 (total) / 1 (free) x microSDXC |

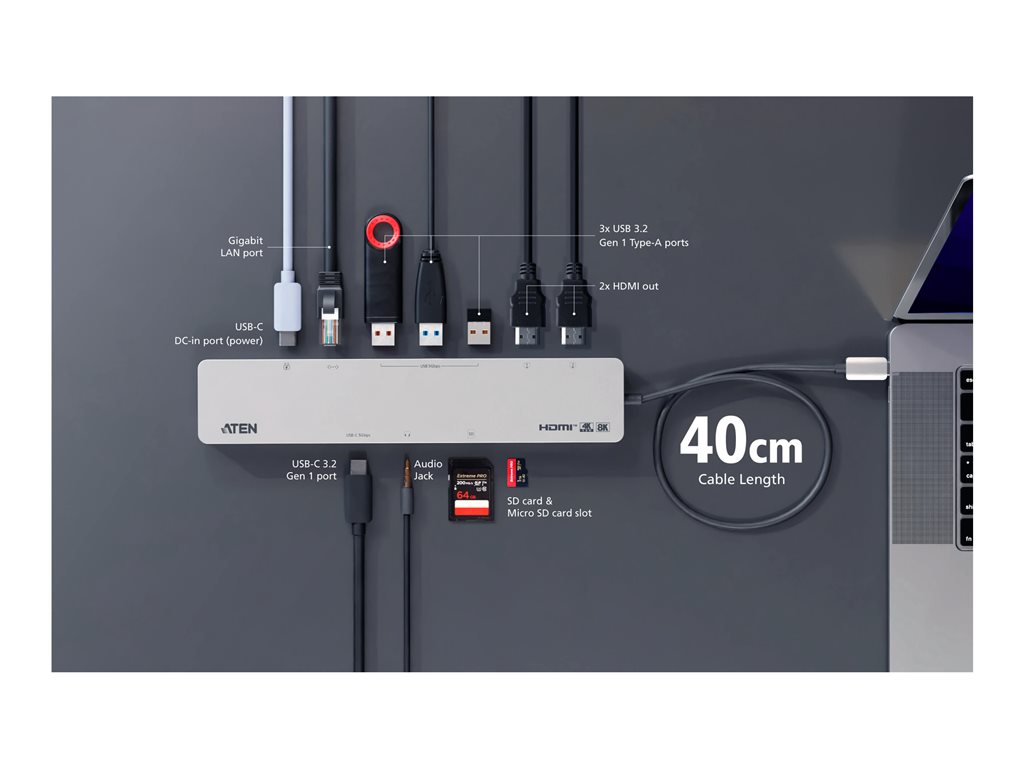

| Interfaces | 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C (power port) - 24 pin USB-C ¦ 1 x USB-C (data only) - 24 pin USB-C ¦ 3 x USB-A 3.2 Gen1 - 9 pin USB Type A ¦ 1 x network - Ethernet 1000 - RJ-45 ¦ 1 x headphones - mini-phone stereo 3.5 mm |
| Compatible Slots | 1 x microSD ¦ 1 x SD Memory Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 1.3 ft |
| Features | 100W power delivery, up to 5Gbps data transfer, aluminum housing, DisplayPort Alt Mode, USB port with passthrough |
| Compliant Standards | USB 3.2 Gen 1, USB Power Delivery 3.0, DisplayPort 1.4 (Alt Mode), Plug and Play, Thunderbolt |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 7680 x 4320 - 120 Hz (HDMI1 only) ¦ 3840 x 2160 - 60 Hz (HDMI1 and HDMI2 simultaneously) |
| Audio | |
| Audio Output | Headphone |
| Sound Output Mode | Stereo |
| System Requirements | |
| OS Required | Windows 10 or later, Apple macOS 10.12 or later, Android 8.0 (Oreo) or later, Apple iPadOS 13.1 or later, Apple iOS 17 or later |
