Network tester kit
| Main Specifications | |
|---|---|

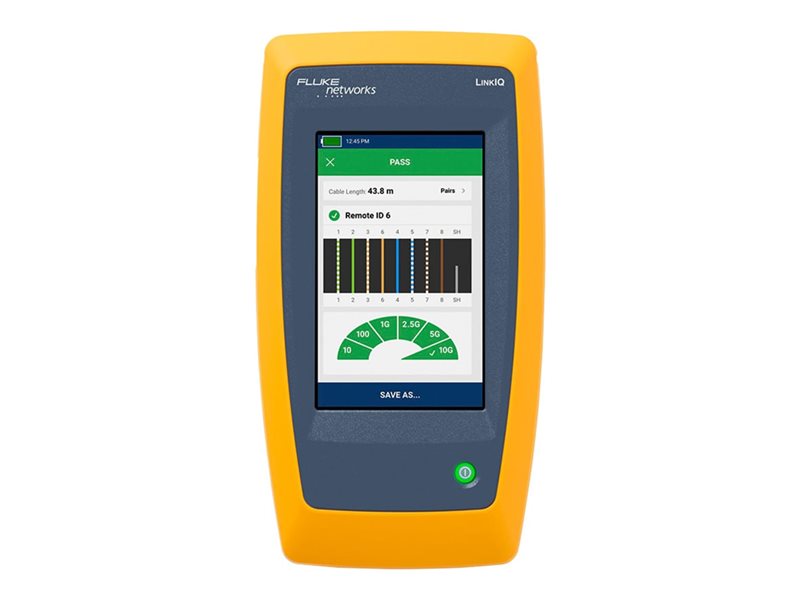

| Product Description | Fluke LinkIQ LIQ-200 DUO - network tester kit |
| Device Type | Network tester kit |
| Cable Types | UTP, STP |
| Tests, Tools and Measurements | Cable type, Ethernet link diagnostic, frequency, identifies remote ID locators, length, PoE, received signal strength, utilization statistics, wiremap, ping |
| Features | Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), Dynamic Host Configuration Protocol (DHCP), Fast Link Pulses (FLP), Internet Control Messaging Protocol (ICMP), switch and VLAN detail, Port Blink, cable tone generator, Wi-Fi IEEE 802.11 a/b/g/n/ac/ax; dual band (2.4 GHz and 5 GHz), Analog and Digital Toning, firmware upgradable, Remote Office Locators, 802.1x authentication |
| Power | 100-240 V |
| Dimensions (WxDxH) | 4.5 in x 1.9 in x 8.5 in |
| Weight | 22.01 oz |
| General | |
| Device Type | Network tester kit |
| Kit Content | Network tester with multi-connector adapter with magnetic strap, RJ45 Remote-ID #1 |
| Media | Copper, radio |
| Features | Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP), Dynamic Host Configuration Protocol (DHCP), Fast Link Pulses (FLP), Internet Control Messaging Protocol (ICMP), switch and VLAN detail, Port Blink, cable tone generator, Wi-Fi IEEE 802.11 a/b/g/n/ac/ax; dual band (2.4 GHz and 5 GHz), Analog and Digital Toning, firmware upgradable, Remote Office Locators, 802.1x authentication |
| Tests, Tools and Measurements | Cable type, Ethernet link diagnostic, frequency, identifies remote ID locators, length, PoE, received signal strength, utilization statistics, wiremap, ping |
| Cable Types | UTP, STP |
| Included Accessories | Hanging strap with remote ID holder, charging cable, carrying case |
| Cables Included | USB to USB-C cable ¦ RJ-45 to RJ-45 patch cable ¦ RJ-45 to M12X patch cable ¦ RJ-45 to M12D patch cable ¦ RJ-45 to M8D patch cable ¦ RJ-45 to RJ-11 modular adapter |
| Connectors | RJ-45, 24 pin USB type C |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Power | |
| Input Voltage | 100-240 V |
| Output Voltage | 15 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Operating | 0 - 90% |
| Vibration Tolerance (operating) | 2 g @ 5-500 Hz |
| Drop Specification | 3.3 ft |
| Max Altitude Operating | 13120 ft |
| Battery | |
| Technology | Lithium ion |
| Voltage | 3.6 V |
| Run Time (Up To) | 8 hour(s) |
| Display | |
| Technology | LCD |
| Display Resolution | 800 x 480 pixels |
| Color Support | Color |
| Features | Touchscreen |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 1.9 in |
| Height | 8.5 in |
| Weight | 22.01 oz |
