Wi-Fi system - (2 routers) - up to 4,900 sq.ft - mesh 1GbE, Wi-Fi 7, 2.5GbE, 5GbE Dual Band
| Main Specifications | |
|---|---|

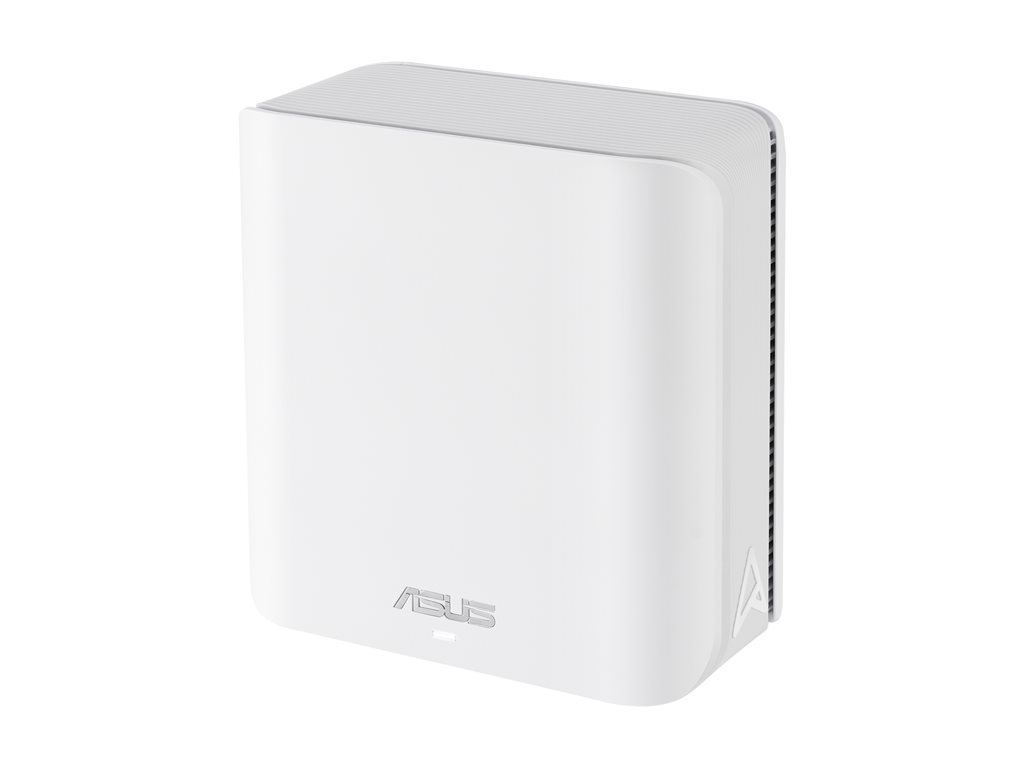

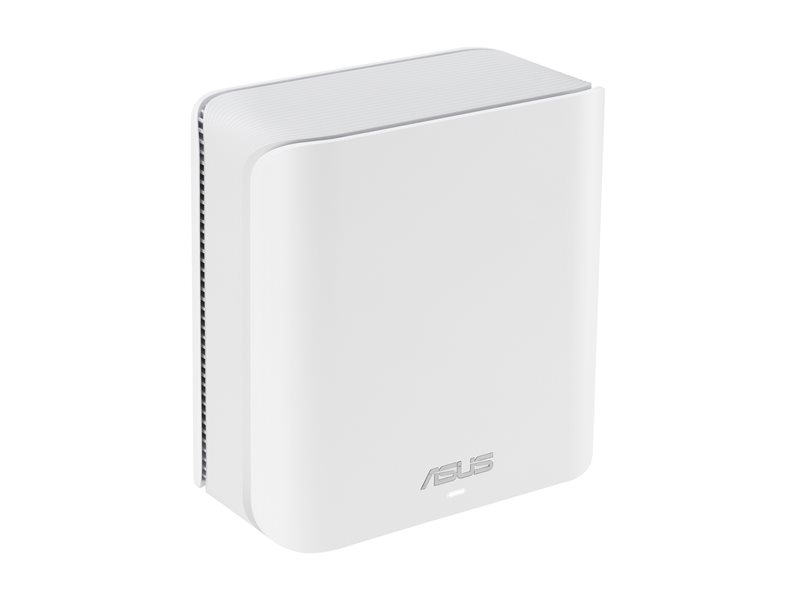

| Product Description | ASUS ZenWiFi BD4 - Wi-Fi system - Wi-Fi 7 - desktop |
| Device Type | Wi-Fi system - mesh |
| Enclosure Type | Desktop |

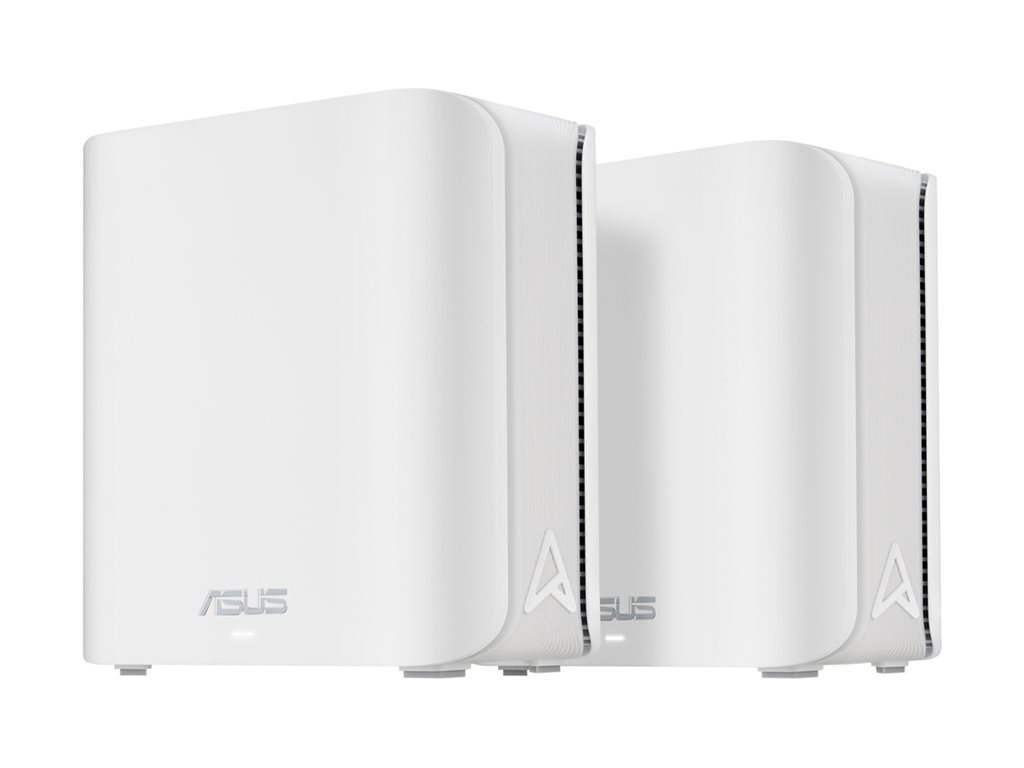

| Wi-Fi System Components | 2 routers |
| Wi-Fi System Coverage | Up to 4,900 sq.ft |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPTP, L2TP, DDNS, DHCP |
| Features | OFDMA, beamforming technology, ASUS AiMesh, 160MHz bandwidth support, AiMesh node mode, ASUS Router App, WPS button, Access Point operational mode, reset button, parental control, Guest Network, ASUS AiProtection, Let's Encrypt, IPSec server, L2TP VPN client, OpenVPN client, OpenVPN server, PPTP client, PPTP server, VPN Fusion, Adaptive QoS, Bandwidth Monitor, Bandwidth Limiter, traffic monitoring, port forwarding, port triggering, DMZ support, IGMP snooping, IPTV support, Link Aggregation, WOL, VLAN support, MU-MIMO technology, Wireless Scheduler, Airtime Fairness, RADIUS support, Explicit Beamforming, auto firmware update, system log, login captcha |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
| Power | AC 110-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 5.5 in x 2.8 in x 5.5 in |
| General | |
| Device Type | Wi-Fi system - mesh |
| Wi-Fi System Components | 2 routers |
| Wi-Fi System Coverage | Up to 4,900 sq.ft |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPTP, L2TP, DDNS, DHCP |
| Encryption Algorithm | WPA, WPA2, WPA3-Personal, WPA2-Enterprise, WPA-Enterprise |
| Mesh Networking | Yes |
| Features | OFDMA, beamforming technology, ASUS AiMesh, 160MHz bandwidth support, AiMesh node mode, ASUS Router App, WPS button, Access Point operational mode, reset button, parental control, Guest Network, ASUS AiProtection, Let's Encrypt, IPSec server, L2TP VPN client, OpenVPN client, OpenVPN server, PPTP client, PPTP server, VPN Fusion, Adaptive QoS, Bandwidth Monitor, Bandwidth Limiter, traffic monitoring, port forwarding, port triggering, DMZ support, IGMP snooping, IPTV support, Link Aggregation, WOL, VLAN support, MU-MIMO technology, Wireless Scheduler, Airtime Fairness, RADIUS support, Explicit Beamforming, auto firmware update, system log, login captcha |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
| Processor | 1.5 GHz |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Status Indicators | Power |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 2 x 2.5GBase-T - RJ-45 |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 110-240 V (50 - 60 Hz) |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 2.8 in |
| Height | 5.5 in |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 4 |
