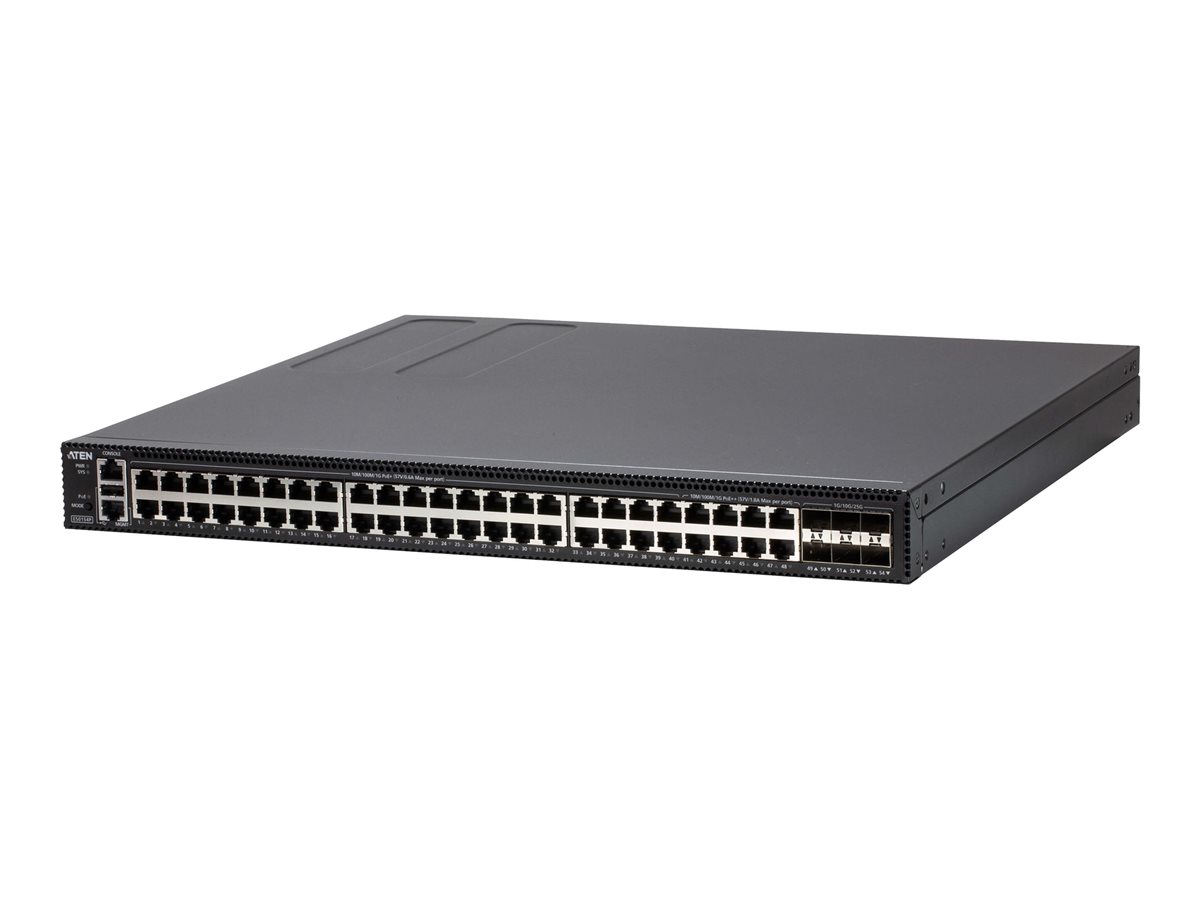

Switch - L2+ - managed - 40 x 10/100/1000 (PoE+) + 6 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP28 (uplink) + 8 x 10/100/1000 (PoE++) - rack-mountable - PoE++ (740 W)
| Main Specifications | |
|---|---|
| Product Description | ATEN ES0154P - switch - 54 ports - managed - rack-mountable |
| Device Type | Switch - 54 ports - L2+ - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 40 x 10/100/1000 (PoE+) + 6 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP28 (uplink) + 8 x 10/100/1000 (PoE++) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 396 Gbps ¦ Forwarding rate: 295 Mpps |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv3, IGMPv2, IGMP |
| Remote Management Protocol | IPv4, IPv6 |
| Features | IGMP querier, IGMP support, auto-negotiation, flow control, QoS, RSTP support |
| Compliant Standards | IEEE 802.1w |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 16.5 in x 17.4 in x 1.7 in |
| Weight | 11.95 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 54 ports - L2+ - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 40 x 10/100/1000 (PoE+) + 6 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP28 (uplink) + 8 x 10/100/1000 (PoE++) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 396 Gbps ¦ Forwarding rate: 295 Mpps |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv3, IGMPv2, IGMP |
| Remote Management Protocol | IPv4, IPv6 |
| Features | IGMP querier, IGMP support, auto-negotiation, flow control, QoS, RSTP support |
| Compliant Standards | IEEE 802.1w |
| RAM | 1 GB |
| Flash Memory | 256 MB |
| Expansion / Connectivity | |
| Interfaces | 40 x 10/100/1000 Base-T (PoE+) RJ-45 30 W ¦ 6 x 1/10/25GBase-X SFP28 uplink ¦ 1 x console RJ-45 ¦ 1 x management RJ-45 ¦ 1 x USB Type A ¦ 8 x 10/100/1000 Base-T (PoE++) RJ-45 90 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | Plug and Play |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 16.5 in |
| Depth | 17.4 in |
| Height | 1.7 in |
| Weight | 11.95 lbs |
