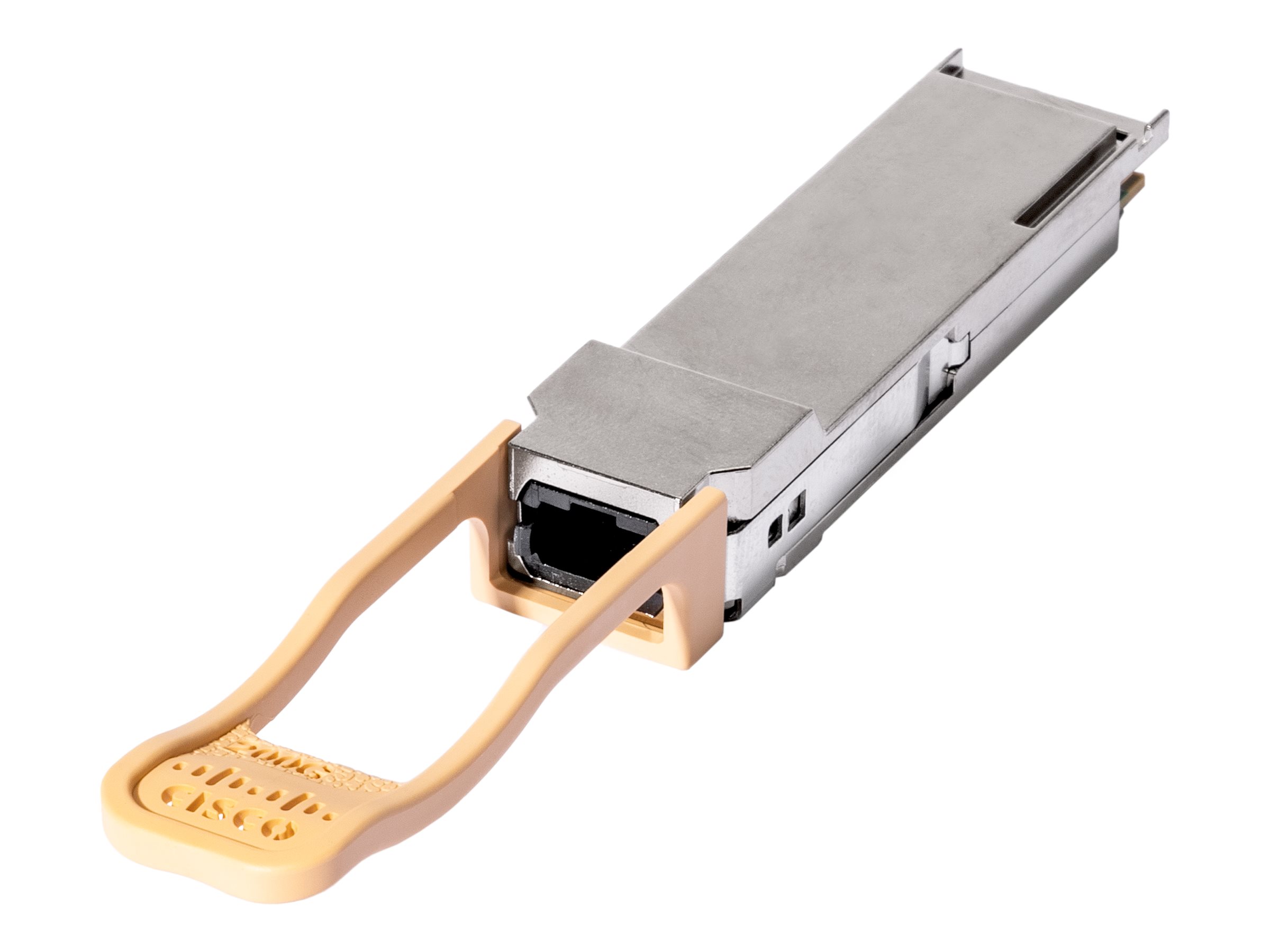

QSFP56 transceiver module - 200GbE - 200GBase-SL4 - MPO-12/UPC multi-mode - up to 98 ft - 850 nm
| Main Specifications | |
|---|---|
| Product Description | Cisco - QSFP56 transceiver module - 200GbE |
| Device Type | QSFP56 transceiver module - MPO-12/UPC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 200GBase-SL4 |
| Data Transfer Rate | 200 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 200GbE |
| Max Transfer Distance | 98 ft |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | QSFP56 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 200GBase-SL4 - MPO-12/UPC multi-mode female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - return to factory - 5 years |
| Miscellaneous | |
| Compliant Standards | 200GAUI-4, OIF CEI-56G-VSR-PAM4, OM4, Laser Class 1, WEEE, GR-20-CORE, GR-326-CORE, GR-468-CORE, GR-1435-CORE, CMIS 4.0, MSA |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 200GBase-SL4 |
| Data Link Protocol | 200GbE |
| Data Transfer Rate | 200 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 98 ft |
| Features | Beige pull tab, hot swappable, breakout capability, Forward Error Correction (FEC) |
