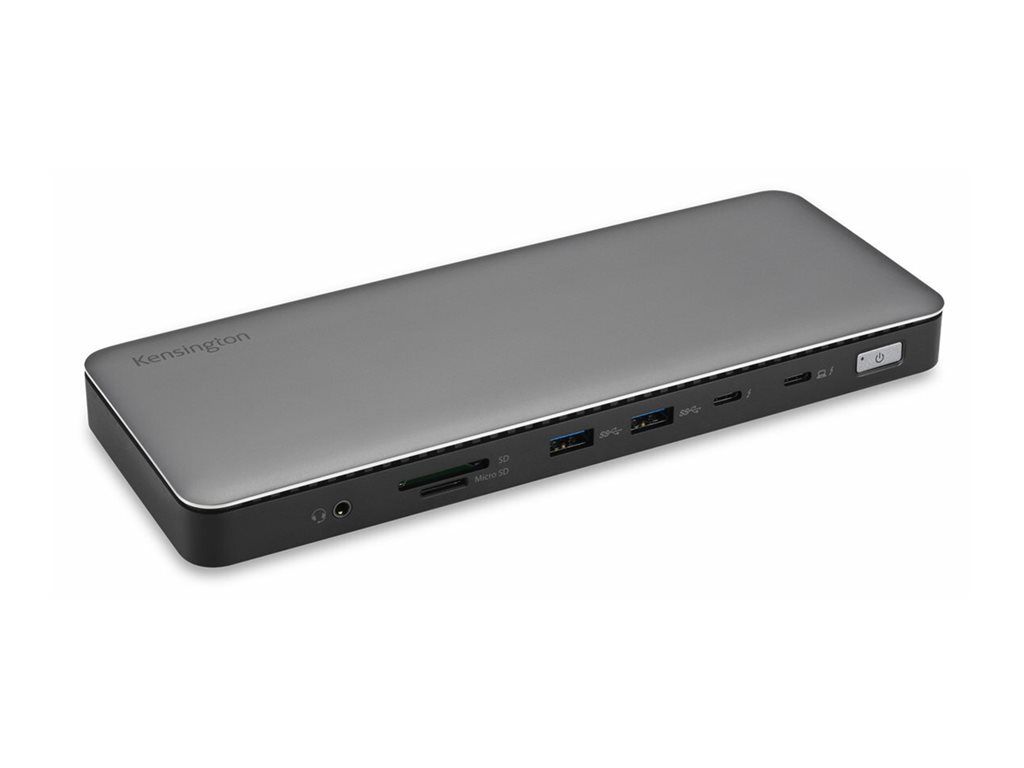

Docking station - USB-C / Thunderbolt 4 - 2 x HDMI, Thunderbolt 4 - 1GbE - 149.1 Watt
| Main Specifications | |
|---|---|
| Product Description | Kensington SD5768T EQ - docking station - USB-C / Thunderbolt 4 - 2 x HDMI, Thunderbolt 4 - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C / Thunderbolt 4 |
| Video Interfaces | 2 x HDMI, Thunderbolt 4 |
| Dimensions (WxDxH) | 8.9 in x 3.3 in x 0.9 in |
| Weight | 13.93 oz |
| Color | Deep space gray, PMS black |
| Networking | Gigabit Ethernet |
| Power | Power supply AC 100-240 V (50/60 Hz) 149.1 Watt Power Provided (21 V) |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Docking station |
| Width | 8.9 in |
| Depth | 3.3 in |
| Height | 0.9 in |
| Weight | 13.93 oz |
| Enclosure Color | Deep space gray, PMS black |
| Expansion / Connectivity | |
| Interfaces | 2 x USB-C - 24 pin USB-C ¦ 1 x USB-C with Power Delivery (96 W) - Thunderbolt - 24 pin USB-C ¦ 2 x USB-A 3.2 Gen1 - 9 pin USB Type A ¦ 1 x headphone/microphone combo jack - 3.5mm audio jack ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 2 x USB-A 3.2 Gen2 - 9 pin USB Type A ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Input Device | microSD card reader, SD card reader |
| Included Accessories | 149.1W power supply unit, Thunderbolt 4 cable (0.8m) |
| Features | 96W power delivery, aluminum enclosure, Post-consumer Recycled Plastic, 73% post-consumer recycled plastic, DockWorks |
| Security Slot Type | Kensington nano security slot / Kensington security slot |
| Compliant Standards | FCC, IC, RCM, VCCI, UKCA, CB, RoHS, ACCO RSL |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 149.1 Watt |
| Voltage Provided | 21 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Video | |
| Max Resolution Details | 8K - 60 Hz (Single Display (Thunderbolt)) ¦ 4K - 60 Hz (Single Display (HDMI)) ¦ 4K - 60 Hz (Dual Display (2 x HDMI)) ¦ 4K - 120 Hz (Single Display (Thunderbolt)) ¦ 1080P - 240 Hz (Single Display (Thunderbolt)) ¦ 1080P - 240 Hz (Dual Display (2 x HDMI)) |
