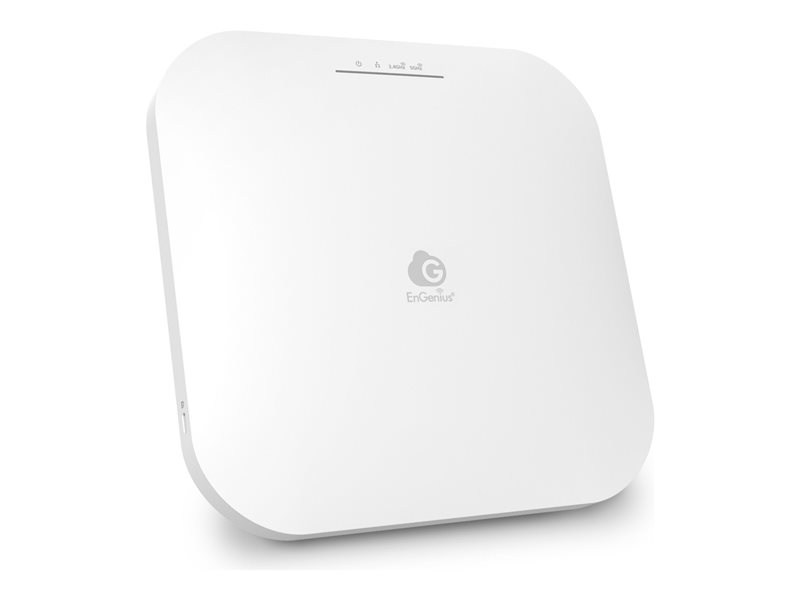

Wireless access point - 4x4, indoor, lite - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall / ceiling mountable
| Main Specifications | |
|---|---|
| Product Description | EnGenius Cloud Managed ECW212L - wireless access point - 4x4, indoor, lite - Wi-Fi 6 - cloud-managed |
| Device Type | Wireless access point |
| Form Factor | Wall / ceiling mountable - indoor |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1148 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps |
| Capacity | Maximum concurrent users (per radio): 128 ¦ SSIDs total: 8 |
| Included Accessories | Wall/ceiling mounting kit |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Dimensions (WxDxH) | 8.1 in x 1.3 in x 8.1 in |
| Weight | 20.1 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 8.1 in |
| Depth | 1.3 in |
| Height | 8.1 in |
| Weight | 20.1 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 2.5 GBase-T (PoE+) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Wall/ceiling mounting kit |
| Compliant Standards | IC, FCC |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3.5 Gbps |
| Line Coding Format | 256 QAM, 16 QAM, 64 QAM, 1024 QAM, BPSK, QPSK, CCK |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Spread Spectrum Method | OFDMA, OFDM, DSSS |
| Network / Transport Protocol | IPv4, IPv6, HTTP, HTTPs |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, MIB, MIB 2 |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 1148 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps |
| Capacity | Maximum concurrent users (per radio): 128 ¦ SSIDs total: 8 |
| Status Indicators | Power, LAN, 2.4 GHz, 5 GHz |
| Features | 4x4:4 streams, Access Point operational mode, station operational mode, Mesh networking, reset button, 4x4 MU-MIMO technology, 4x4 SU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-SPDU, client load balancing, auto channel selection, Multiple SSID support, Cross-band VLAN Pass Through, SSID to VLAN tagging, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Wi-Fi Multimedia (WMM) support, Private MIB, hide SSID in beacons, client isolation, client access control, security slot (Kensington security lock compatible) |
| Encryption Algorithm | WPA3-PSK, WPA2-PSK, AES |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.11e, IEEE 802.11k, IEEE 802.11r |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 8 |
| Directivity | Omni-directional |
| Gain Level | 5 dBi |
