Motherboard - extended ATX - LGA1851 Socket - Z890 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth, 10 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

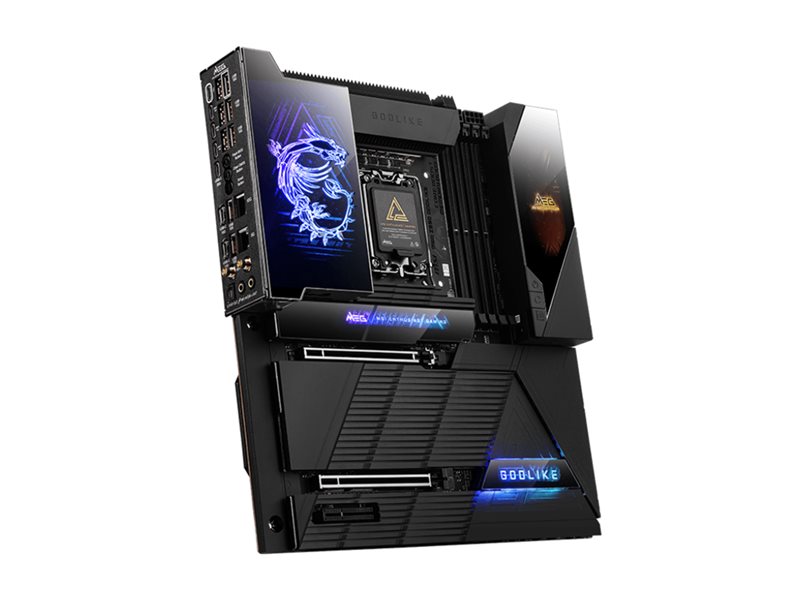

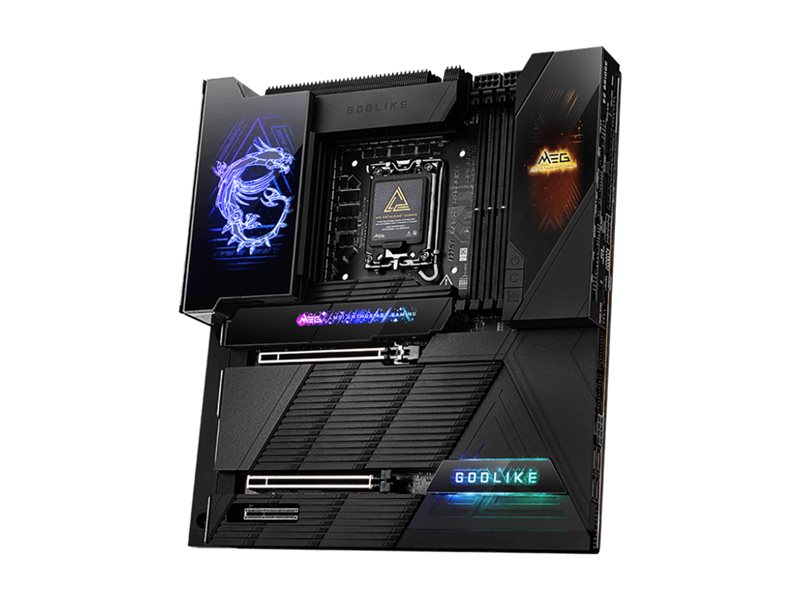

| Product Description | MSI MEG Z890 GODLIKE - motherboard - extended ATX - LGA1851 Socket - Z890 |
| Product Type | Motherboard - extended ATX |
| Chipset Type | Intel Z890 / Nuvoton NCT6687D-M |
| Processor Socket | 1 x LGA1851 Socket |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 6 x M.2 |
| USB / FireWire Ports | 1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 5 x USB-C 3.2 Gen 2 + 8 x USB 3.2 Gen 2 + (1 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 4 x USB-C 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 10 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - extended ATX |
| Chipset Type | Intel Z890 / Nuvoton NCT6687D-M |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 1 x PCIe 4.0 x4 ¦ 4 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x Thunderbolt 4/DisplayPort/USB4 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 5 x USB-C 3.2 Gen 2 ¦ 8 x USB 3.2 Gen 2 ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 2 x antenna ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x Thunderbolt 4 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector, 8-pin PD power connector |
| Miscellaneous | |
| Included Accessories | USB drive, 1 to 2 RGB extension cable, ARGB RGB extension cable, 1 to 3 ARGB Gen 2 extension cable, 2 thermistor cables, EZ front panel cable, 1 to 3 EZ Conn-Cable, EZ link cable, MSI M.2 Xpander-Z Slider Gen5 expansion card, Thunderbolt 5 expansion card, EZ Wi-Fi antenna, cable sticker, M.2 plate screw, EZ Control Hub, EZ Control Hub screw set, EZ M.2 clip II remover, 2 x thermal pads for M.2 SSD |
| Cables Included | 2 x Serial ATA cable ¦ 1 x Thunderbolt header cable |
| Software Included | Drivers & utilities, MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI CPU-Z, MSI App Player, Norton 360, Intel Killer Networking |
| Compliant Standards | DisplayPort 2.1, JEDEC |
| Width | 12 in |
| Depth | 10.9 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4082 / ESS ES9219Q |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, SMBIOS 3.7 support, ACPI 6.5 support, MSI ClickBIOS |
| Hardware Monitoring | CPU core temperature, chassis temperature, fan speed detection, fan control |
| Hardware Features | Dynamic Dashboard III, EZ LED control, power button, reset button, EZ Conn-Design, Clear CMOS Button, flash BIOS button, Smart Button |
| LAN | |
| Network Controller | Intel Killer BE1750x / Intel Killer E5000B / Marvell AQC113CS |
| Network Interfaces | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 10 Gigabit Ethernet |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4800 MHz (O.C.), 3200 MHz (O.C.), 3200 MHz, 2400 MHz, 3600 MHz (O.C.), 2400 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture |
