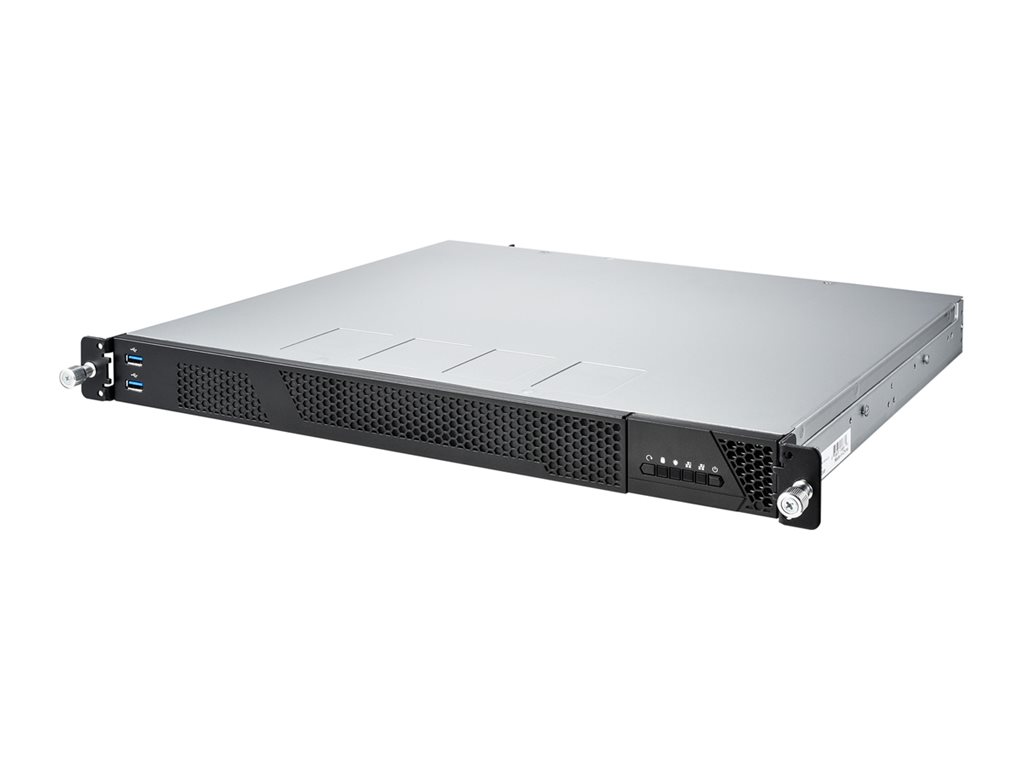

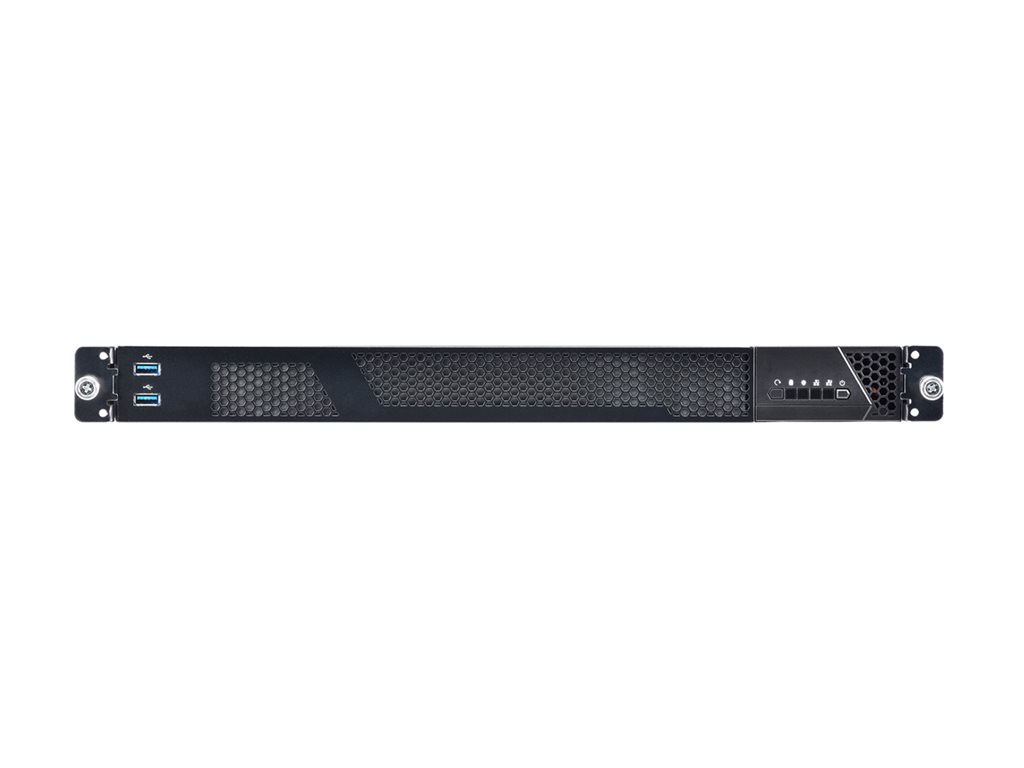

Server - rack-mountable 1U - 1-way - no CPU - SATA - hot-swap 2.5", 3.5" bay(s) - SSD 4, SSD 2 - AST2600 - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|
| Product Description | MiTAC B8016G40V4 - rack-mountable no CPU - SSD 4, SSD 2 |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 1-way |
| Processor | No CPU |
| Processor Socket | Socket AM5 |
| RAM | 192 GB (max) - DDR5 SDRAM |
| Server Storage Bays | Hot-swap 2.5", 3.5" |
| Hard Drive | 4 x SSD (hot-swap) - SATA 6Gb/s |
| Hard Drive (2nd) | 2 x SSD - M.2 |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.3 in x 15.7 in x 1.7 in |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | 3 x fans |
| Sensors | Temperature sensor, voltage sensor |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 4 |
| Hot-Swap Bays Qty | 4 |
| Expansion / Connectivity | |
| Slots | 1 PCIe 5.0 x16 |

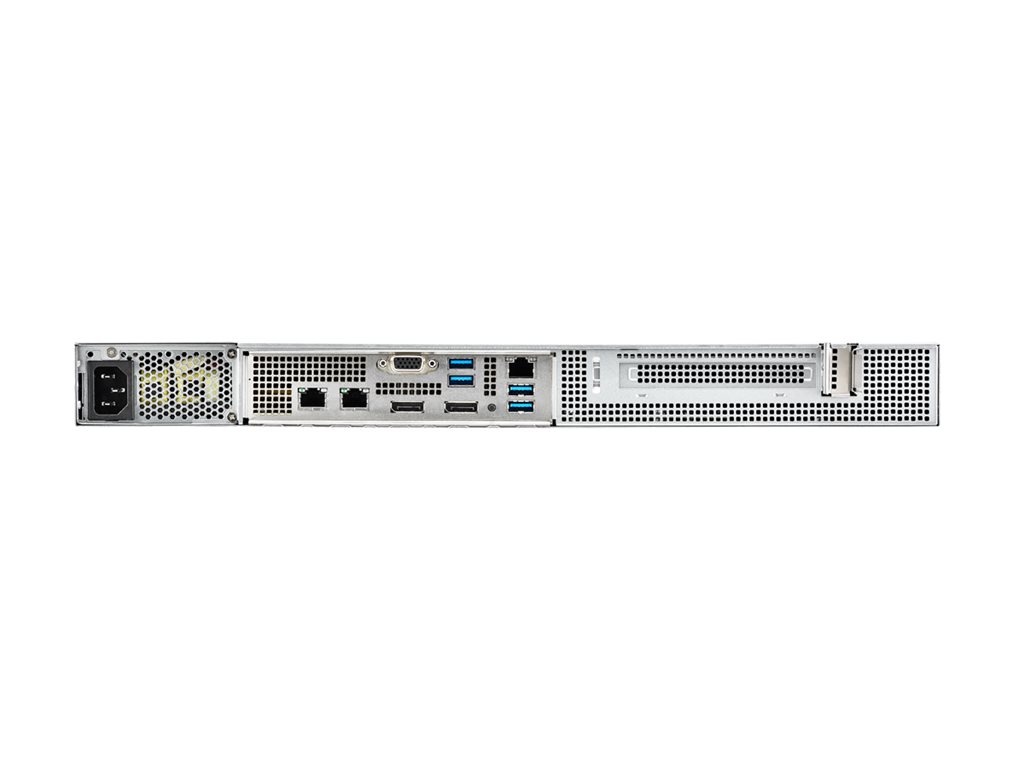

| Interfaces | 1 x USB 3.1 Gen 1 ¦ 4 x USB 3.2 Gen 1 ¦ 3 x VGA - DB-15 ¦ 3 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC SDOC Class A, DOC-A, CB, LVD, RCM, VCCI, BSMI, RoHS |
| RAM | |
| Installed Size | 192 GB (max) |
| Technology | DDR5 SDRAM |
| Slots | 4 (total) / 4 (empty) |
| Networking | |
| Ethernet Ports | 3 x Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8211F |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Aspeed AST2600 |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 300 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | SSD - hot-swap |
| Capacity | 4 |
| Interface Type | SATA 6Gb/s |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 15.7 in |
| Height | 1.7 in |
| Hard Drive (2nd) | |
| Type | SSD - M.2 |
| Capacity | 2 |
| Features | NVM Express (NVMe) |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket AM5 |
| Motherboard Name | S8016GM2NR-1U |
