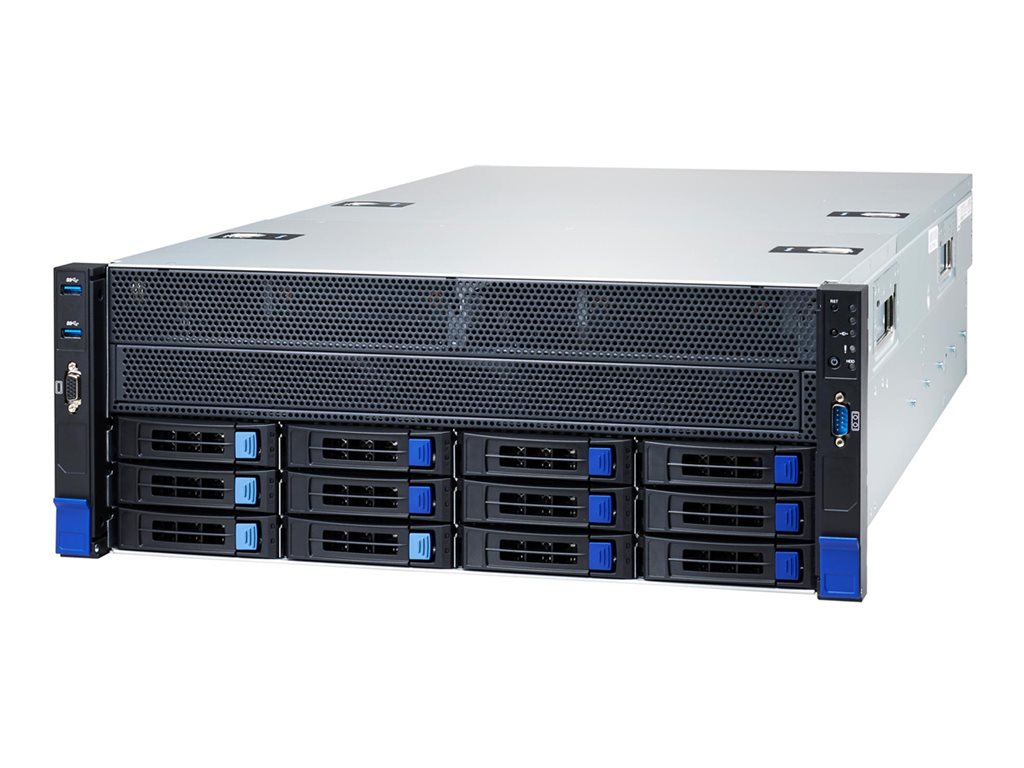

Server - rack-mountable 4U - 2-way - no CPU - RAM 0 GB - SATA/SAS/NVMe - hot-swap 2.5", 3.5" bay(s) - no HDD - AST2600 - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|
| Product Description | MiTAC B7129F83AV8E4HR-N - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 4U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | 2 x LGA4189 Socket |
| RAM | 0 GB (installed) / 8192 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | SATA/SAS (SATA 6Gb/s / SAS 12Gb/s); NVMe (NVM Express U.2) - U.2 (SFF-8654) |
| Server Storage Bays | Hot-swap 2.5", 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.3 in x 32.7 in x 6.9 in |
| Weight | 86.64 lbs |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 4U |
| Built-in Devices | 8 x fans |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 12 |
| Hot-Swap Bays Qty | 12 |
| Expansion / Connectivity | |
| Bays | 12 (total) / 12 (free) x hot-swap 2.5" / 3.5" shared |
| Slots | 13 PCIe 4.0 x16 ¦ 1 Open Compute Project mezzanine (OCP) 3.0 (Mezzanine) |
| Interfaces | 2 x USB 3.0 (2 front) ¦ 1 x VGA ¦ 1 x COM ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC SDOC Class A, CB, LVD, RCM, VCCI, BSMI, sDoC, RoHS |
| RAM | |
| Installed Size | 0 GB (installed) / 8192 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Slots | 32 (total) / 32 (empty) |
| Features | Registered |
| Networking | |
| Ethernet Controller | Realtek RTL8211E |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Aspeed AST2600 |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 3+1 |
| Installed Qty | 4 |
| Max Supported Qty | 4 |
| Voltage Required | AC 200 - 240 V (50/60 Hz) |
| Power Provided | 4800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 35 - 90% (non-condensing) |
| Storage Controller | |
| Type | SATA/SAS |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Storage Controller (2nd) | |
| Type | NVMe - U.2 (SFF-8654) |
| Controller Interface Type | NVM Express U.2 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 32.7 in |
| Height | 6.9 in |
| Weight | 86.64 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 101.41 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | 2 x LGA4189 Socket |
| Chipset Type | Intel C621A |
| Motherboard Name | Tyan S7129GMRE |
