Wireless access point - Wi-Fi 7 - Bluetooth, ZigBee, Wi-Fi 7 - 2.4 GHz, 5 GHz, 6 GHz - desktop / wall / ceiling mountable
| Main Specifications | |
|---|---|

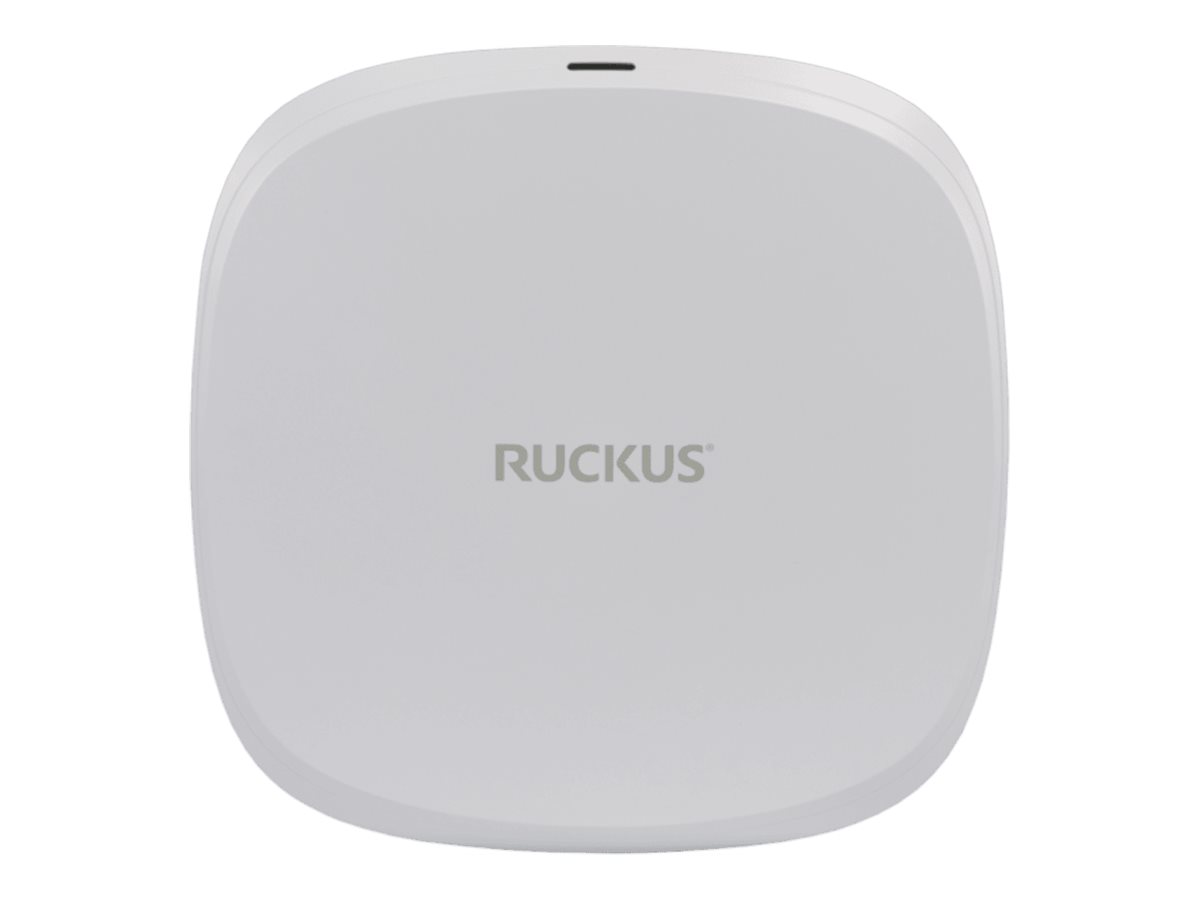

| Product Description | Ruckus R770 - wireless access point - Bluetooth, ZigBee, Wi-Fi 7 |
| Device Type | Wireless access point |
| Form Factor | Desktop / wall / ceiling mountable - indoor |
| Localization | Worldwide |
| Data Link Protocol | Bluetooth, ZigBee, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Channel width: 20 / 40 / 80 / 160 / 320 MHz ¦ Maximum data rate (5 GHz): 5765 Mbps ¦ Maximum data rate (6 GHz): 5765 Mbps ¦ Maximum data rate (2.4 GHz): 689 Mbps |
| Capacity | Concurrent users: 1024 ¦ SSIDs total: 36 |
| Included Accessories | Adjustable acoustic drop ceiling bracket |
| Dimensions (WxDxH) | 9.2 in x 9.2 in x 2.3 in |
| Weight | 3 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 9.2 in |
| Depth | 9.2 in |
| Height | 2.3 in |
| Weight | 3 lbs |
| Localization | Worldwide |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Gb Ethernet - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Adjustable acoustic drop ceiling bracket |
| Compliant Standards | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-5, EN 61000-4-3, EN 61000-4-2, EN 50121-1, EN 50121-4, IEC 61373, UL 2043, EN 62311, WEEE, RoHS, ISTA 2A, IEEE 802.15 |
| Networking | |
| Form Factor | Desktop / wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 12.22 Gbps |
| Data Link Protocol | Bluetooth, ZigBee, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | IPv6, IPv4 |
| Routing Protocol | GRE |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Channel width: 20 / 40 / 80 / 160 / 320 MHz ¦ Maximum data rate (5 GHz): 5765 Mbps ¦ Maximum data rate (6 GHz): 5765 Mbps ¦ Maximum data rate (2.4 GHz): 689 Mbps |
| Capacity | Concurrent users: 1024 ¦ SSIDs total: 36 |
| Features | 2x2:2 streams, 4x4:4 streams, BeamFlex+ Smart Antenna Technology, Backhaul Technology, Bluetooth Low Energy (BLE), Trusted Platform Module 2.0 (TPM 2.0), secure boot, MU-MIMO technology, SU-MIMO technology, Wireless Intrusion Prevention System (WIPS), Wireless Intrusion Detection System (WIDS), beamforming technology, Captive Portal, guest access, HotSpot 2.0, Low Density Parity Check (LDPC), Multi-Link Operation (MLO), PowerSave, preamble puncturing, Space Time Blocking Code (STBC), Web authentication, Wi-Fi Multimedia (WMM) support, WISPr authentication, ChannelFly, adaptive band balancing, Airtime Fairness, Airtime-based WLAN Prioritization, client load balancing, SmartRoam, Quality of Service (QoS), SpeedFlex, Spectrum Analysis, SmartZone, SmartMesh, IPv4 and IPv6 dual stack, VLAN pooling, port-based VLAN, 802.1x authentication, Access Control List (ACL) support, device fingerprinting, rate limit, URL filtering, LLDP support |
| Encryption Algorithm | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, Opportunistic Wireless Encryption (OWE), Dynamic PSK, PMF |
| Authentication Method | RADIUS |
| Compliant Standards | Wi-Fi CERTIFIED 7, IEEE 802.11w, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11be, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.1Q |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Gain Level | 4 dBi |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
