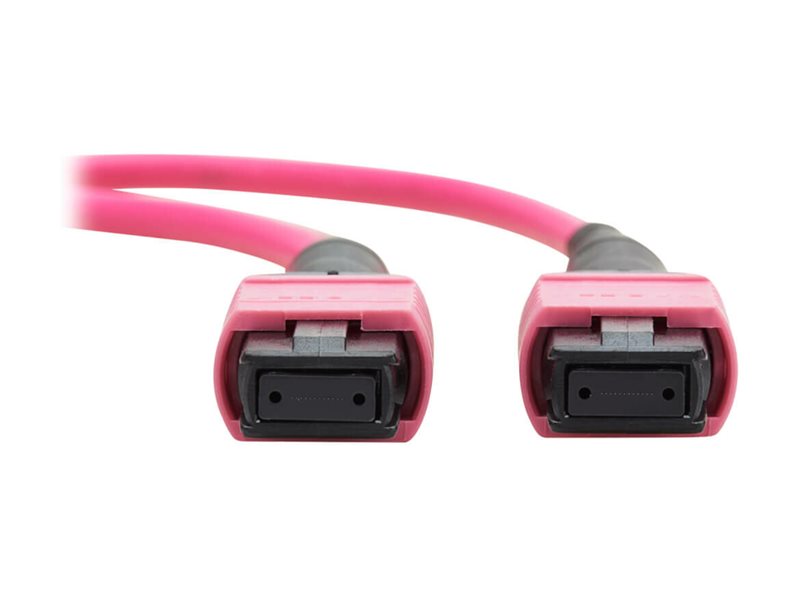

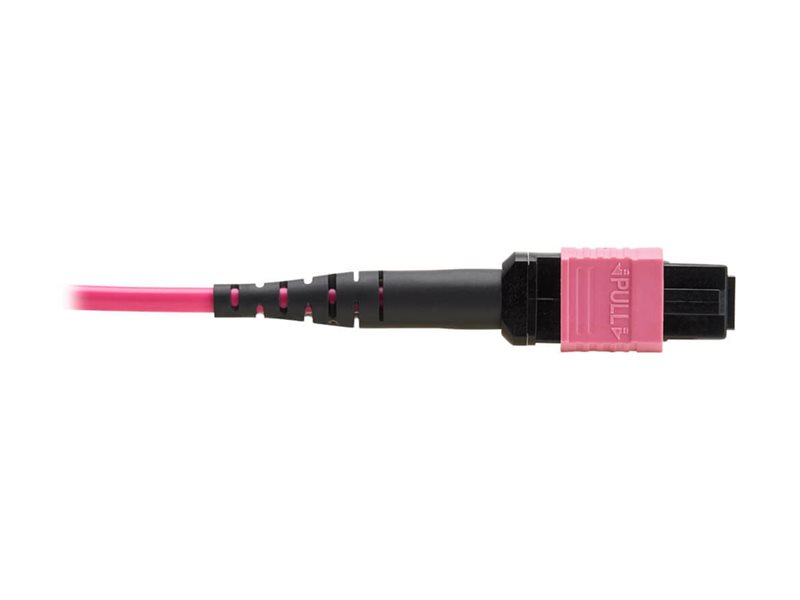

Network cable - TAA Compliant - MPO-12 type-B multi-mode (F) to MPO-12/PC multi-mode (F) - 4 m - 0.1 in - fiber optic - 50 / 125 micron - OM4 - OFNP - aqua
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 100G Multimode 50/125 OM4 Fiber Optic Cable 12F MPO/MPO-PC F/F Type-B Polarity OFNP Magenta 4M TAA - network cable - TAA Compliant - 4 m - aqua |
| Type | Network cable - OM4 - OFNP |
| Technology | Fiber optic |
| Type of Fiber Optics | Multimode |
| Features | 0.6 dB insertion loss, bending radius 10mm (static), bending radius 20mm (dynamic), up to 400 Gbps, 20 dB return loss |
| Length | 4 m |
| Diameter | 0.1 in |
| Core / Cladding Diameter | 50 / 125 micron |
| Connector | MPO-12 type-B multi-mode - female |
| Connector (Second End) | MPO-12/PC multi-mode - female |
| Color | Aqua |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Network cable - OM4 - OFNP |
| Technology | Fiber optic |
| Type of Fiber Optics | Multimode |
| Jacket Material | PVC |
| Fiber Qty | 12 |
| Core / Cladding Diameter | 50 / 125 micron |
| Features | 0.6 dB insertion loss, bending radius 10mm (static), bending radius 20mm (dynamic), up to 400 Gbps, 20 dB return loss |
| Length | 4 m |
| Diameter | 0.1 in |
| Color | Aqua |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | REACH, RoHS |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 158 °F |
| Connectivity | |
| Connector | MPO-12 type-B multi-mode - female |
| Connector (Second End) | MPO-12/PC multi-mode - female |
