Extender Kit - video/audio extender - over CAT 5/5e/6 - up to 230 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series DisplayPort over Cat6 Extender Kit Transmitter/Receiver w Repeater 4K60Hz 4:4:4 Power over Cable TAA - Extender Kit - video/audio extender - TAA Compliant |
| Device Type | Video/audio extender |
| Form Factor | External |
| Localization | Australia, United Kingdom, North America, Europe |
| Transmission Medium | CAT 5/5e/6 |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Color | Black |
| Localization | Australia, United Kingdom, North America, Europe |
| Expansion / Connectivity | |

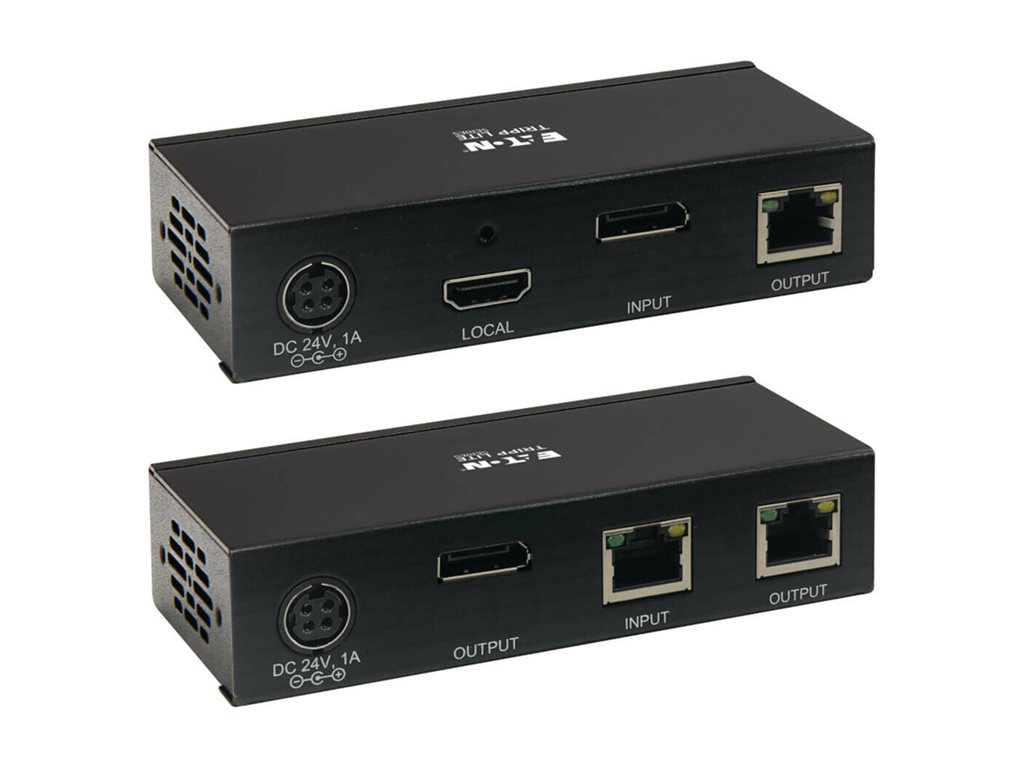

| Interfaces | 1 x DisplayPort (transmitter input) female ¦ 1 x HDMI (transmitter output) - Type A female ¦ 1 x network (transmitter output) - RJ-45 female ¦ 1 x DisplayPort (receiver output) female ¦ 1 x network (receiver output) - RJ-45 female ¦ 1 x network (receiver input) - RJ-45 female ¦ 1 x TOSLINK (transmitter output) female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

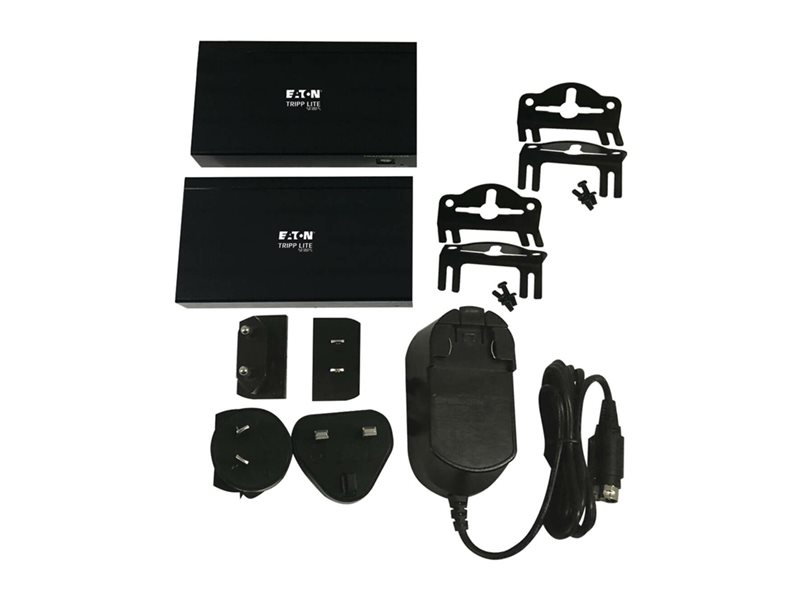

| Included Accessories | 4 power plug adapters |
| Mounting Kit | Included |
| Compliant Standards | EDID compatible, DisplayPort 1.2a, HDCP 1.4, HDCP 2.2, CCC, GS, TUV, UL, cUL, EN 55032, EN 55035, cUL Listed, Mexico NOM, FCC, REACH, RoHS, UKCA, WEEE, Plug and Play |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Power |
| Features | 4:4:4 chroma subsampling support, extended display mode, daisy-chaining support, video mirror mode, 32-bit Deep Color support, 3D support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, metal housing, CEC support, zero latency, integrated equalizer |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 4.5 in x 2.5 in x 1.1 in / 15.9 oz ¦ Receiver: 4.5 in x 2.5 in x 1.1 in / 15.9 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.2 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2.2 in |
| Shipping Weight | 19.75 oz |
