Barebone - mini PC 1 x Celeron 7305 - RAM 0 GB - UHD Graphics 620 - Gigabit Ethernet - black
| Main Specifications | |
|---|---|
| Product Description | Shuttle XPC nano NC40U - mini PC Celeron 7305 1.1 GHz - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Processor | 1 x Intel Celeron 7305 / 1.1 GHz (5-core) |
| Cache Memory | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | 0 GB (installed) / 64 GB (max) - DDR4 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 620 |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| OS Provided | No operating system |
| Color | Black |
| Dimensions (WxDxH) | 5.6 in x 5.6 in x 1.7 in |
| Weight | 14.11 oz |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" x 1/8H |
| Slots | 2 (total) / 2 (free) x M.2 Card - 2280 |

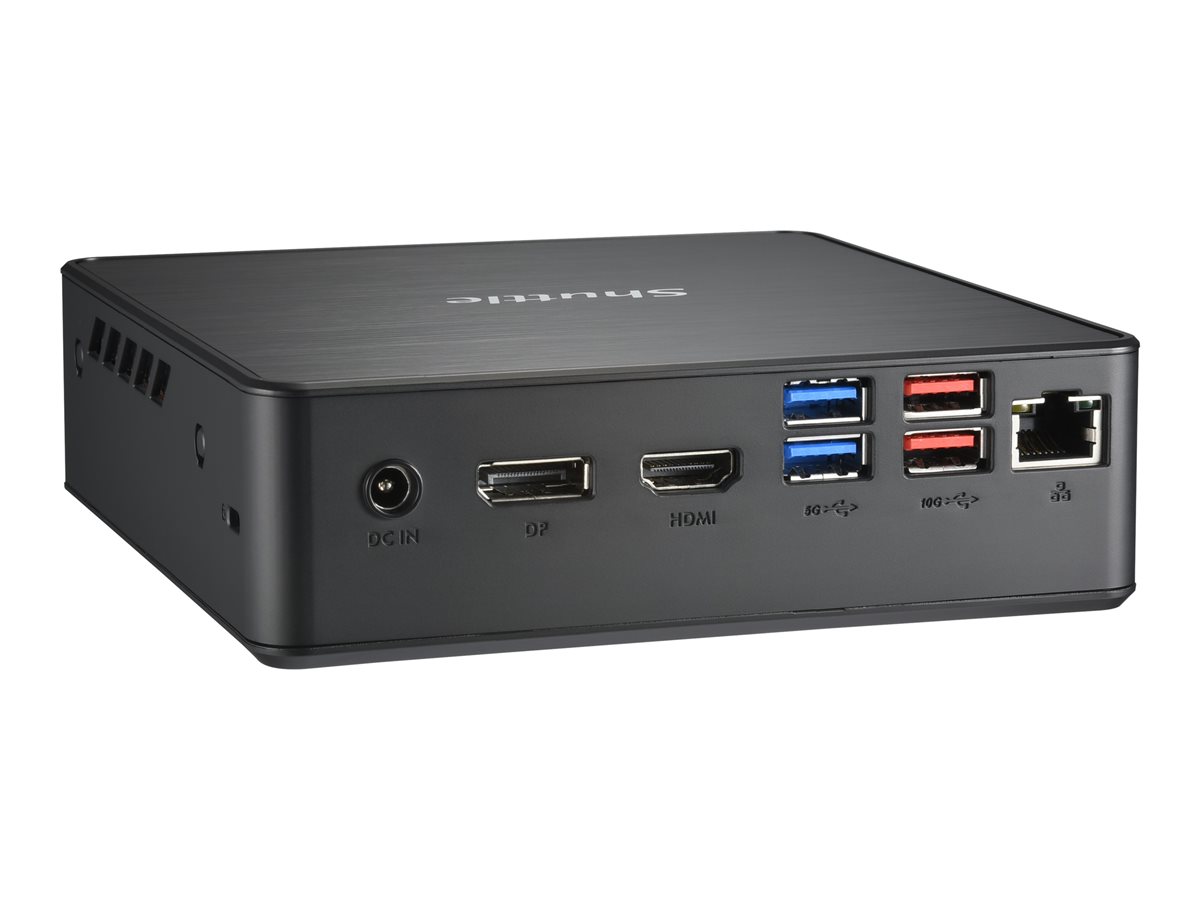

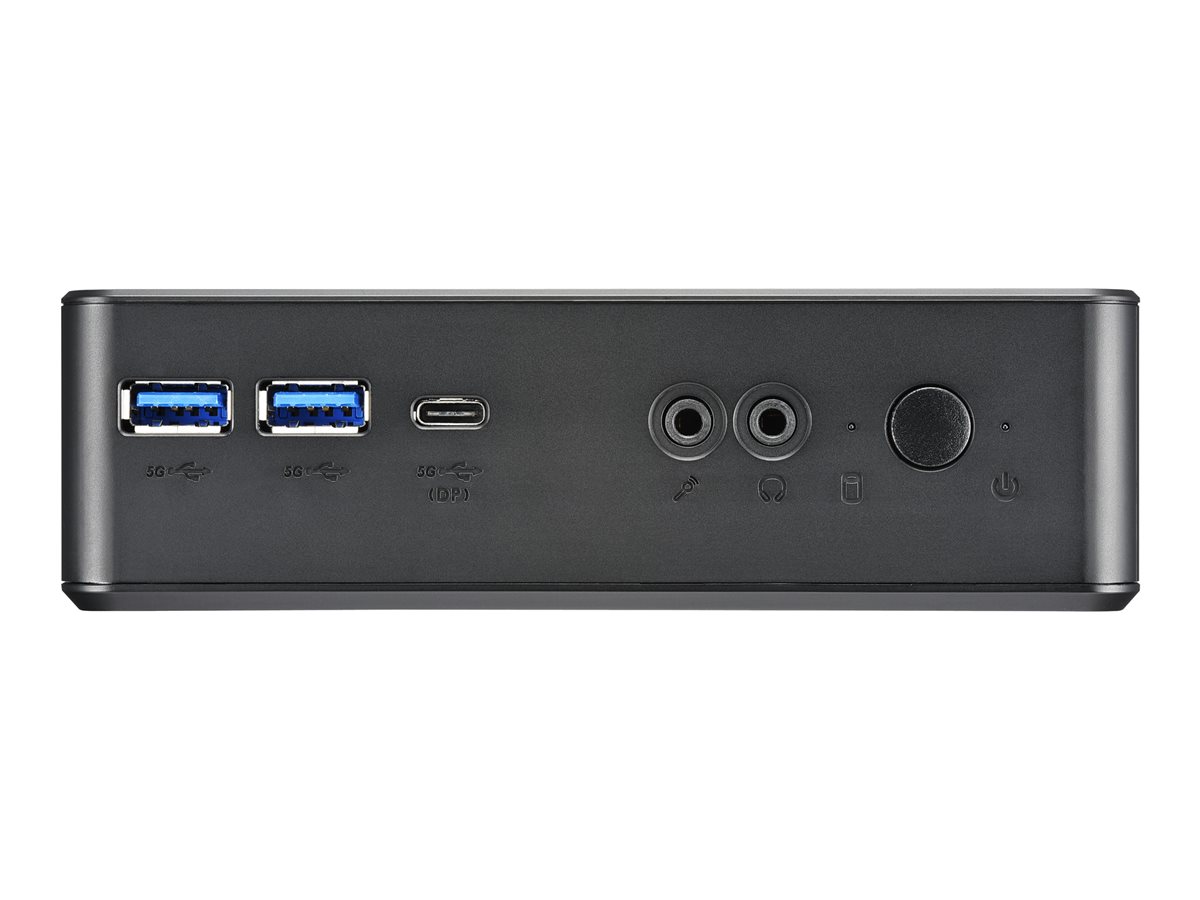

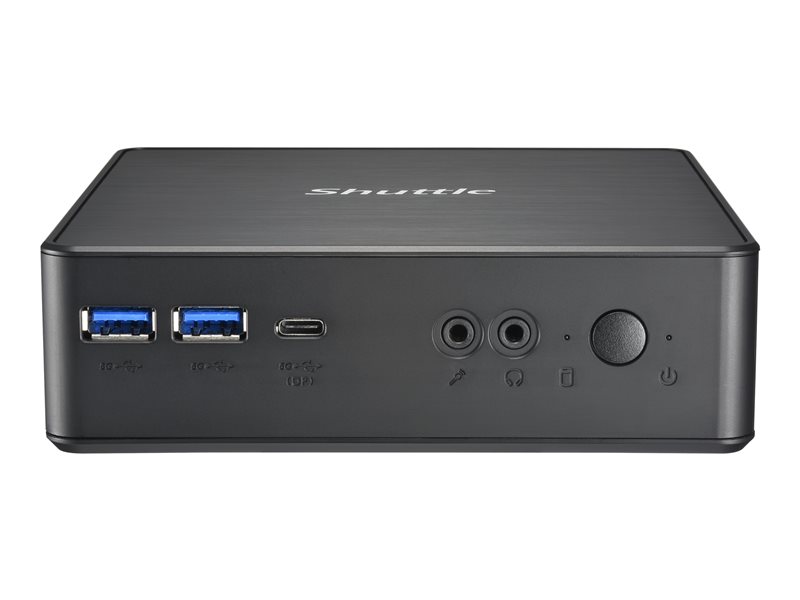

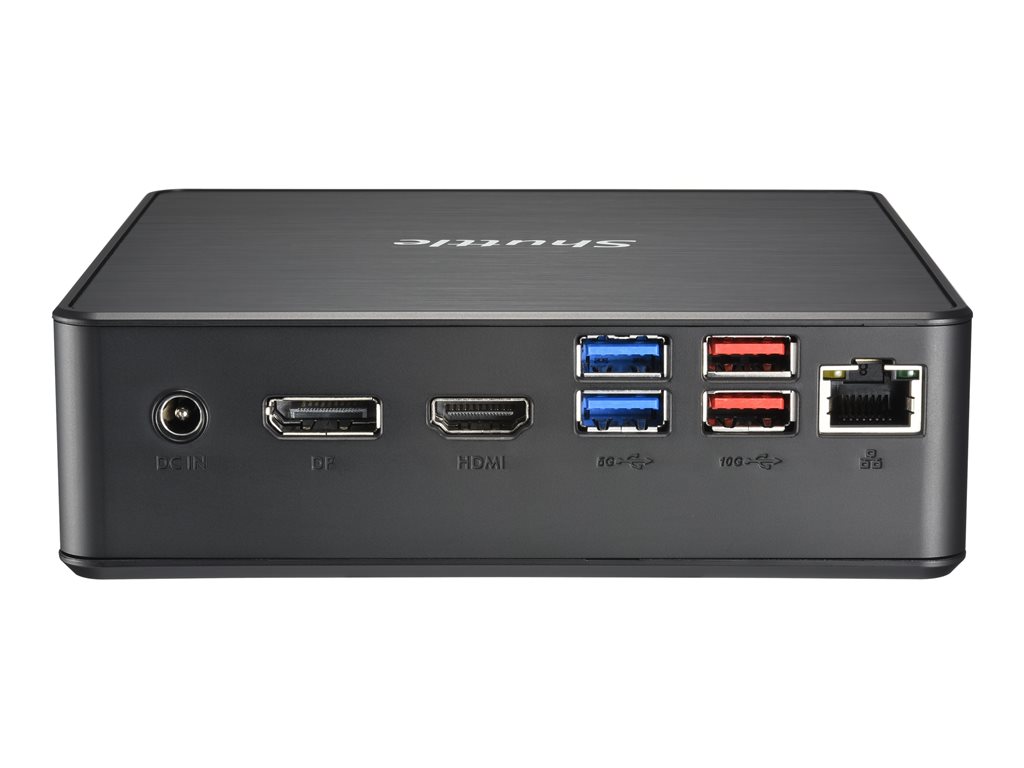

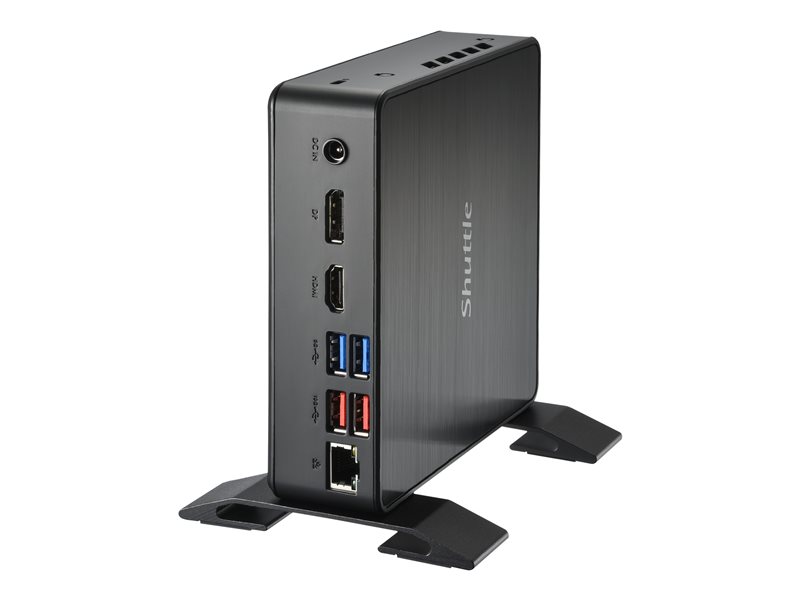

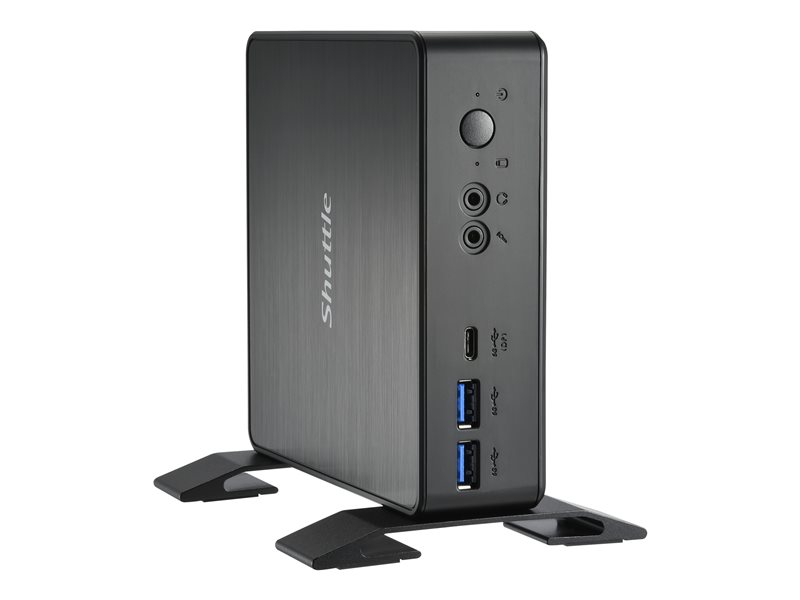

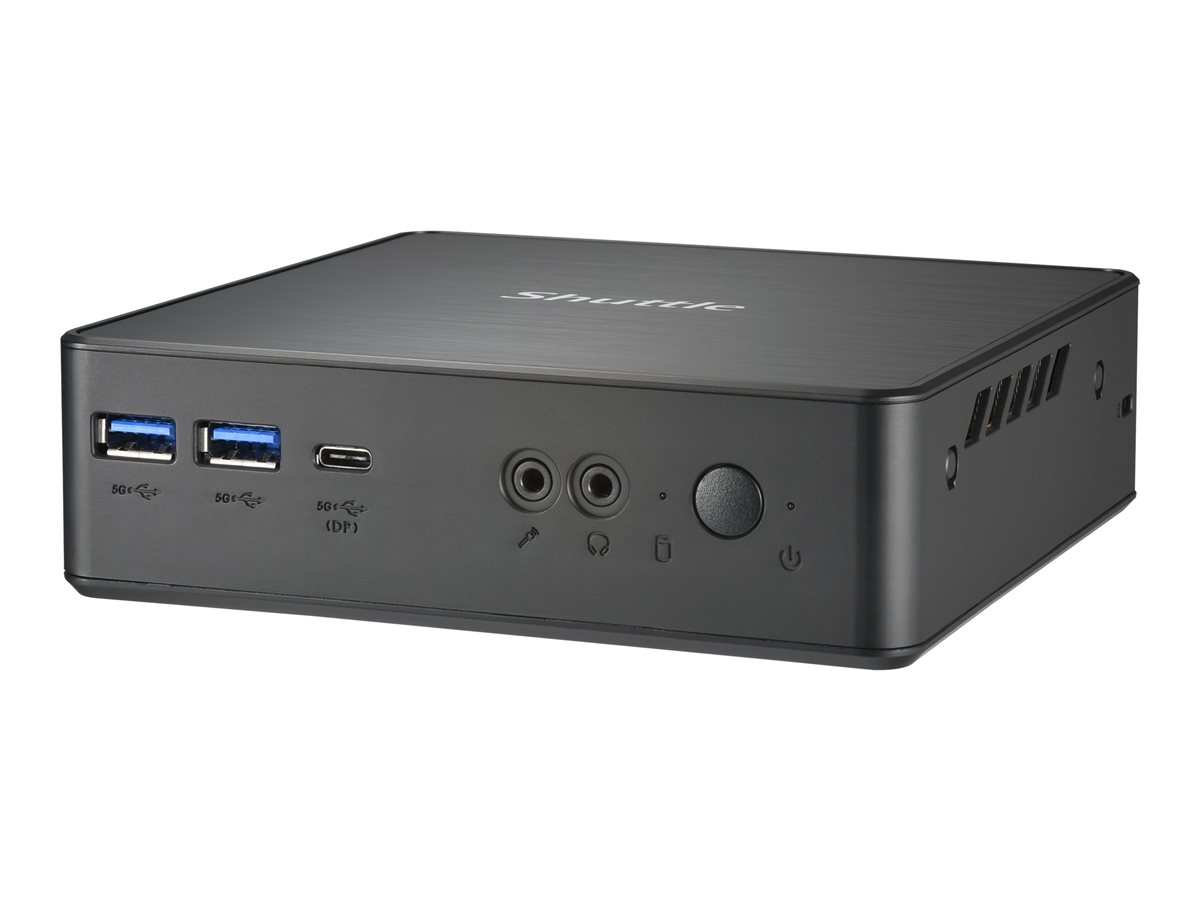

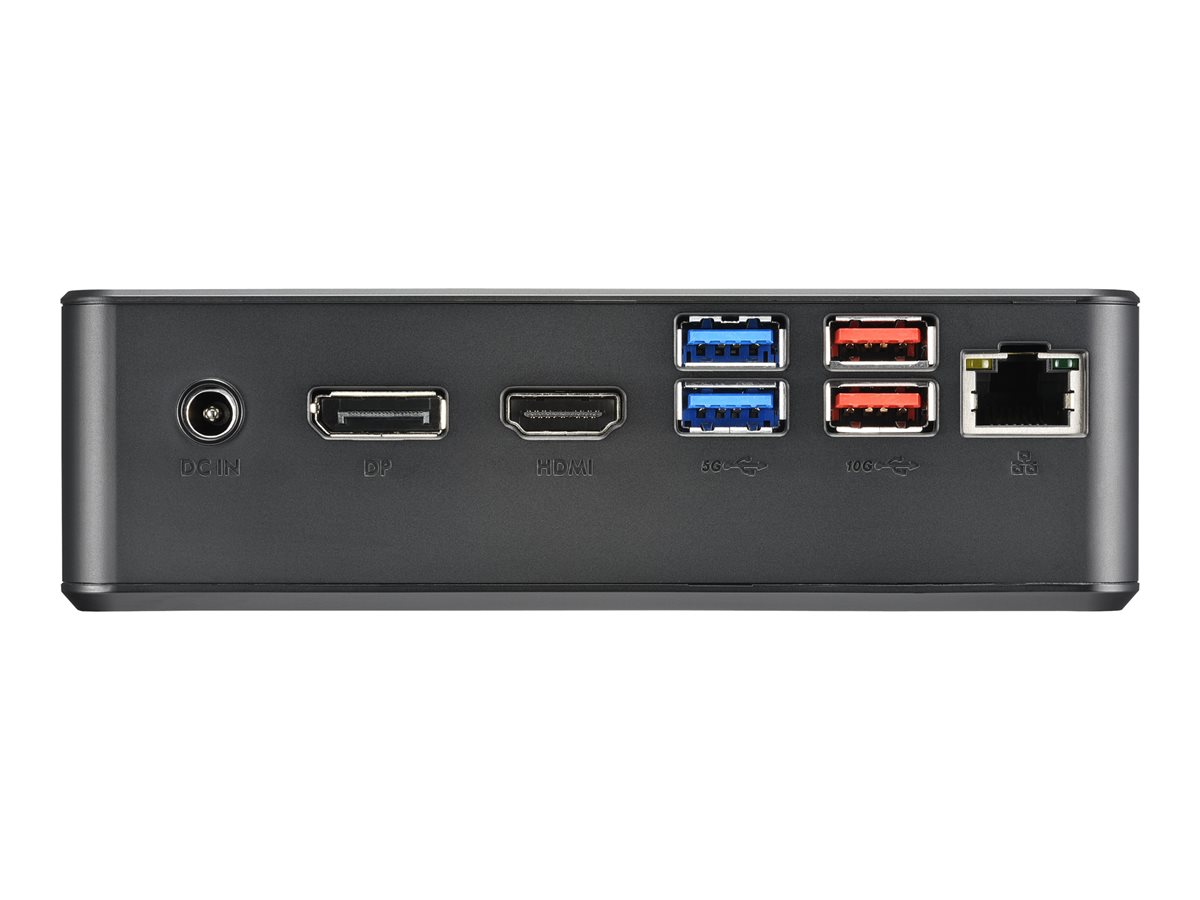

| Interfaces | 6 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.1 Gen 2 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x audio line-out/headphones ¦ USB 3.1 Gen 2 ¦ 1 x microphone |
| Miscellaneous | |

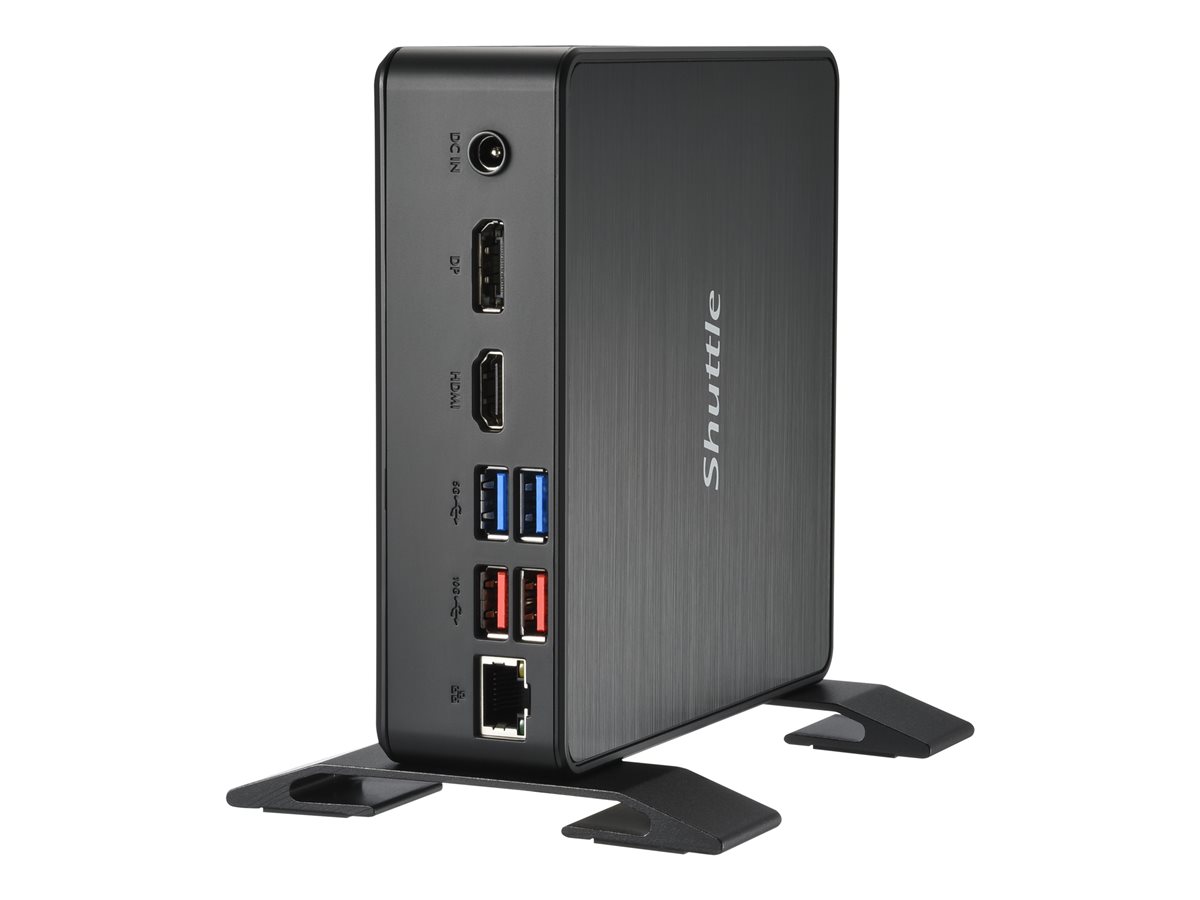

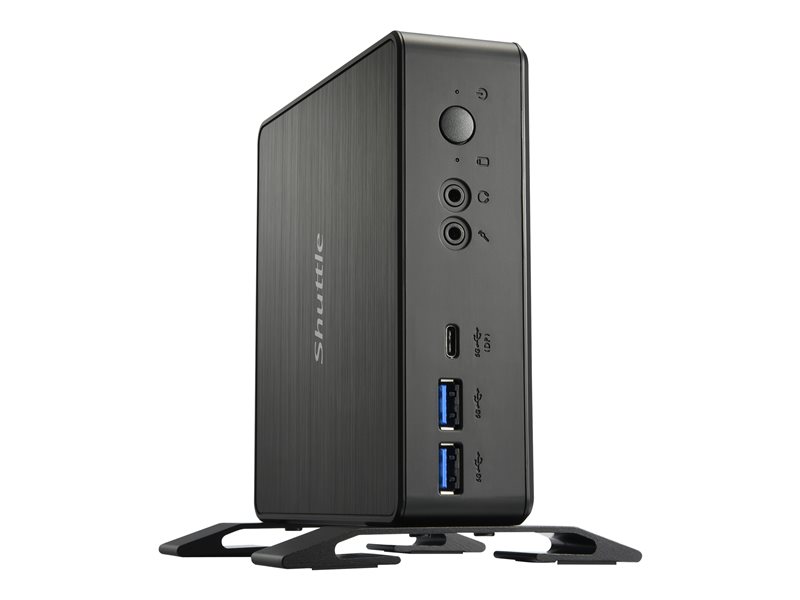

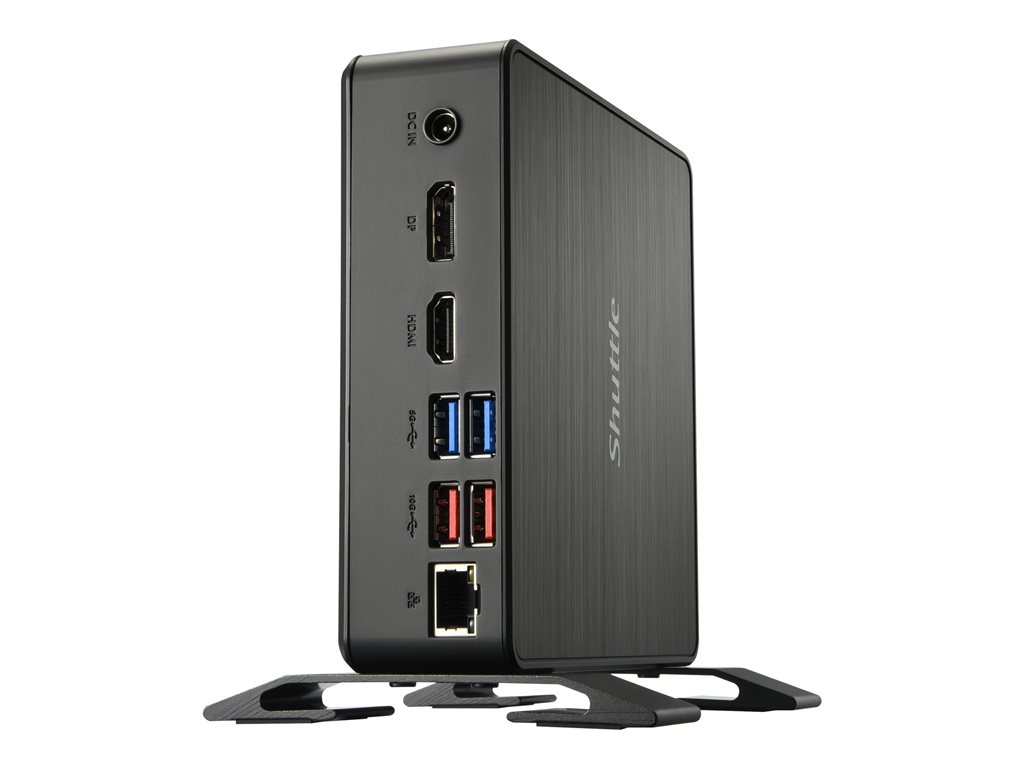

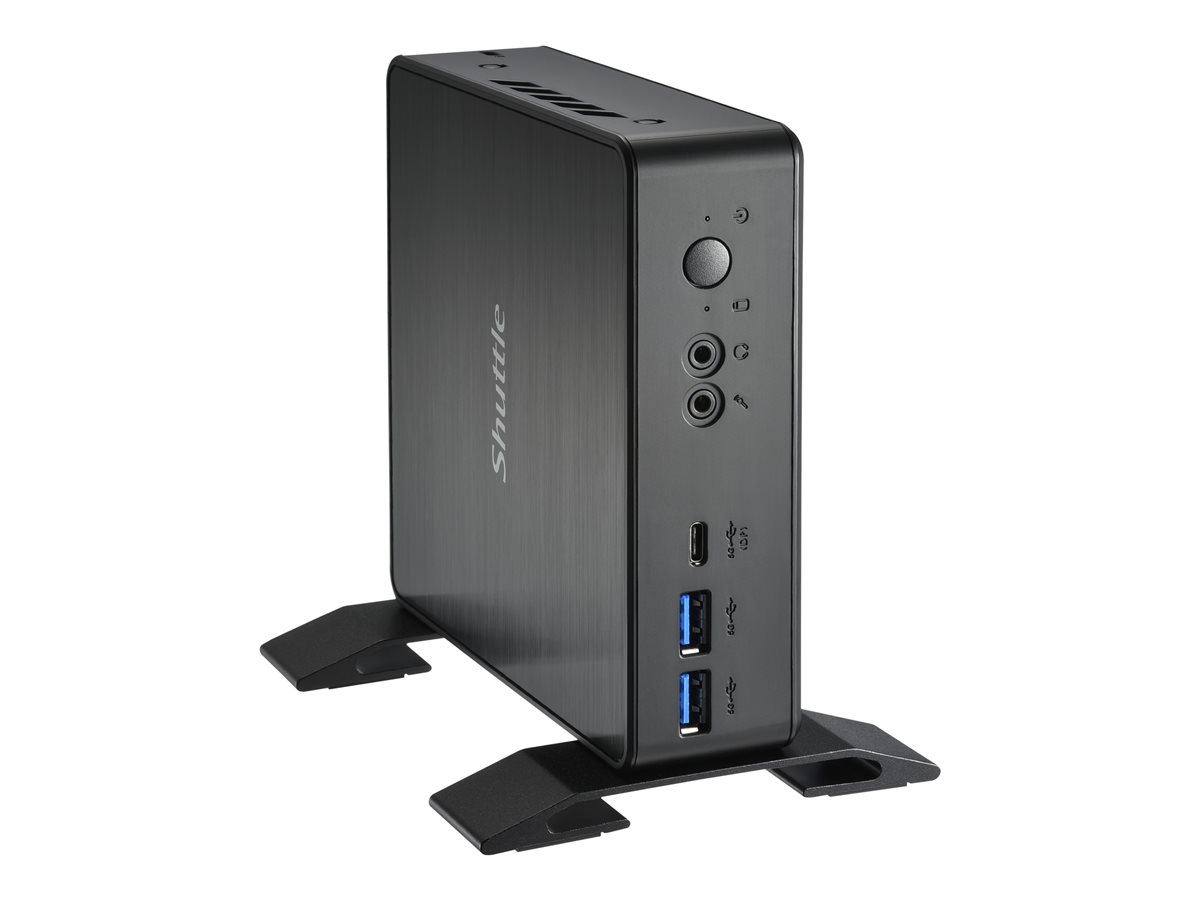

| Included Accessories | Horizontal feet, VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| RAM | |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Networking | |
| Ethernet Controller | Intel I219 |
| Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 watt |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 620 |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5.6 in |
| Depth | 5.6 in |
| Height | 1.7 in |
| Weight | 14.11 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.65 lbs |
| Processor / Chipset | |
| CPU | Intel Celeron 7305 |
| Clock Speed | 1.1 GHz |
| Number of Cores | 5-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
