Motherboard - extended ATX - Socket sTR5 - AMD TRX50 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2 - 2 x 10 Gigabit LAN, Bluetooth, Wi-Fi 7 - HD Audio (8-channel)
| Main Specifications | |
|---|---|

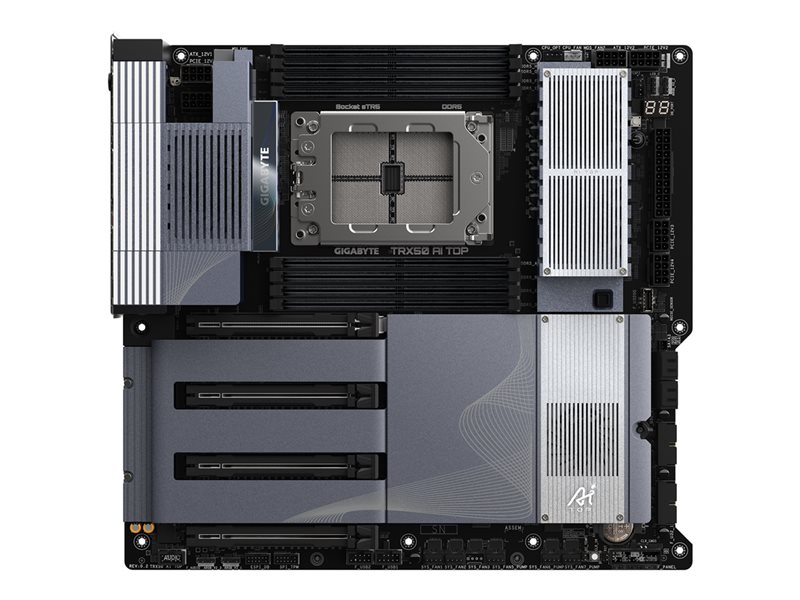

| Product Description | Gigabyte TRX50 AI TOP - motherboard - extended ATX - Socket sTR5 - AMD TRX50 |
| Product Type | Motherboard - extended ATX |
| Chipset Type | AMD TRX50 |
| Processor Socket | 1 x Socket sTR5 |
| Compatible Processors | Ryzen ThreadRipper, Ryzen ThreadRipper PRO (supports Ryzen Threadripper PRO 7000 Series / 7000 Series) |
| Max RAM Size | 2 TB |
| RAM Supported | 8 DIMM slots - DDR5, ECC, registered, 3DS-RDIMM |
| Storage Ports | 4 x SATA-600 (RAID), 4 x M.2 |
| USB / FireWire Ports | 2 x USB4 + 6 x USB 3.2 Gen 2 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2 x 10 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| General | |
| Product Type | Motherboard - extended ATX |
| Chipset Type | AMD TRX50 |
| Processor Socket | Socket sTR5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen ThreadRipper, Ryzen ThreadRipper PRO (supports Ryzen Threadripper PRO 7000 Series / 7000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 ¦ 4 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 4 x M.2 |
| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x antenna ¦ 1 x DisplayPort ¦ 6 x USB 3.2 Gen 2 ¦ 1 x USB4 ¦ 1 x USB4/DisplayPort |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Width | 12 in |
| Depth | 13 in |
| Package Details | Box |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 / Realtek ALC897 |
| Compliant Standards | High Definition Audio, DTS:X Ultra |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, noise detection, fan speed detection, temperature detection |
| Hardware Features | Q-Flash, EZ Plug, Ultra Durable, Q-Flash Plus, RGB FUSION, pre-mounted I/O shield, DIY Friendly Design, GIGABYTE Smart Fan 6, MultiKey, 110A Power Stage, 14 Layer PCB, M.2 Thermal Guard Ext., M.2 EZ Latch click, M.2 EZ Latch plus, PCIe EZ Latch Plus, 16+8+4 Phase Power Design, VRM Thermal Armor Advanced |
| LAN | |
| Network Controller | Qualcomm QCNCM865 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Supported RAM | |
| Max Size | 2 TB |
| Technology | DDR5 |
| Bus Clock | 2400 MHz, 2800 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 4000 MHz (O.C.) |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, 3DS-RDIMM |
| Features | Intel Extreme Memory Profiles (XMP), 8-channel memory architecture, AMD EXPO technology |
