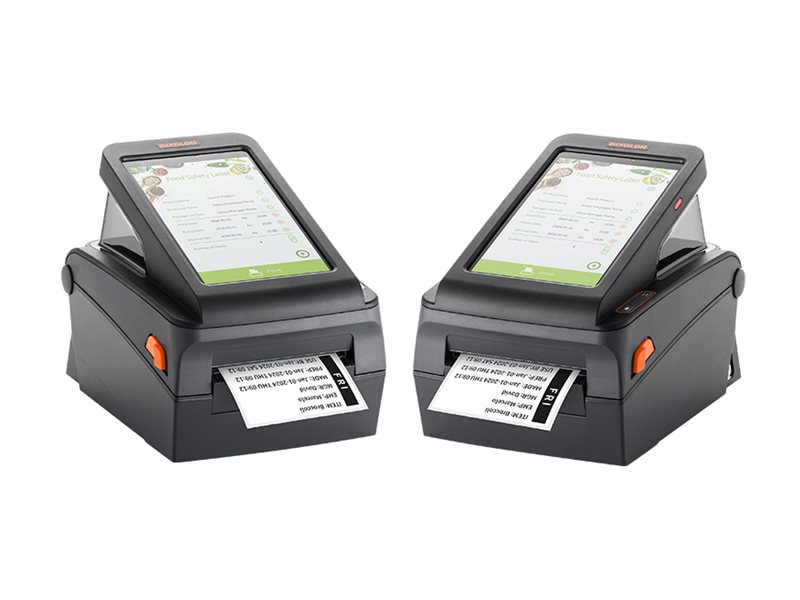

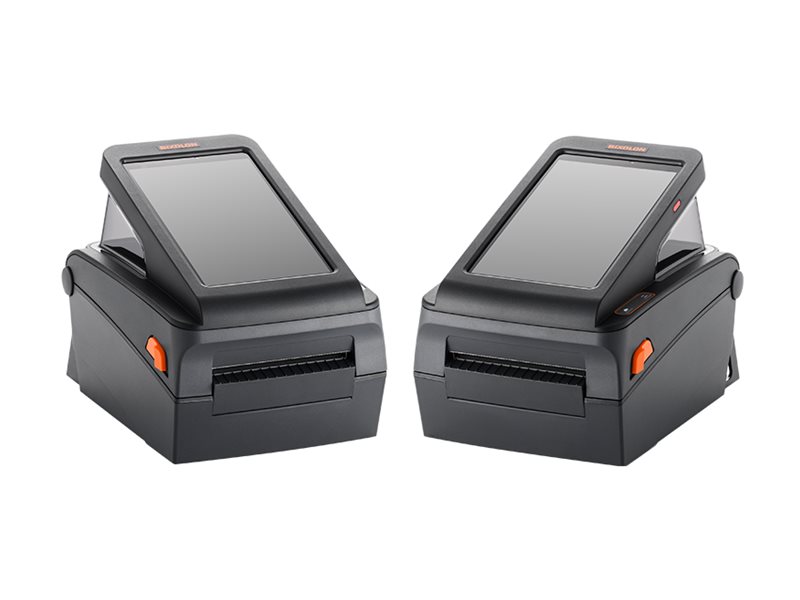

Label printer - direct thermal - Roll (4.65 in) - 203 dpi - up to 359.1 inch/min - USB host, Wi-Fi, Bluetooth, USB
| Main Specifications | |
|---|---|
| Product Description | BIXOLON XQ-840II - label printer - B/W - direct thermal |
| Printer Type | Label printer - direct thermal - B/W |
| Weight | 5.34 lbs |
| Max Media Size | Roll (4.65 in) |
| Min Media Size (Custom) | 0.59 in |
| Max Media Size (Custom) | 4.65 in |
| Print Speed | Up to 359.1 inch/min - max speed |
| Max Resolution (B&W) | 203 dpi |
| Interface | USB host, Wi-Fi, Bluetooth, USB |
| Preview Screen Size | 8" |
| Processor | Quad Core 2 GHz |
| RAM Installed (Max) | 512 MB SDRAM |
| Flash Memory Installed (Max) | 512 MB |
| Language Simulation | SLCS, BPL-Z, ZPL II, BPL-E, BXL, EPL |
| Barcodes | Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar (RSS), Standard 2 of 5, UPC/EAN extension, UPC-A, UPC-E, IMB, ISBT 128, Aztec code, CODABLOCK, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC39 |
| Media Type | Gap, black mark labels, notch, continuous fanfold labels |
| Fonts | Unicode |
| Power | AC 100-240 V |
| System Requirements | Android |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 7.6 in x 10.7 in x 8.4 in |
| General | |
| Printer Type | Label printer - direct thermal - monochrome |
| Expansion / Connectivity | |
| Connections | 2 x USB host ¦ 1 x USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Power cable |
| Features | Dust-resistant, water-resistant |
| Printer | |
| Print Speed | Up to 359.1 inch/min - max speed - 203 dpi |
| Built-in Devices | Tablet, camera |
| Preview Screen Size | 8" |
| Connectivity Technology | Wireless |
| Interface | USB host, Wi-Fi, Bluetooth, USB |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SLCS, BPL-Z, ZPL II, BPL-E, BXL, EPL |
| Fonts | Unicode |
| Fonts Included | 10 x bitmapped SLCS ¦ 16 x bitmapped BPL-Z ¦ 5 x bitmapped BPL-E ¦ 1 x scalable SLCS ¦ 1 x scalable BPL-Z |
| Barcodes | Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar (RSS), Standard 2 of 5, UPC/EAN extension, UPC-A, UPC-E, IMB, ISBT 128, Aztec code, CODABLOCK, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC39 |
| Processor | |
| Processor | Quad Core 2 GHz |
| RAM | |
| RAM Installed (Max) | 512 MB |
| Technology / Form Factor | SDRAM |
| Media Handling | |
| Media Type | Gap, black mark labels, notch, continuous fanfold labels |
| Max Media Size | Roll (4.65 in) |
| Min Media Size (Custom) | 0.59 in |
| Max Media Size (Custom) | 4.65 in |
| Media Sizes | Roll (4.65 in) |
| Max Printing Width | 4.25 in |
| Max Printing Length | 39.4 in |
| Media Thickness Range | 0.0024 in - 0.008 in |
| Roll Maximum Outer Diameter | 5.1 in |
| Media Feeders | 1 x manual - 1 roll - Roll (4.65 in) |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, BIXOLON Utility, Label Artist Mobile, Label Artist Web, Food Labelling app |
| OS Required | Android |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 105.8 °F |
| Humidity Range Operating | 10 - 80% RH |
| Flash Memory | |
| Flash Memory | 512 MB |
| Dimensions & Weight | |
| Width | 7.6 in |
| Depth | 10.7 in |
| Height | 8.4 in |
| Weight | 5.34 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
