Network adapter - PCIe 5.0 x16 - 200 Gigabit QSFP112 x 2 - for P/N: HCIVS220C-M8E3S, UCSC-C225-M8N, UCSC-C240-M8E3S
| Main Specifications | |
|---|---|

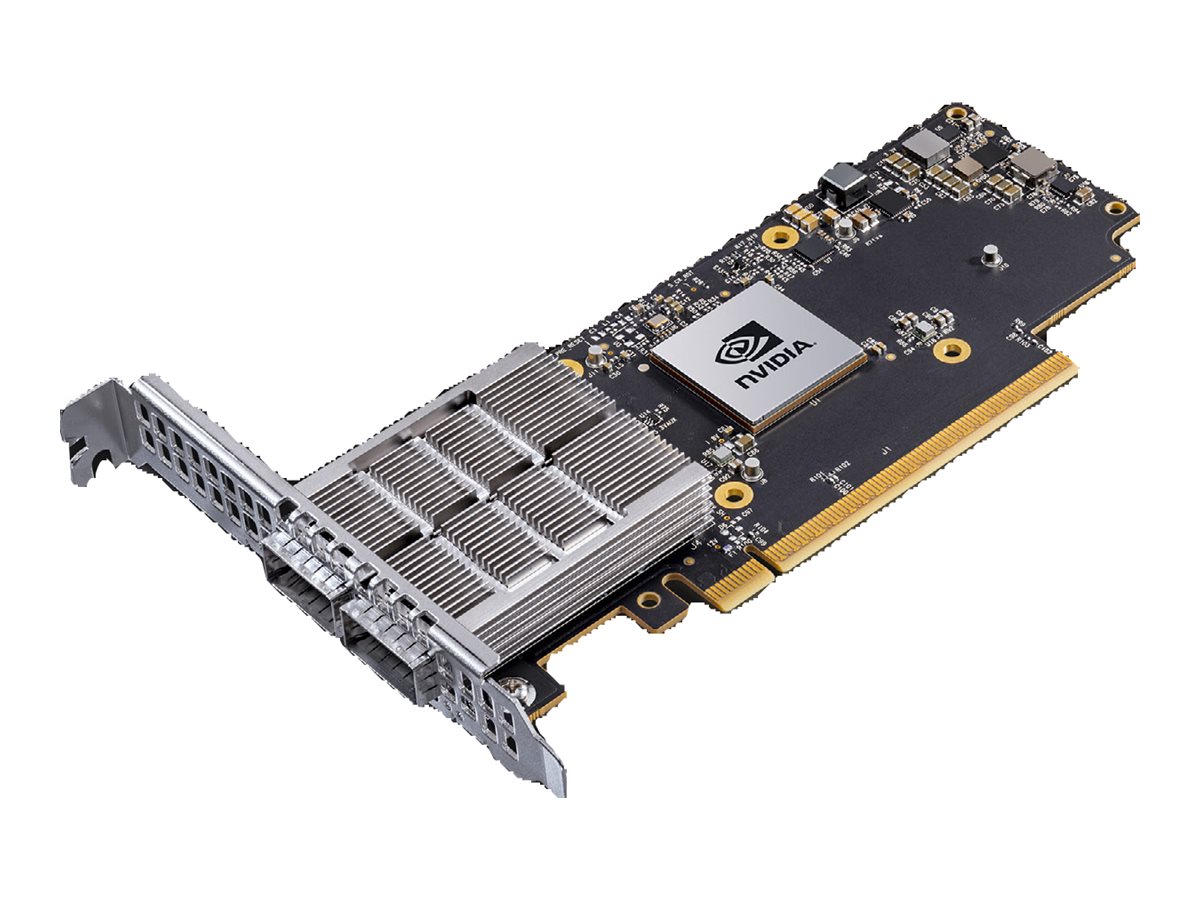

| Product Description | NVIDIA ConnectX-7 MCX755106AS-HEAT - network adapter - PCIe 5.0 x16 - 200 Gigabit QSFP112 x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 5.0 x16 |
| Ports | 200 Gigabit QSFP112 x 2 |
| Dimensions (WxDxH) | 2.7 in x 6.6 in |
| Data Link Protocol | 200GbE, 200 Gigabit InfiniBand, 100GbE, 100 Gigabit InfiniBand, 50GbE, 25GbE, 10GbE |
| Data Transfer Rate | 200 Gbps |
| Performance | Bandwidth: 400 Gbps |
| Network / Transport Protocol | TCP, SRP, iSCSI, NFS, SMB, MCTP |
| Compliant Standards | IEEE 1149.1, IEEE 1149.6 |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: HCIVS220C-M8E3S, UCSC-C225-M8N, UCSC-C240-M8E3S |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 5.0 x16 |
| Expansion / Connectivity | |
| Interfaces | 2 x 200Gb Ethernet / 200Gb Infiniband - QSFP112 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years |
| Miscellaneous | |
| Encryption Algorithm | 256-bit AES-XTS, 512-bit AES-XTS |
| Networking | |
| Ports | 200 Gigabit QSFP112 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 200 Gigabit Ethernet, 200 Gigabit InfiniBand, 100 Gigabit Ethernet, 100 Gigabit InfiniBand, 50 Gigabit Ethernet, 25 Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 200 Gbps |
| Performance | Bandwidth: 400 Gbps |
| Network / Transport Protocol | TCP, SRP, iSCSI, NFS, SMB, MCTP |
| Remote Management Protocol | SMBus, PLDM |
| Line Coding Format | PAM4, NRZ |
| Features | HHHL, crypto disabled, secure boot, RoCE, SDN, VNF support, OVS, VxLAN tunneling, GENEVE support, NVGRE, firewall protection, flow mirroring, QoS, SR-IOV, XRC transport, DCT, UMR, ODP, collective operations offloads, NVIDIA SHARP, Rendezvous protocol offload, NVMe-oF, iSER, NC-SI, SPI, secure JTAG, UEFI support, PXE support, firmware upgradable, DPC, MSI-X, MSI |
| Compliant Standards | IEEE 1149.1, IEEE 1149.6 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Dimensions & Weight | |
| Depth | 2.7 in |
| Height | 6.6 in |
| Compatibility Information | |
| Designed For | P/N: HCIVS220C-M8E3S, UCSC-C225-M8N, UCSC-C240-M8E3S |
