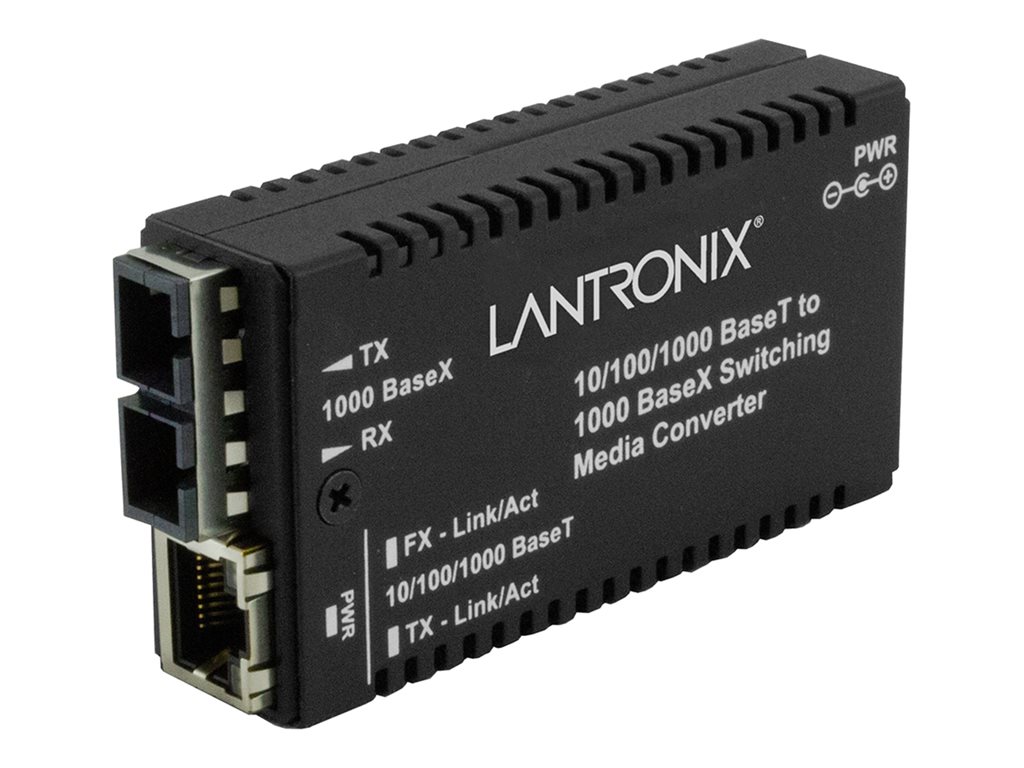

Fiber media converter - 1GbE - 1000Base-T, 100Base-TX, 10Base-T, 1000Base-LX - RJ-45 / SC single-mode - up to 6.2 miles - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix M/GE-PSW Series - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SC single-mode |
| Form Factor | External |
| Localization | North America |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T, 1000Base-LX |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 6.2 miles |
| Dimensions (WxDxH) | 1.8 in x 3.3 in x 0.9 in |
| Weight | 31.74 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 1000Base-LX - SC single-mode female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, UL, cUL, FCC Class A certified, CISPR 22 Class A, EN 55022 Class A, EN55024 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T, 100Base-TX, 10Base-T, 1000Base-LX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Status Indicators | Power, link/activity |
| Features | Auto-negotiation, full duplex mode, auto-uplink (auto MDI/MDI-X), Active Link Pass Through function (ALPT), Automatic Link Restoration, Jumbo Frames support (up to 10240 bytes), 10.5 dB link budget |
| Compliant Standards | IEEE 802.3 |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 3.15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 3.3 in |
| Height | 0.9 in |
| Weight | 31.74 oz |
