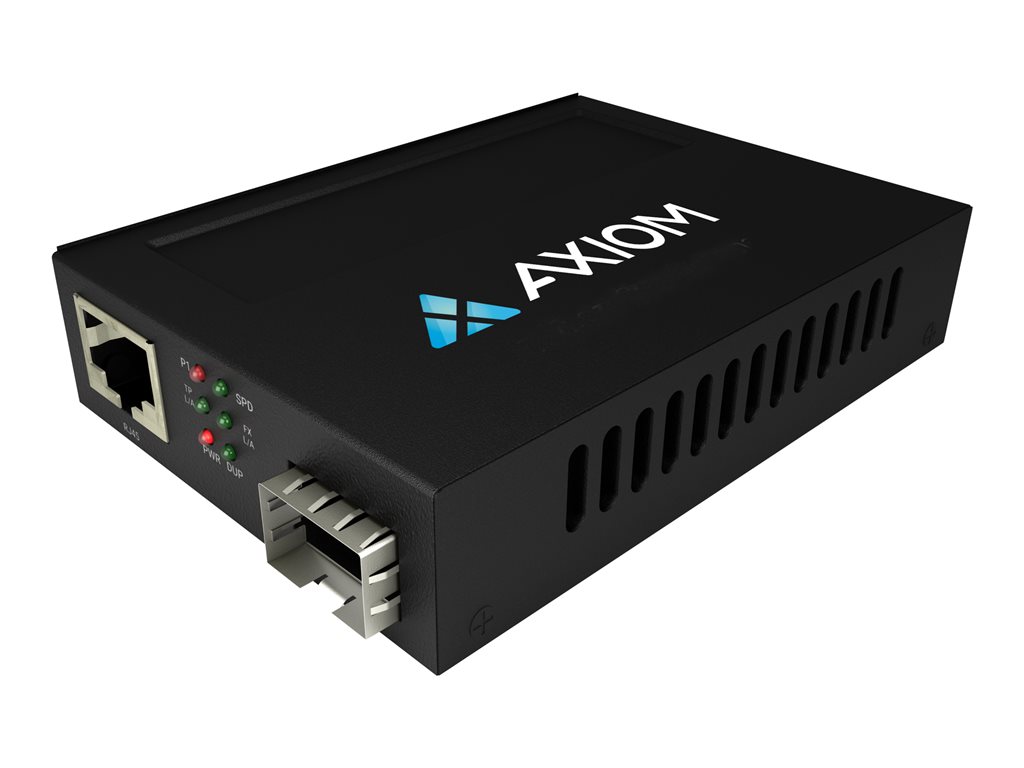

Fiber media converter - 100Mb LAN - over CAT 5e/6 - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SFP (mini-GBIC) - up to 1.2 miles - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Axiom POE (PSE) Series - fiber media converter - 100Mb LAN - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 100Mb LAN |
| Transmission Medium | CAT 5e/6 |
| Max Transfer Distance | 1.2 miles |
| Power Over Ethernet (PoE) | PoE |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year limited warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX (PoE) - RJ-45 female - 15.4 W ¦ 1 x Ethernet 1000Base-FX (multi-mode) - SFP female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| MTBF | 65,000 hours |
| Compliant Standards | FCC Class A certified |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 1.2 miles |
| Features | Store and forward, Link Fault Pass Through function (LFP), over-current protection, metal housing, Power Sourcing Equipment (PSE) |
| Compliant Standards | IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Power Consumption Operational | 60 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
