Motherboard - mini ITX - LGA1851 Socket - Z890 Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

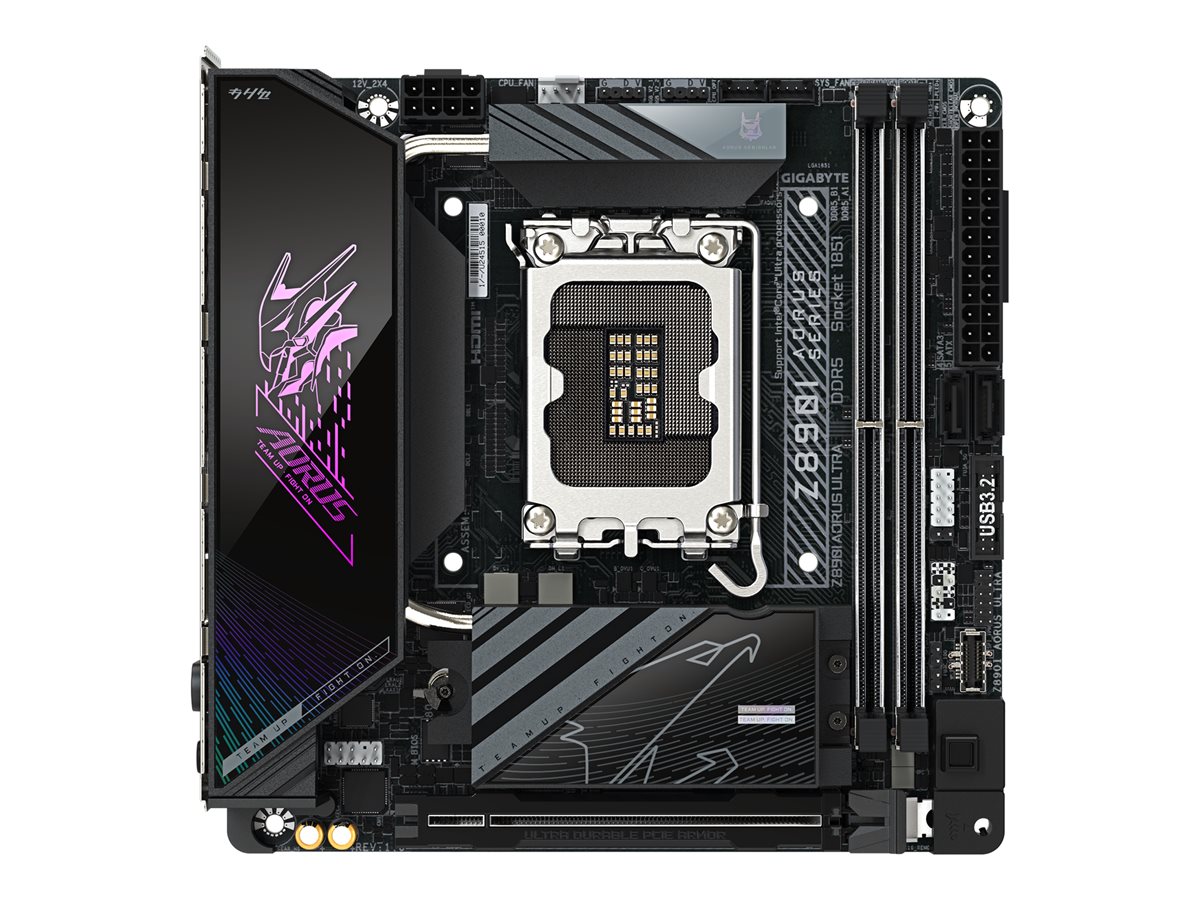

| Product Description | AORUS Z890I ULTRA - motherboard - mini ITX - LGA1851 Socket - Z890 |
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel Z890 Express |
| Processor Socket | 1 x LGA1851 Socket |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Max RAM Size | 128 GB |
| RAM Supported | 2 DIMM slots - DDR5, non-ECC, ECC (operate in non-ECC mode), unbuffered |
| Storage Ports | 2 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire Ports | 1 x USB4 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| General | |
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel Z890 Express |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out ¦ 1 x USB4 ¦ 3 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x antenna |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Software Included | Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager |
| Compliant Standards | HDCP 2.3, DisplayPort 2.1 |
| Width | 6.7 in |
| Depth | 6.7 in |
| Package Details | Box |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | Q-Flash, 8+1+2 Phase Power Design, 105A Power Stage, 10 Layer PCB, 2x Copper PCB, Premium Power Choke, VRM Thermal Armor Advanced, pre-mounted I/O shield, M.2 Thermal Guard Ext., High-end Audio Capacitors, RGB FUSION 2.0, EZ Plug, EZ Debug LED, DIY Friendly Design, M.2 EZ Latch plus, M.2 EZ Latch click, PCIe EZ Latch Plus, Ultra Durable, AI Overclocking, GIGABYTE Smart Fan 6, Audio Noise Guard |
| LAN | |
| Network Controller | Intel Wi-Fi 7 BE202 |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 2800 MHz, 2900 MHz, 3000 MHz, 3100 MHz, 3200 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3700 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 3950 MHz (O.C.), 3975 MHz (O.C.), 4000 MHz (O.C.), 4100 Mhz (O.C), 4133 MHz (O.C.), 4200 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
