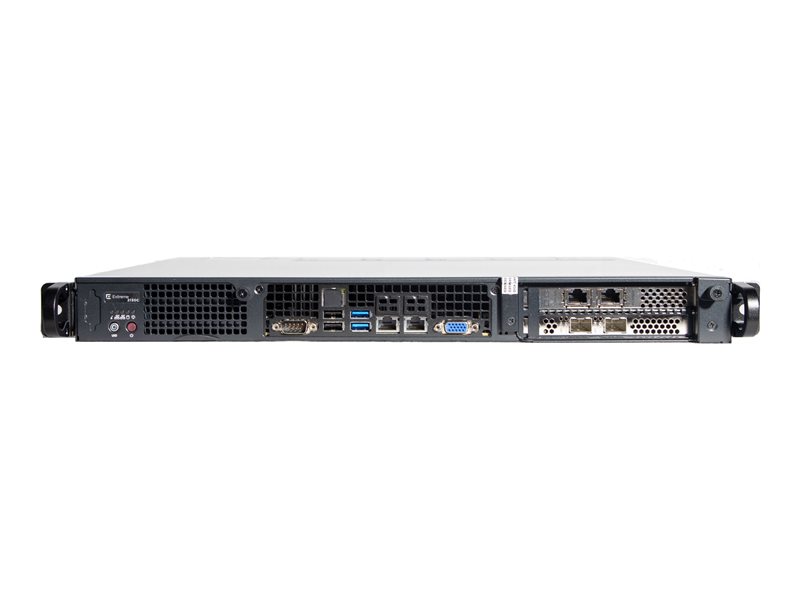

Network management device - 10GbE, 25GbE - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Extreme Networks Universal Compute Platform 2130C - network management device |
| Device Type | Network management device |
| Form Factor | Rack-mountable |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 15.7 in x 1.7 in |
| Weight | 19.22 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network management device |
| Width | 17.2 in |
| Depth | 15.7 in |
| Height | 1.7 in |
| Weight | 19.22 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x 1/10GBase-T - RJ-45 ¦ 2 x 1/10/25GBase-X - SFP28 ¦ 4 x USB 2.0 - Type A ¦ 2 x USB 3.2 - Type A ¦ 1 x console - DB-9 ¦ 2 x clustering - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| MTBF | 136,889 hours |
| Compliant Standards | FCC, EMC, VCCI, BSMI, CCC, WEEE |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Status Indicators | Clustering, HDD activity, power |
| Features | Clustering technology |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 800 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
