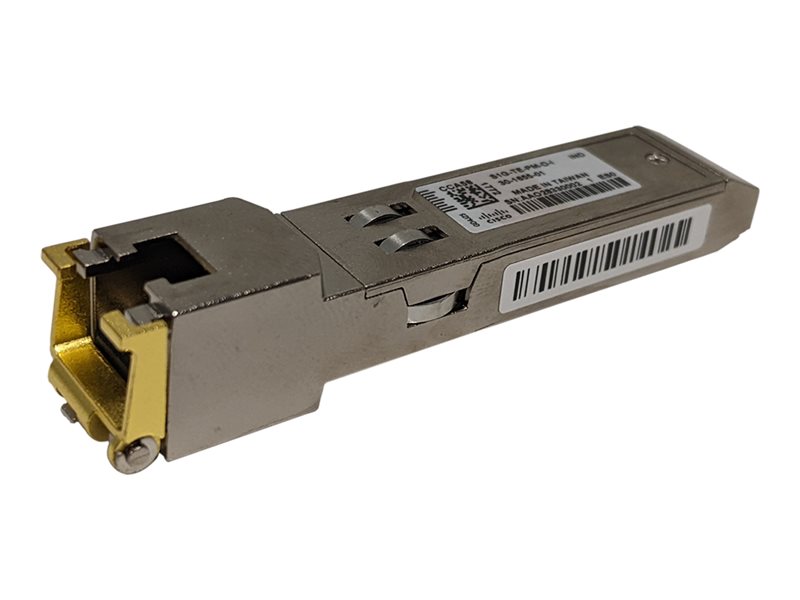

SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-T, 100Base-TX - RJ-45 - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | Cisco - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module - RJ-45 |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-T, 100Base-TX |
| Data Link Protocol | 1GbE |
| Remote Management Protocol | DHCP |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 0.5 in x 2.5 in x 0.3 in |
| Weight | 2.65 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - return to factory - 1 year |
| Miscellaneous | |
| Compliant Standards | GR-3108, IEC 60603-7, Laser Class 1, WEEE |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T, 100Base-TX |
| Data Link Protocol | 1GbE |
| Remote Management Protocol | DHCP |
| Max Transfer Distance | 328 ft |
| Features | Digital Optical Monitoring (DOM) support, Zero-touch provisioning (ZTP) |
| Power | |
| Power Consumption Operational | 3 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.5 in |
| Height | 0.3 in |
| Weight | 2.65 oz |
