Network surveillance camera - multi-sensor - dome - color (Day&Night) - 3840 x 2160 - auto iris - vari-focal - audio - GbE - MJPEG, H.264, H.265 - High PoE Class 8 - TAA Compliant
| Main Specifications | |
|---|---|

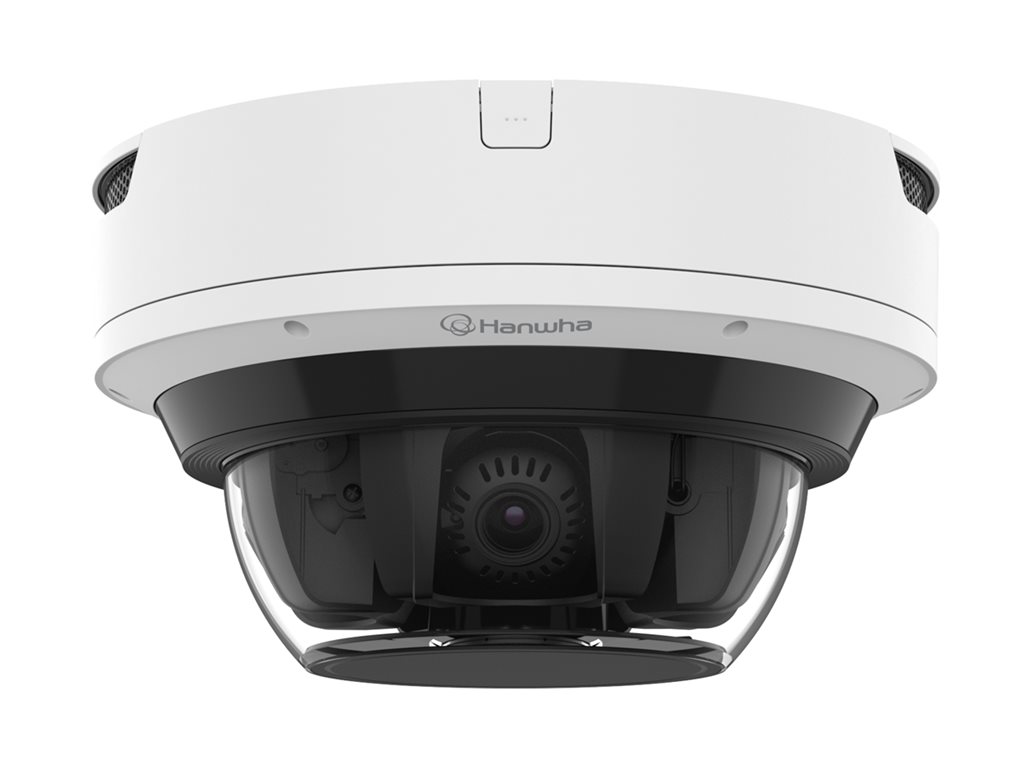

| Product Description | Hanwha Vision PNM-C32084RQZ-8XE4T-W - network surveillance camera - dome - TAA Compliant |
| Device Type | Network surveillance camera - multi-sensor - dome |
| Audio | Yes |
| Dimensions (WxDxH) | 12.4 in x 12.4 in x 7.1 in |
| Weight | 13.45 lbs |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 2.13 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 20 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/1.8" |
| Minimum Illumination | 0.07 lux - color - F1.3 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Focal Length Control | Vari-focal |
| Focal Length | 4.38 mm - 833 mm |
| Focus Adjustment | Automatic (min distance 4.3 ft) |
| Lens Iris | F/1.3-2.15 - auto iris (P-Iris) |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 30 to 90 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Control Interface | RJ-45 |
| Voltage | High PoE Class 8 |
| Features | Object Detection, vehicle type classification, face detection, Person Detection, license plate detection, entrance / exit detection, loitering detection, Virtual Line detection, WiseNR II, Lens Distortion Compensation (LDC), WiseStream III support, hard-coated dome, Defocus Detection, tamper-detection, Audio Detection, sound classification, Hallway View, TPM 2.0 module, 90° image rotation, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, auto ICR, Privacy Mask Function, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), reverse function (flip and mirror), notification picture to FTP, notification picture to E-mail, trigger recording, Handover, Unicast Streaming, Multicast Streaming, IP address filtering, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Variable Bitrate (VBR), Constant Bitrate (CBR), user access log, digest authentication, 2 microSD card slots |
| TAA Compliant | Yes |
| Environmental Parameters (operating) | -40 °F - 131 °F; 0 - 100% RH relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 12.4 in |
| Depth | 12.4 in |
| Height | 7.1 in |
| Weight | 13.45 lbs |
| Expansion / Connectivity | |
| Ports | LAN (PoE output) - RJ-45 ¦ Alarm I/O |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | FIPS 140-2 Level 2 |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | NDAA, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA Type 4X, IEEE 802.1x, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEEE 802.3bt |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | High PoE Class 8 |
| Software / System Requirements | |
| Software Included | Wisenet WAVE |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 100% RH |
| Camera | |
| Type | Color - Day&Night - multi-sensor |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.07 lux - color - F1.3 - 30 IRE - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on |
| Infrared LEDs | Yes |
| Infrared Distance | 82 ft |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Frame Rate (max) | 20 frames per second |
| RAM | 8 GB |
| Flash Memory | 64 GB |
| Features | Object Detection, vehicle type classification, face detection, Person Detection, license plate detection, entrance / exit detection, loitering detection, Virtual Line detection, WiseNR II, Lens Distortion Compensation (LDC), WiseStream III support, hard-coated dome, Defocus Detection, tamper-detection, Audio Detection, sound classification, Hallway View, TPM 2.0 module, 90° image rotation, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, auto ICR, Privacy Mask Function, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), reverse function (flip and mirror), notification picture to FTP, notification picture to E-mail, trigger recording, Handover, Unicast Streaming, Multicast Streaming, IP address filtering, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Variable Bitrate (VBR), Constant Bitrate (CBR), user access log, digest authentication, 2 microSD card slots |
| Lens Construction | |
| Type | Vari-focal |
| Optical Zoom | 2.13 x |
| Focal Length | 4.38 mm - 833 mm |
| Lens Iris | F/1.3-2.15 auto iris (P-Iris) |
| Focus Adjustment | Automatic |
| Min Focus Distance | 4.3 ft |
| Horizontal Field of View (degree) | 47 - 113 |
| Vertical Field of View (degree) | 26 - 58 |
| Diagonal Field of View (degree) | 54 - 138 |
| Image Sensor | |
| Type | CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, MQTT |
| Control Interface | RJ-45 |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 30 to 90 |
