Camcorder - 4K / 120 fps - 19.29 MP
| Main Specifications | |
|---|---|

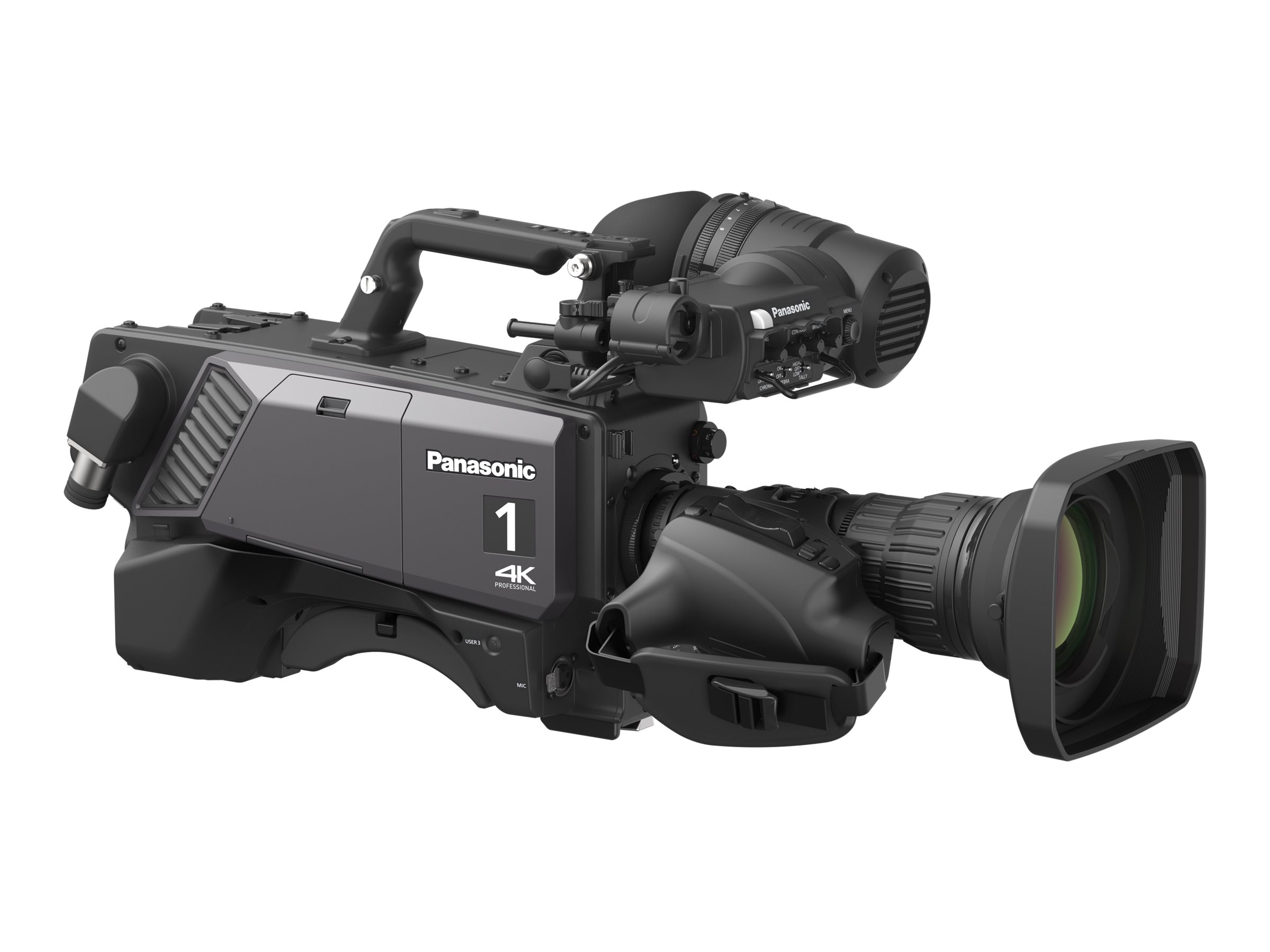

| Product Description | Panasonic AK-UCX100 - camcorder |
| Product Type | Camcorder - 4K |
| Sensor Resolution | 19.29 MP |
| Interface | 12G-SDI |
| Dimensions (WxDxH) | 6.2 in x 14.6 in x 10.5 in |
| Weight | 0.16 oz |
| General | |
| Product Type | Camcorder - 4K |
| Camcorder Type | Professional |
| Camcorder Sensor Resolution | 19.29 MP |
| Optical Sensor Type | CMOS |
| Frame Rate (Max Resolution) | 120 fps |
| Features | SMPTE Time Code |
| Auto Focus | TTL phase detection |
| Digital Video Format | JPEG XS |
| Sensitivity | F11 |
| Signal to Noise Ratio (typical) | 62 dB |
| Auto Focus Features | Manual Focus Assist |
| Interface | 12G-SDI |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Operating | 0 - 85% RH |
| Lens System | |
| Lens Mounting Type | 2/3" bayonet |
| Memory / Storage | |
| Image Storage | 2000 TVL |
| Video Capture | 3840 x 2160 - 59.94 fps ¦ 3840 x 2160 - 50 fps ¦ 3840 x 2160 - 29.97 fps ¦ 3840 x 2160 - 25 fps ¦ 3840 x 2160 - 23.98 fps ¦ 1920 x 1080 - 59.94 fps ¦ 1920 x 1080 - 50 fps ¦ 1920 x 1080 - 29.97 fps ¦ 1920 x 1080 - 25 fps ¦ 1920 x 1080 - 23.98 fps |
| Additional Features | |
| Low Lux / Night Mode | Yes |
| Additional Features | High Dynamic Range (HDR), Hybrid Log-Gamma (HLG) recording, NDI control, Secure Reliable Transport (SRT) ready, SMPTE ST 2110 support, BT.2020 compatible, BT.709 compatible |
| Connections | |
| Connector Type | 2 x 12G-SDI output (BNC) ¦ Trunk output (BNC) ¦ Genlock input / teleprompter output (BNC) ¦ 3 x microphone (3 pin XLRF) ¦ 2 x intercom (4 pin XLR) ¦ Earphones (mini-phone stereo 3.5 mm) ¦ Optical output (tajimi) ¦ Lens control port (12 pin Hirose) ¦ 2 x transmitter input (SFP) ¦ 2 x VF output ¦ DC power input (4 pin XLR) ¦ Remote control (10-pin connector) ¦ DC power output (2 pin terminal block) ¦ LAN (RJ-45) ¦ USB 3.0 Host (24 pin USB-C) ¦ External switching |
| Dimensions & Weight | |
| Width | 6.2 in |
| Depth | 14.6 in |
| Height | 10.5 in |
| Weight | 0.16 oz |
| Exposure & White Balance | |
| Max Shutter Speed | 1/2000 sec |
| Min Shutter Speed | 1/48 sec |
| Gain Selection | -6 dB, -3 dB, 0 dB, +3 dB, +6 dB, + 9 dB, +12 dB, +15 dB, +18 dB |
| Built-in ND Filters | 1/2, 1/4, 1/16, 1/64 |
