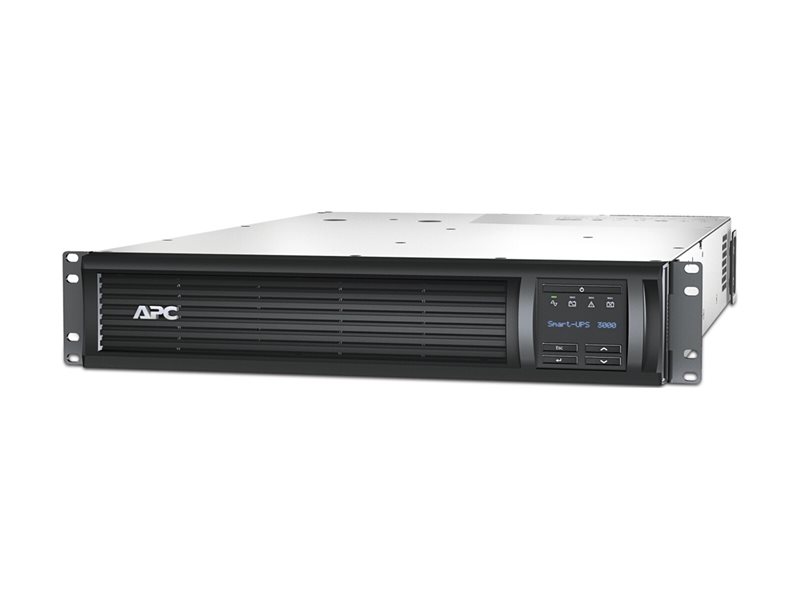

UPS (rack-mountable) - line interactive, 6 NEMA 5-15R+2 NEMA 5-20R outlets, SmartConnect port+SmartSlot, AVR, LCD - AC 120 V - 2700 Watt - 2880 VA - 1-phase - USB, Ethernet, serial - output connectors: 6 - 2U - black - APC Take-Back - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | APC Smart-UPS - UPS - line interactive, 6 NEMA 5-15R+2 NEMA 5-20R outlets, SmartConnect port+SmartSlot, AVR, LCD - 2700 watt - 2880 VA - TAA Compliant |
| Device Type | UPS - rack-mountable |
| Rack Size | 2U |
| Weight | 97.62 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Power Capacity | 2700 watt / 2880 VA |
| Input Connectors | 1 x power NEMA L5-30P |
| Output connectors | 6 x power NEMA 5-15R |
| Battery | Lead acid |
| Batteries Qty | 1 |
| Run Time (Up To) | 2.82 min at full load |
| Networking | USB, Ethernet, serial |
| Color | Black |
| Pricing Type | APC Take-Back |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17 in x 26.9 in x 3.4 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x serial - RJ-45 ¦ 1 x EPO (emergency power off) ¦ SmartConnect |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years ¦ Limited warranty - battery - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 8 ft |
| Equipment Protection Value | 150000 US Dollars |
| Features | Automatic Voltage Regulation (AVR), LCD display |
| Compliant Standards | RoHS, REACH SvHC, cULus |
| Pricing Type | APC Take-Back |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, Ethernet, serial |
| Software / System Requirements | |
| Software Included | SmartConnect |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dBA |
| Battery | |
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 2.82 min at full load ¦ 10.8 min at half load |
| Recharge Time | 3 hours |
| Transfer Time | 10 ms |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 6 x power NEMA 5-15R |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Capacity | 2700 watt / 2880 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 459 joules |
| Efficiency | 98.3% at 100% Load, 98.6% at 75% Load, 98.8% at 50% Load, 98.8% at 25% Load |
| Total Harmonic Distortion (THD) | 5 % |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 26.9 in |
| Height | 3.4 in |
| Weight | 97.62 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 38.6 in |
| Shipping Depth | 23.6 in |
| Shipping Height | 10 in |
| Shipping Weight | 113.98 lbs |
| Sustainability Information | |
| ENERGY STAR | Yes |
