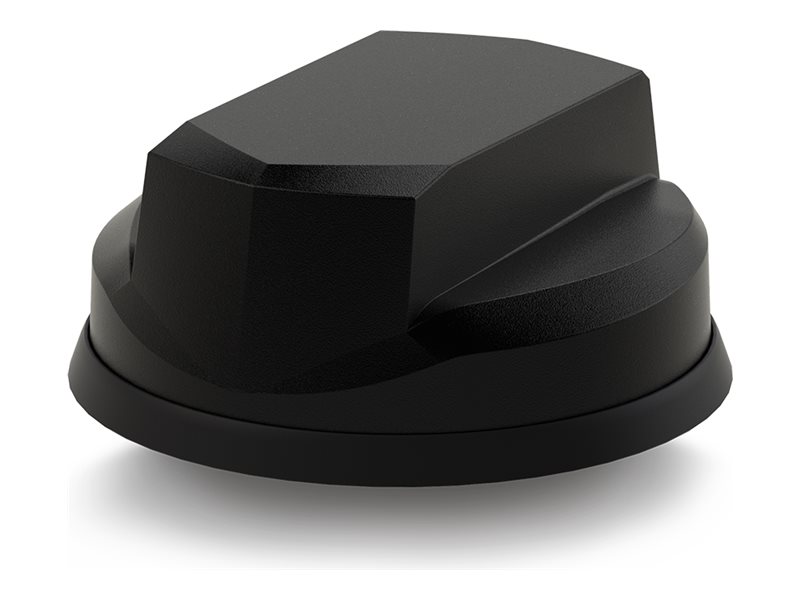

Antenna - navigation, cellular, Wi-Fi - omni-directional - panel mountable
| Main Specifications | |
|---|---|
| Product Description | Panorama Antennas LG-IN2457 - antenna |
| Device Type | Antenna - active (GPS) |
| Intended For | Navigation, cellular, Wi-Fi |
| Antenna Placing / Mounting | Panel mountable |
| Dimensions (WxDxH) | 7.1 in x 7.1 in x 3 in |
| Color | Black |
| Compatibility | GPS, GNSS, LTE, 2G, 3G, 4G, 5G, Wi-Fi |
| Frequency Range | 2.4 GHz, 5.15 - 7.125 GHz, 1562 - 1612 MHz, 617 - 960 MHz, 1710 - 3800 MHz, 4900 - 6000 MHz |
| Directivity | Omni-directional |
| Amplifier | 26dB |
| Features | IP69K, 2x2 MiMo |
| General | |
| Product Type | Antenna - active (GPS) |
| Intended For | Navigation, cellular, Wi-Fi |
| Antenna Placing / Mounting | Panel mountable |
| Width | 7.1 in |
| Depth | 7.1 in |
| Height | 3 in |
| Color | Black |
| Miscellaneous | |
| Cables Included | 5 x antenna cable - 19.7 ft |
| Antenna | |
| Compatibility | GPS, GNSS, LTE, 2G, 3G, 4G, 5G, Wi-Fi |
| Frequency Range | 2.4 GHz, 5.15 - 7.125 GHz, 1562 - 1612 MHz, 617 - 960 MHz, 1710 - 3800 MHz, 4900 - 6000 MHz |
| Impedance | 50 ohm |
| Antenna Amplifier Gain | 26dB |
| Max Power | 20 watt |
| Directivity | Omni-directional |
| Features | IP69K, 2x2 MiMo |
| Connector Provided | |
| Type | 2 x cellular antenna - SMA ¦ GPS antenna - SMA (male) ¦ 2 x Wi-Fi antenna - RP-SMA |
