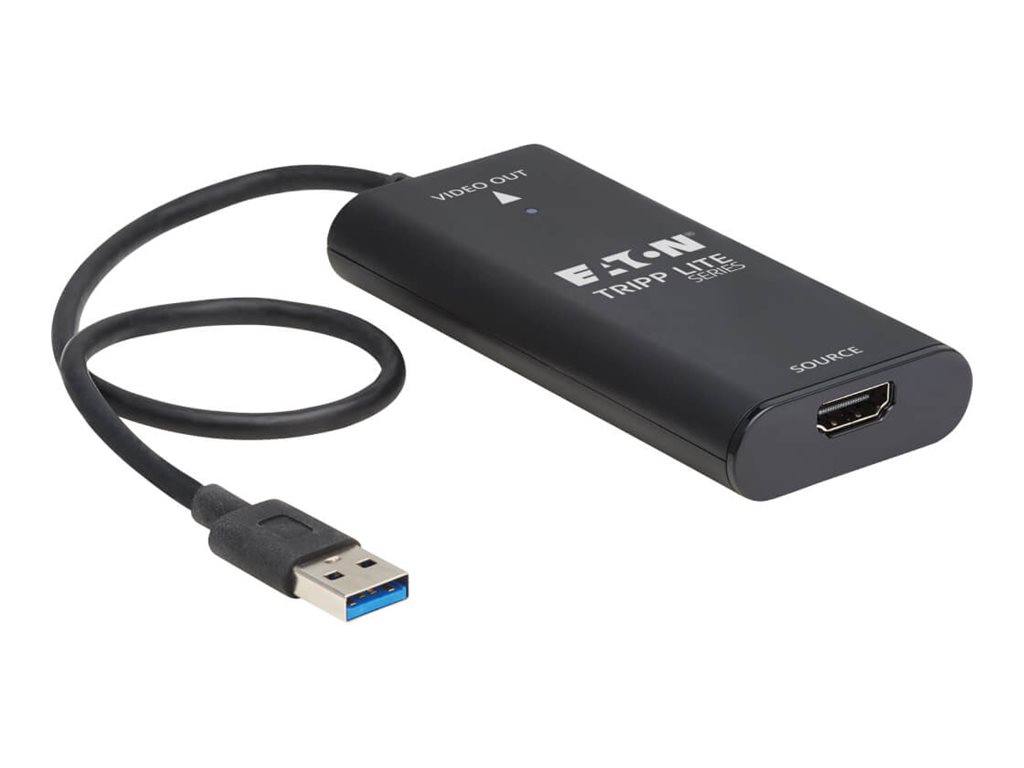

Video capture adapter - USB 3.2 Gen 1 - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series HDMI to USB Video Capture Adapter, 4K 60 Hz, USB 3.2 Gen 1, TAA - video capture adapter - USB 3.2 Gen 1 - TAA Compliant |
| Device Type | Video capture adapter |
| Interface Type | USB 3.2 Gen 1 |
| Dimensions (WxDxH) | 1.9 in x 3.9 in x 0.6 in |
| Color | Black |
| Video Input | HDMI input |
| Video Modes | 4K/60p |
| Video Compression Format | YUV 4:4:4, YUV 4:2:2 |
| Digital Video Format | MJPEG |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Audio Input Support | Standard |
| Features | High Dynamic Range (HDR), 3D support, USB Video Device Class (UVC) mode, USB audio class (UAC), 36-bit Deep Color support |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video capture adapter |
| Interface Type | USB 3.2 Gen 1 |
| Width | 1.9 in |
| Depth | 3.9 in |
| Height | 0.6 in |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x audio / video - HDMI input - 19 pin HDMI Type A |
| Connections | 1 x USB 3.2 Gen 1 - 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable - integrated - 1 ft |
| Device Features | USB powered |
| Compliant Standards | HDCP 2.3, EDID compatible, DSC, FCC, UKCA, WEEE, Plug and Play, RoHS |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 40% RH (non-condensing) |
| Video | |
| Interface Type | HDMI input |
| Video Modes | 4K/60p |
| Video Compression Format | YUV 4:4:4, YUV 4:2:2 |
| Digital Video Format | MJPEG |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Audio Input Support | Standard |
| Features | High Dynamic Range (HDR), 3D support, USB Video Device Class (UVC) mode, USB audio class (UAC), 36-bit Deep Color support |
