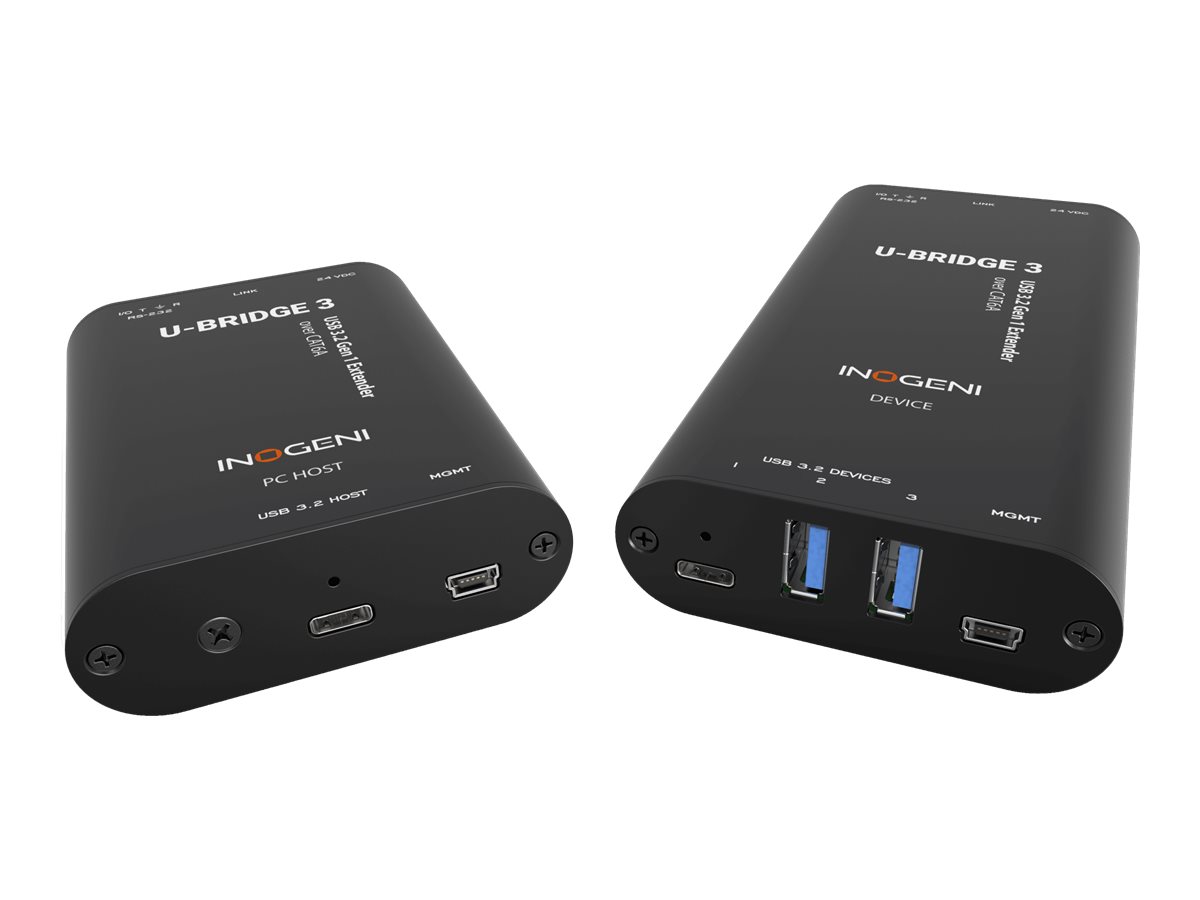

USB extender - USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1 - over CAT 6a - up to 328 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | INOGENI U-BRIDGE 3 - USB extender - USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1 - TAA Compliant |
| Device Type | USB extender |
| Form Factor | External |
| Localization | Australia, Europe, Japan, New Zealand, North America, United Kingdom |
| Data Transfer Rate | 5 Gbps |
| Data Link Protocol | USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1 |
| Transmission Medium | CAT 6a |
| Max Transfer Distance | 328 ft |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 2.8 in x 3.8 in x 0.9 in |
| Weight | 6 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | USB extender |
| Form Factor | External |
| Localization | Australia, Europe, Japan, New Zealand, North America, United Kingdom |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.2 Gen 1 (host) - Type C female ¦ 1 x mini-USB 2.0 (management / host) female ¦ 1 x HDBaseT (host) - RJ-45 female ¦ 1 x RS-232 (host) - terminal block ¦ 1 x USB 3.2 Gen 1 (device) - Type C female ¦ 2 x USB 3.2 Gen 1 (device) - USB type A female ¦ 1 x mini-USB 2.0 (management / host) ¦ 1 x HDBaseT (device) - RJ-45 female ¦ 1 x RS-232 - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | 2 mounting brackets, 2 mounting clips, 2 terminal blocks, 4 screws |
| Mounting Kit | Included |
| Compliant Standards | FCC, UKCA, RoHS, IEC 62368, SOV, RCM, NOM, CB, UL, TUV, EMC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 2.0, USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1 |
| Data Transfer Rate | 5 Gbps |
| Max Transfer Distance | 328 ft |
| Features | Anodized aluminum housing, RS-232 passthrough |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 3.8 in |
| Height | 0.9 in |
| Weight | 6 oz |
| Dimensions (WxDxH) / Weight Details | Host: 2.8 in x 3.8 in x 0.9 in / 6 oz ¦ Extender: 2.8 in x 5.4 in x 0.9 in / 7.4 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.6 in |
| Shipping Depth | 9.8 in |
| Shipping Height | 3.1 in |
| Shipping Weight | 2.65 lbs |
