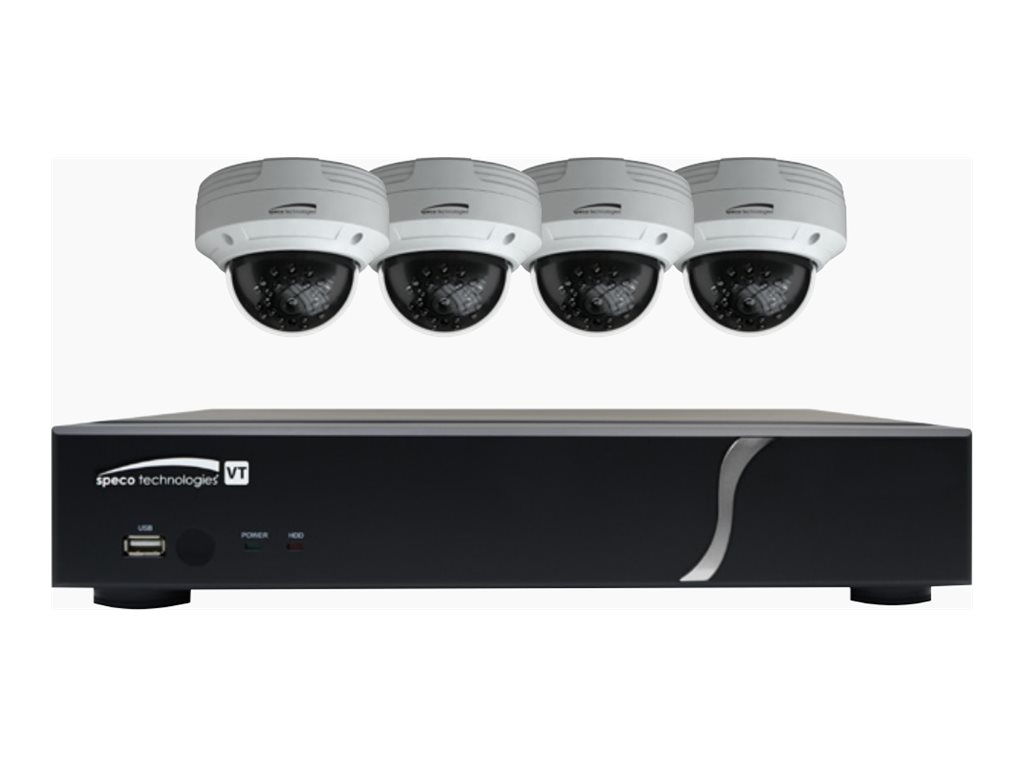

DVR + camera(s) - wired (Ethernet 10Base-T/100Base-T) - 4 channels - quadplex - 1 x 1 TB - 4 camera(s) - dome - CMOS
| Main Specifications | |
|---|---|
| Product Description | Speco ZIPT4D1 - DVR + camera(s) - wired (Ethernet 10Base-T/100Base-T) |
| System | DVR + camera(s) - wired - Ethernet 10Base-T/100Base-T |
| Security DVR | Quadplex - 4 channels |
| Hard Drive | 1 x 1 TB |
| Camera | 4 cameras - dome - NTSC/PAL - night vision |
| General | |
| System | DVR + camera(s) - wired |
| Network Interface | Ethernet 10Base-T/100Base-T |
| Features | 1080p HD video, 2-way audio, S.M.A.R.T. technology, password protected, weather-resistant, Daylight Savings (DLS), e-mail notifications, NTP support |
| Package Content | 4 cameras, DVR, remote control, mouse |
| Hard Drive | |
| Quantity Installed | 1 |
| Quantity Supported | 2 |
| Capacity | 1 TB |
| Connections | |
| Video Input Ports | HD-TVI x 4 |
| Video Output Ports | HDMI x 1, VGA x 1, CVBS x 1 |
| Alarm Ports | Alarm input x 4, alarm output x 1 |
| Camera Control Interface (PTZ) | RS-485 |
| Network Port | 10/100Base-T |
| Other Ports | USB x 2 |
| Dimensions & Weight | |
| Details | DVR: 13.4 in x 10.3 in x 2.5 in - 3.3 lbs ¦ Camera: 4.5 in x 4.5 in x 5 in - 17.6 oz |
| Security DVR | |
| Video Channels | 4 |
| Operation Mode | Quadplex |
| Frame Rate (Playback) | 15 fps, 30 fps |
| Frame Rate (Record) | 120 fps, 60 fps |
| Image Resolution | 1920x1080, 1280x720, 1280x1024, 1024x768 |
| Compression Format | H.264, G.711 |
| Record Events | Motion detection, continuous, scheduled, sensor, manual |
| Features | Digital Deterrent, Smart Search |
| Cameras | |
| Quantity | 4 cameras |
| Camera Type | Dome |
| Sensor | CMOS - 1/3" - 2 Megapixel |
| TV System | NTSC/PAL |
| Sensitivity (lux) | 0.1 |
| Night Vision | Yes |
| Infrared LEDs | 24 |
| Voltage | DC 12 V |
| Current Consumption | 400 mA |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 104 °F |
| Compliant Standards | IP66 |
