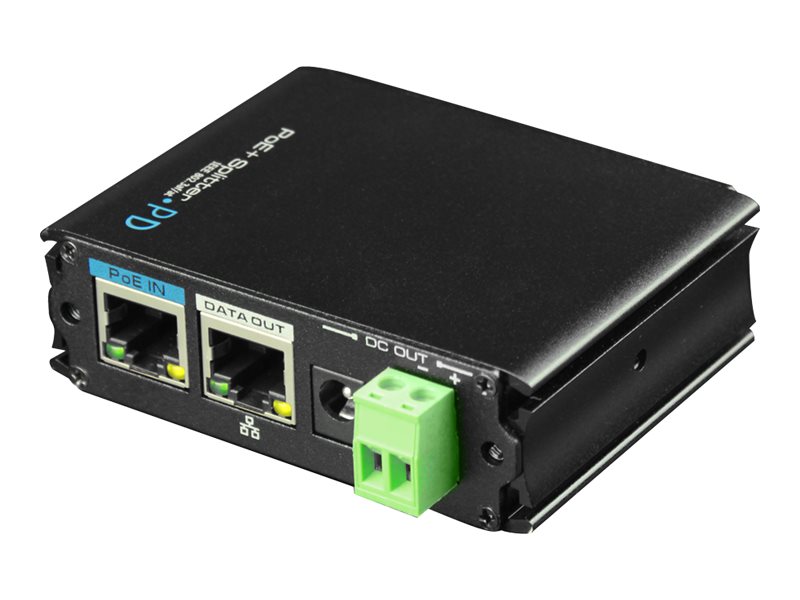

PoE splitter - 802.3at/af - 36 - 60 V - 30 watt - output connectors: 1
| Main Specifications | |
|---|---|
| Product Description | Speco POESPL - PoE splitter - 802.3at/af - 30 watt |
| Device Type | PoE splitter - external |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 6.24 oz |
| Input Voltage | 36 - 60 V |
| Output Voltage | 12/24 V |
| Power Capacity | 30 watt |
| Input Connectors | 1 x RJ-45 |
| Output connectors | 1 x 2 pin terminal block |
| Dimensions (WxDxH) | 2.4 in x 3.2 in x 1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | PoE splitter - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af, NDAA Section 889 Part B |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | 36 - 60 V |
| Input Connectors | 1 x RJ-45 |
| Power Output Connectors Details | 1 x 2 pin terminal block |
| Output Voltage | 12/24 V |
| Power Capacity | 30 watt |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 3.2 in |
| Height | 1 in |
| Weight | 6.24 oz |
