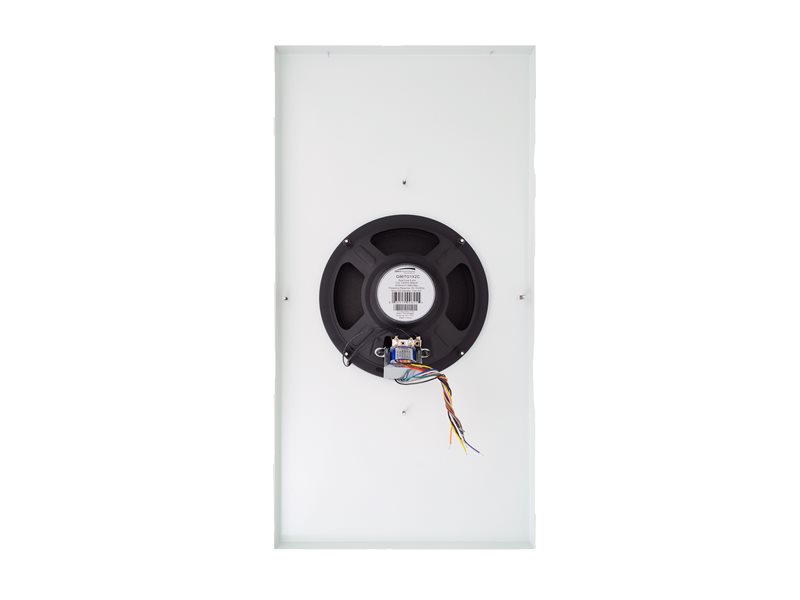

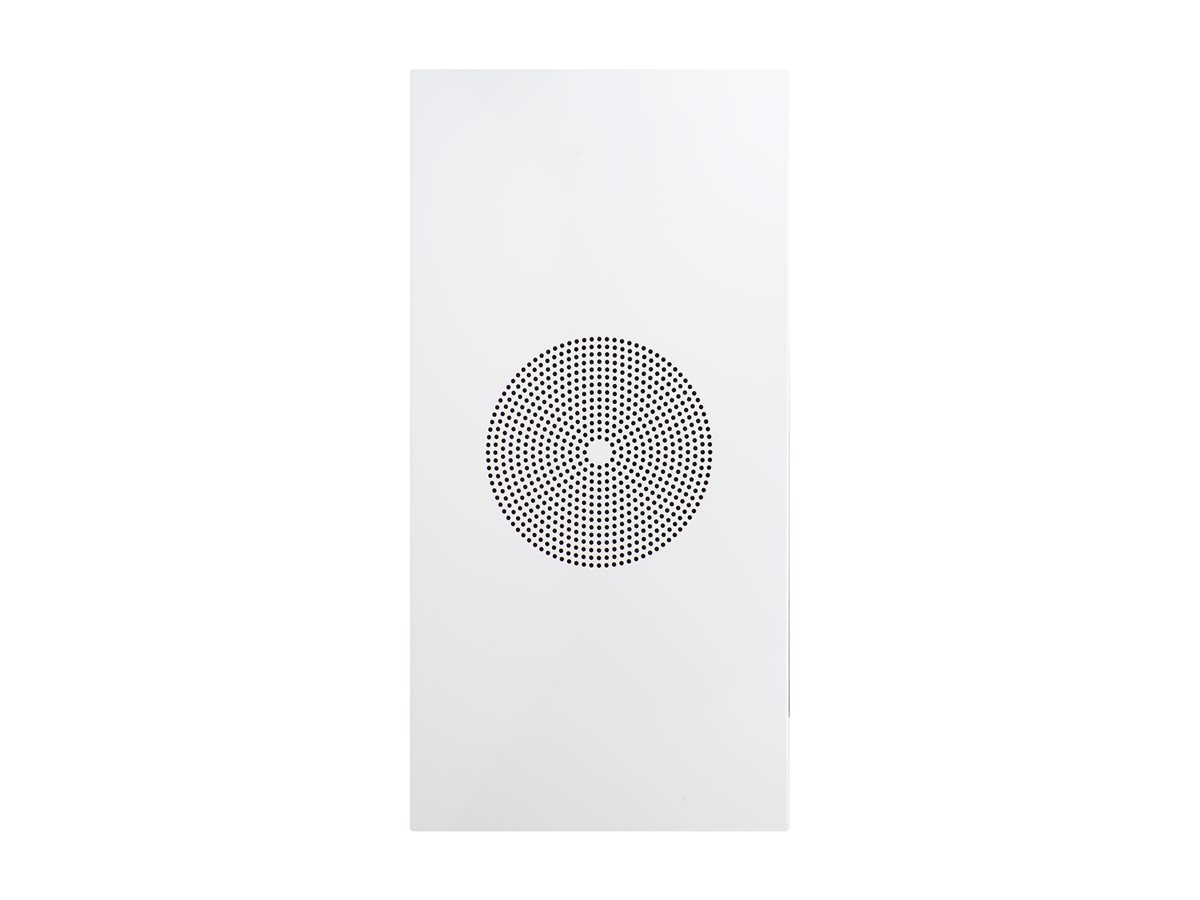

Speaker - 10 watt - 2-way - dual cone - off-white (grille color - white)
| Main Specifications | |
|---|---|
| Product Description | Speco 86 Series G86TG1X2 - speaker |
| Product Type | Speaker |
| Speaker Type | Dual cone - 2-way - passive |
| Continuous Power | 10 watt |
| Peak Power | 15 watt |
| Frequency Response | 85 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Integrated Transformer | 25V/70V operation |
| Color | Off-white |
| Dimensions (WxDxH) | 1 in x 3.5 in x 2 in |
| Weight | 5.8 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Product Type | Speaker |
| Enclosure Color | Off-white |
| Grille Color | White |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA Section 889 Part B |
| Dimensions & Weight | |
| Width | 1 in |
| Depth | 3.5 in |
| Height | 2 in |
| Weight | 5.8 lbs |
| Speaker System | |
| Speaker Type | Dual cone - 2-way - passive |
| Continuous Power | 10 watt |
| Continuous Power Details | RMS |
| Peak Power | 15 watt |
| Frequency Response | 85 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 100 dB |
| Sensitivity | 90 dB |
| Magnet Type | Ferrite |
| Integrated Transformer | 25V/70V operation |
| Coverage | 120° conical |
| Recommended Placing | In-ceiling mounted |
| Magnet Weight | 5 oz |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 8" - paper ¦ Speaker: tweeter driver - 0.8" - Dual Cone |
| Cutout & Mounting Dimensions | |
| Diameter | 11.3 in |
