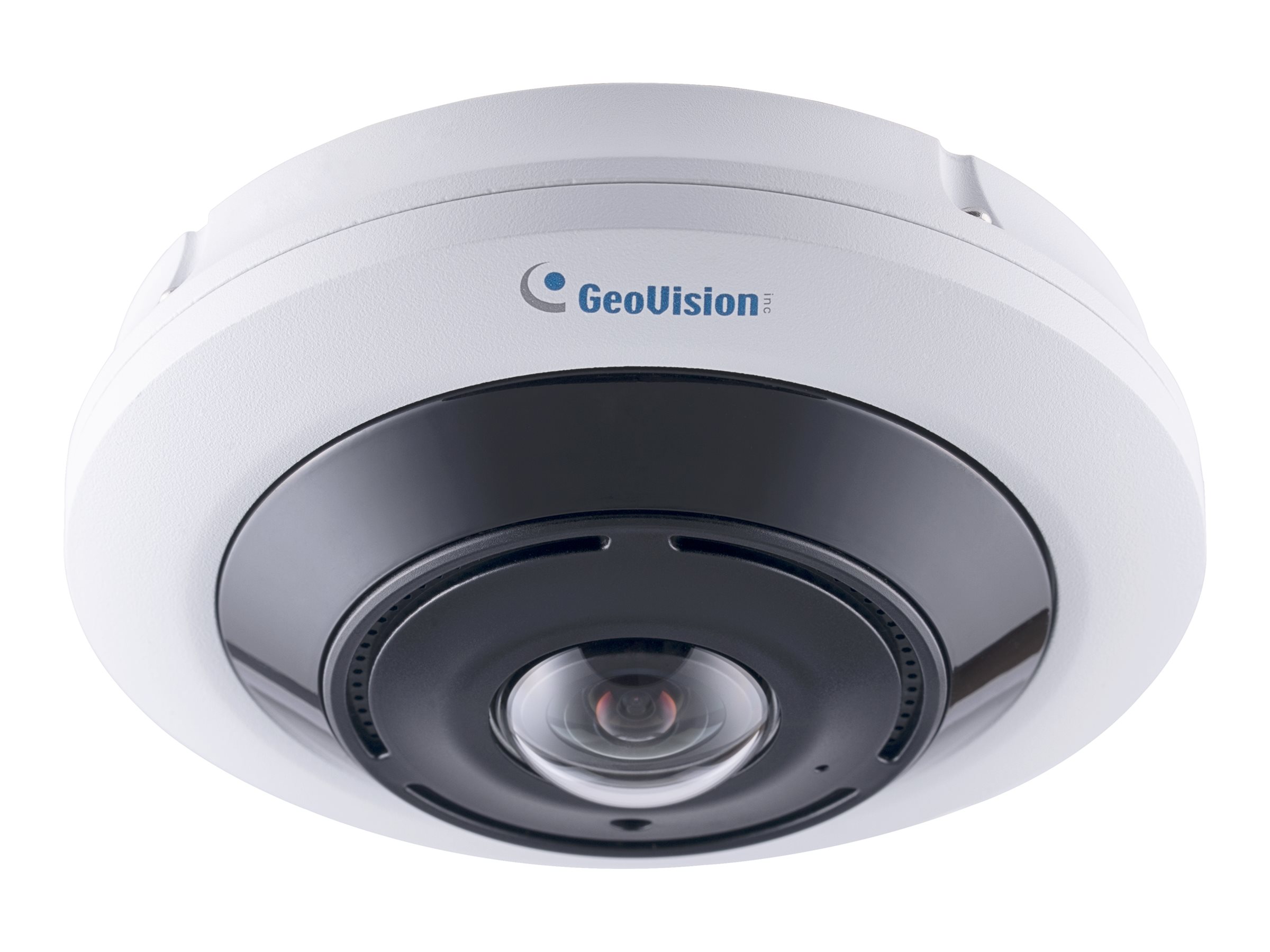

Network surveillance camera - fisheye - outdoor - ingress protection - color (Day&Night) - 12 MP - 3840 x 3000 - M12 mount - fixed iris - fixed focal - audio - LAN 10/100 - H.264, H.265 - DC 12 V / PoE
| Main Specifications | |
|---|---|
| Product Description | GeoVision GV-RFER12700 - network surveillance camera - fisheye |
| Device Type | Network surveillance camera - fixed - fisheye - outdoor - ingress protection |
| Audio | Yes: two-way audio capability, built-in microphone, built-in speaker |
| Camera Mount Type | Wall mount, ceiling mount |
| Dimensions (WxDxH) | 4.7 in x 4.7 in x 2.2 in |
| Weight | 14.11 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 3840 x 3000 |
| Frame Rate (max) | 25 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.3" - 12 MP |
| Minimum Illumination | 0.03 lux - color - F2.0 - AGC on ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 1.6 mm |
| Lens Mounting | M12 mount |
| Focus Adjustment | Fixed focus |
| Lens Iris | F/2.0 - fixed iris |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE |
| Features | 802.1x authentication, Intelligent IR Technology, Removable IR-Cut Filter, Wide Dynamic Range (WDR), Privacy Mask Function, tampering alarm, text overlay, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, auto white balance, manual white balance, auto gain control, manual gain control, 39.5 dB signal-to-noise ratio, DORI coverage, triple video stream, 41.3 m detect distance, 8.3m recognize distance, 16.5 m observe distance, 4.1m identify distance, e-mail alerts, FTP alerts, brightness control, 180° image rotation, 270° image rotation, 3D Noise Reduction Technology, 90° image rotation, contrast control, display mode, exposure control, image flip, image mirror, saturation control, sharpness control, 360° Panorama |
| Manufacturer Warranty | 2-year warranty |
| Environmental Parameters (operating) | -31 °F - 140 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone, built-in speaker |
| Audio Formats | G.711 |
| Form Factor | Fisheye |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 4.7 in |
| Depth | 4.7 in |
| Height | 2.2 in |
| Weight | 14.11 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone ¦ Audio line out ¦ Digital input/output - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC UHS-I Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Waterproof rubber set, screw kit, drill hole template |
| Compliant Standards | IEEE 802.1x, IP66, FCC, RoHS, IEEE 802.3af |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | 9.6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -31 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - ingress protection |
| Digital Video Format | H.264, H.265 |
| Max Digital Video Resolution | 3840 x 3000 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/30000 sec |
| Minimum Illumination | 0.03 lux - color - F2.0 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | 3 |
| Infrared Distance | 33 ft |
| Video Capture | 3840 x 3000 @ 15 fps ¦ 3000 x 3000 @ 25 fps ¦ 2560 x 2560 @ 25 fps ¦ 2160 x 2160 @ 25 fps ¦ 1520 x 1520 @ 25 fps ¦ 1088 x 1088 @ 25 fps ¦ 720 x 720 @ 25 fps ¦ 480 x 480 @ 25 fps ¦ 1280 x 960 @ 15 fps ¦ 640 x 480 @ 15 fps |
| Features | 802.1x authentication, Intelligent IR Technology, Removable IR-Cut Filter, Wide Dynamic Range (WDR), Privacy Mask Function, tampering alarm, text overlay, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, auto white balance, manual white balance, auto gain control, manual gain control, 39.5 dB signal-to-noise ratio, DORI coverage, triple video stream, 41.3 m detect distance, 8.3m recognize distance, 16.5 m observe distance, 4.1m identify distance, e-mail alerts, FTP alerts, brightness control, 180° image rotation, 270° image rotation, 3D Noise Reduction Technology, 90° image rotation, contrast control, display mode, exposure control, image flip, image mirror, saturation control, sharpness control, 360° Panorama |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 1.6 mm |
| Lens Iris | F/2.0 fixed iris |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 180 |
| Image Sensor | |
| Type | 12 MP Progressive Scan CMOS 1/2.3" |
| Total Pixels | 3840 x 3000 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, RTP, SMTP, SNMP, TCP, UPnP, RTSP |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
